headboard bracket installation guide (optional)
A 9/16" (14 mm) & 1/2" (13 mm) socket and crescent wrench are necessary to complete installation.

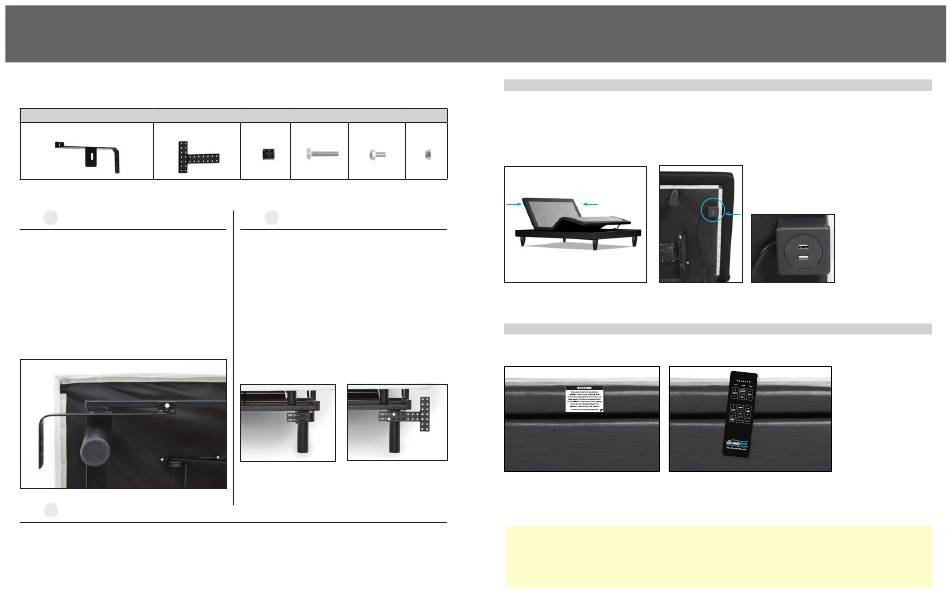

HEADBOARD BRACKET COMPONENTS
Headboard Bracket (2) T-Bracket (2)
STEP 1
a.) Align the hole in the bracket to the brass sleeve into
which the leg threads. Hold the bracket in place and
screw the leg into the base until it is snug. DO NOT
OVERTIGHTEN. Too much force may cause the leg
to spin freely.
b) Align the tab with the hole in the frame (located
towards the foot of the base) and use a short bolt
and nut to secure the bracket. Make sure the bolt is
tight.
STEP 3
You may now connect your headboard to the attachment plates using the remaining short bolts and nuts to
secure it to the brackets. The heads of the bolts will face outward. Use a 9/16" (14mm) socket and 1/2" (13mm)
wrench to tighten the bolts.
10
Spacer (2) Long Bolt (8) Short Bolt (10) Nut (18)
STEP 2
Attach the plastic spacer and T-Bracket.
a.) Measure the distance between the mounting
holes on the headboard and install the spacer and
attachment plate to accommodate the headboard.
b.) To install the plastic spacer and attachment plate,
you will need (2) long bolts and (2) nuts. Place the
spacer and attachment plate in the desired location
and slip the bolts through the holes with the head
of the bolt facing outward. Position the bolts
diagonally on the spacer. Use the 9/16" (14 mm)
socket and wrench to tighten the bolts.
usb and remote station
USB CHARGERS
USB charging connections are located on each side of the base, on the underside of the head section of the
platform. Charge two smart devices at the same time.
Voltage: 5V DC
Current: 2.5A (max 13 Watts)
MAGNETIC REMOTE HOLDER
Read and remove warning sticker located on top of the magnet before attaching the remote to the base.
This product contains Neodymium MAGNETS which may interfere with devices such as pacemakers, ICD's
and any other device sensitive to magnetic fields. It is STRONGLY recommended that owners of such medical
devices consult their physician prior to using this product.
WARNING:
