Luxury base
PART LIST
Before discarding the packing materials, ensure all the
parts are accounted for. Some parts may be attached to
the base or inside boxes. Please inspect carefully.
Long Bolts (2)
STEP 1
Always use two people when setting up, moving or flipping
base.
Push and align the head and foot sections together. Make sure to
align the leg thread holes with top frame as seen in Fig. A and side
hole as seen in Fig. B.
Fig. A
STEP 2
Once aligned, slide long bolt through the side hole shown in Fig.
C and Fig. D. Secure bolt using one of the washers and wing
nuts provided. Repeat this step for the other side of the base.
Fig. C
(2) Washers
(2) Wing Nuts

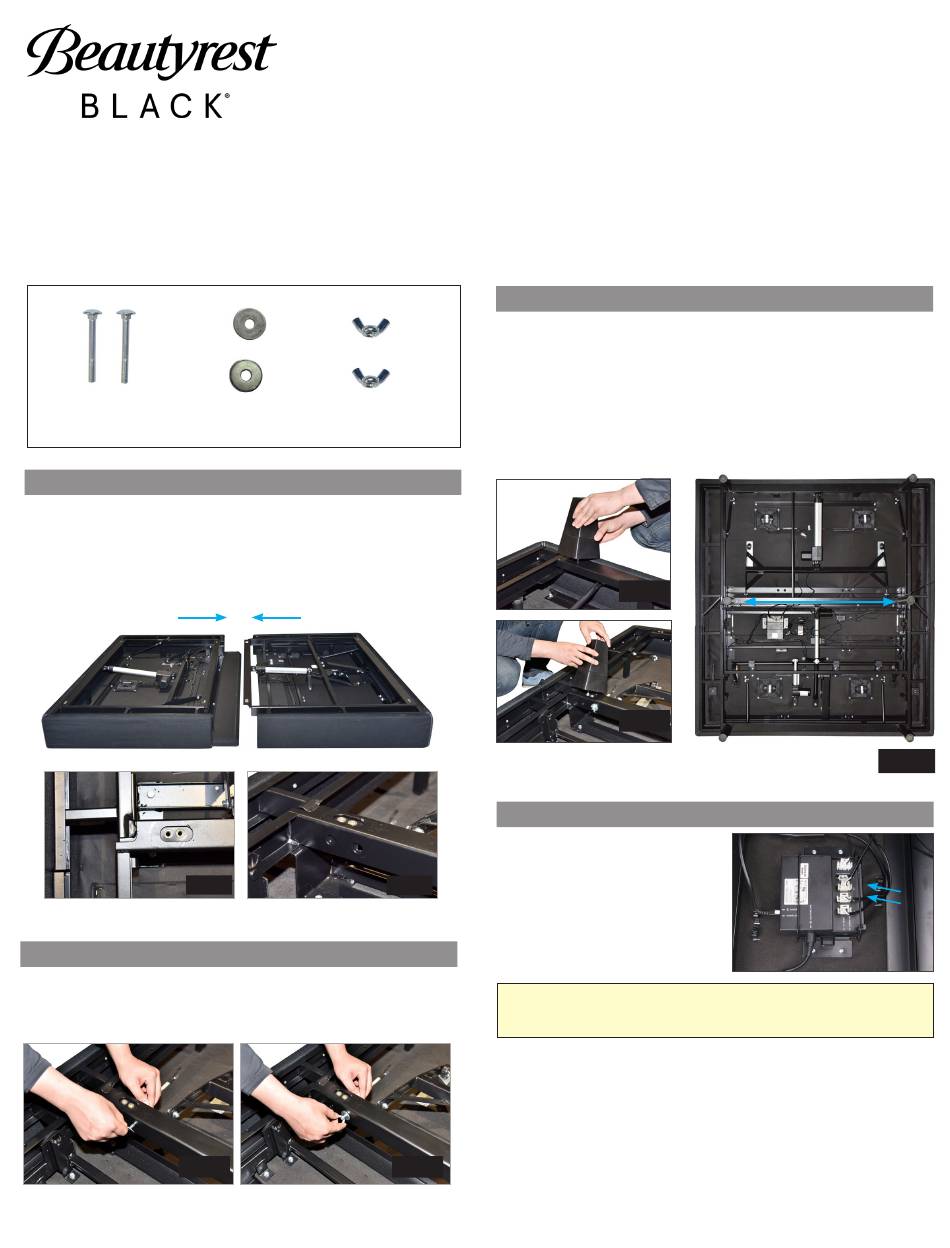

INSTALLATION GUIDE
STEP 3
Attach legs by screwing them into leg threads. Do this on all four
corners and on diagonal sides in the middle. Refer to
Fig. G. (If installing headboard brackets, please refer to owner's
manual.)
Carefully flip base over onto its legs.
Important: Two people are required to move bed base. Do not
drag frame across the floor or rest frame on its side, as excessive
pressure may damage legs.
STEP 4
Connect the foot motor and
foot massage cables to the
appropriate ports labeled on
Fig. B
the Control Box.
Basic setup is complete. Please refer to page 8, step 4 of the
owners's manual for additional setup instructions.
Fig. D
DIVIDED BASE
Fig. E
Fig. F
Fig. G
