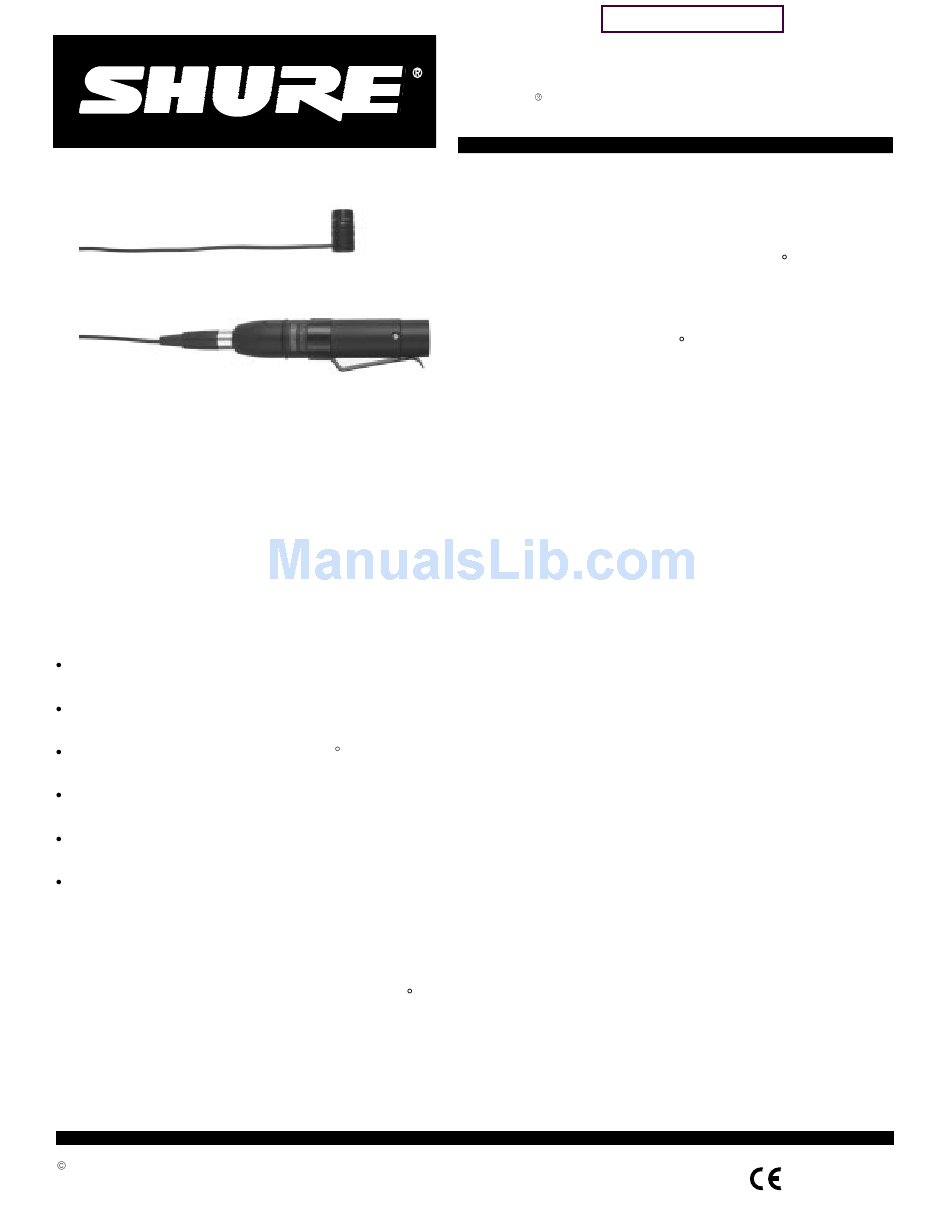

Shure Microflex MX100 Series User Manual

GENERAL
Models MX183, MX184, and MX185 are wired lavalier
electret condenser microphones designed for speech and
vocal pickup. They can be clipped to neckties, lapels, and
other articles of clothing. Interchangeable cartridges make it
possible to easily reconfigure microphone coverage as the
need arises.
FEATURES
Wide dynamic range and frequency response for accurate
sound reproduction across the audio spectrum
Interchangeable cartridges that provide an optimal choice
for each application
Rotatable tie-clip that pivots in 90
placement flexibility
Supplied snap-fit foam windscreen that controls breath
noise and stays on securely
Balanced, transformerless output for increased immunity to
noise over long cable runs
Supplied dual tie clip holds two microphones for dual
miking applications
APPLICATIONS
MX183 (Omnidirectional): Recommended for general
purpose sound reinforcement, recording, or remote monitoring
applications. Low handling noise. Pickup angle = 360 .
1997, Shure Brothers Incorporated
27B2832 (QE)
Shure Brothers Incorporated
222 Hartrey Avenue
Evanston IL 60202-3696 U.S.A.
Microflex MX100 Series Wired Lavalier Microphones
User's Guide
MX184 (Supercardioid): Recommended for
reinforcement applications requiring high rejection of ambient
noise and narrow pickup angle. Use of windscreen highly
recommended. Pickup angle (–3 dB) = 115 .
MX185 (Cardioid): Recommended for general purpose
sound reinforcement applications requiring good rejection of
ambient noise. Use of windscreen highly recommended.
Pickup angle (–3 dB) = 130 .
GENERAL RULES FOR LAVALIER MICROPHONE USE
1. Attach the lavalier microphone approximately 76 mm to
152 mm (3 to 6 in.) below the neckline for the best sound.
2. Do not cover the microphone with your hand or clothing.
3. Use one of the supplied windscreens to minimize wind
and breath noise.
4. If four or more microphones will be active at any given
time, use of an automatic mixer, such as the Shure
SCM810 or FP410, is recommended.
INSTALLATION
1. Insert the top of the microphone through tie clip loop from
below until tie clip loop snaps into place over the lower
groove on the microphone. Refer to Figure 1.
2. To install the snap–fit windscreen, press it down on the
microphone until it clicks into place inside the upper
groove on the microphone. The snap–fit windscreen
provides 30 dB of "pop" protection.
NOTE: The snap–fit windscreen can be removed by
increments for
spreading the slot in the plastic snap–fit ring.
To install the smaller foam windscreen, slip the
windscreen over the top of the microphone so that it
covers the side slots.The foam windscreen provides 5 to
10 dB of "pop" protection.
3. Attach the microphone approximately 76 mm to 152 mm
(3 to 6 in.) below the neckline.
CHANGING CARTRIDGES
The MX183, MX184, and MX185 microphones use
interchangeable cartridges. To remove the cartridge, unscrew it
from the microphone body, as shown in Figure 2. Install the
replacement cartridge by screwing it onto the microphone body.
