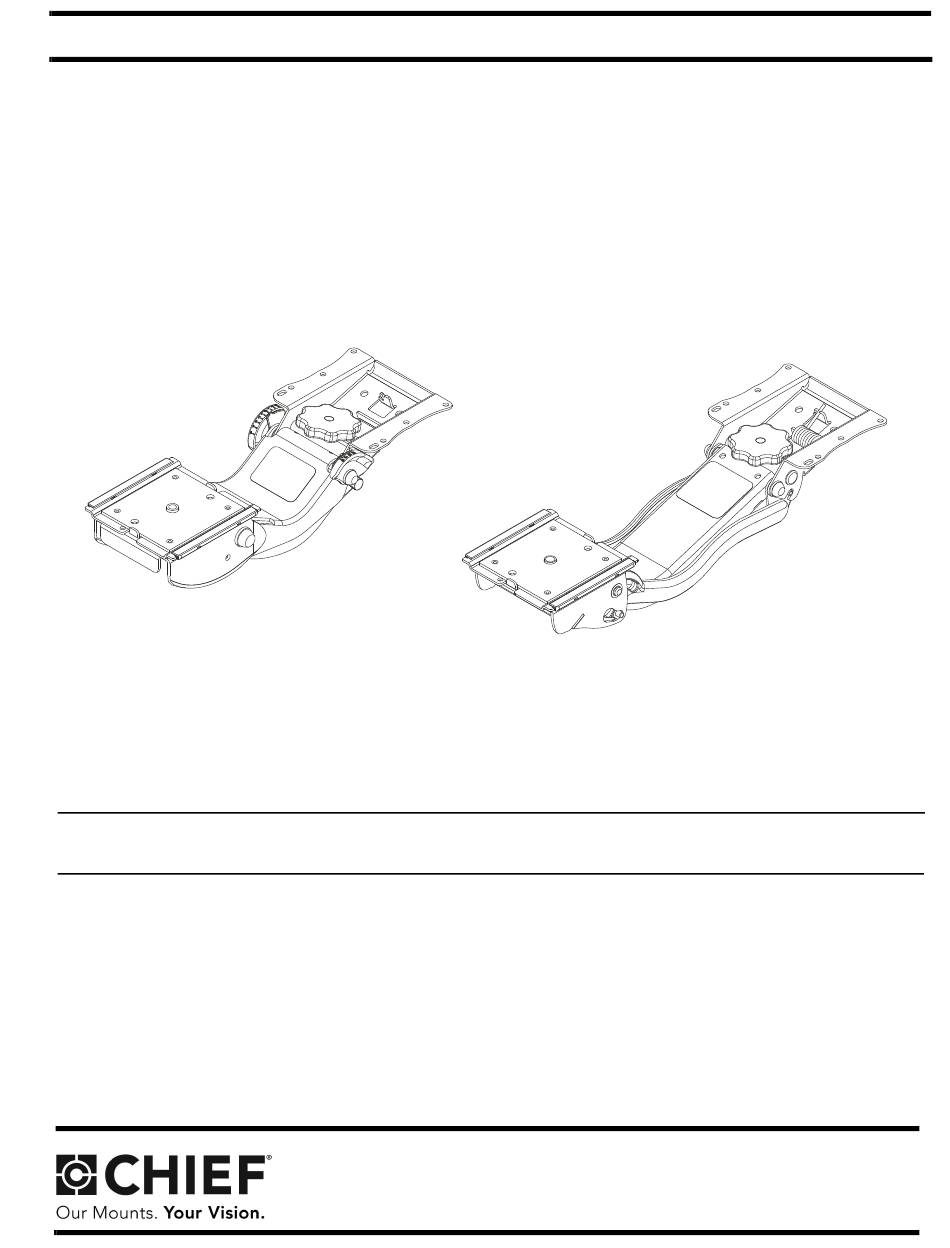

I N S T A L L A T I O N I N S T R U C T I O N S
(KBD-MINI-XXX)
(KBD-S2S-XXX)
Under Desk Keyboard Extension Mechanisms
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
KBD-MINI/S2S-XXX
Advertisement
Table of Contents
Related Manuals for CHIEF KBD-MINI Series
Summary of Contents for CHIEF KBD-MINI Series
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S (KBD-MINI-XXX) (KBD-S2S-XXX) Under Desk Keyboard Extension Mechanisms Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description...
-
Page 2: Important Safety Instructions
AN ACCESSORY is the secondary Chief this mounting system / accessory to support video equipment product which is attached to a primary Chief product, and may such as televisions or computer monitors. have a component attached or setting on it. - Page 3 Installation Instructions KBD-MINI/S2S-XXX DIMENSIONS KBD-MINI-XXX KBD-S2S-XXX...
- Page 4 KBD-MINI/S2S-XXX Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 5: Tools Required For Installation
Installation Instructions KBD-MINI/S2S-XXX TOOLS REQUIRED FOR INSTALLATION 1/8" (3.17mm) PARTS B (1) A (1) [Under-desk track] [Keyboard extension mechanism] E (1) C (1) D (20) [Track guard] [Bumper] F (2) #8 x 5/8" [Cable clip]... -
Page 6: Assembly And Installation
KBD-MINI/S2S-XXX Installation Instructions Assembly And Installation Slide keyboard mechanism (A) into under-desk track (B). (See Figure 3) Using under-desk track (B) as a template, mark and drill ten 1/8" diameter pilot holes. (See Figure 1) (KBD-MINI-XXX shown) x 10 1/8" x 10 bumper (C) Figure 3... -
Page 7: Cable Management
Installation Instructions KBD-MINI/S2S-XXX Adjustments Height Lift mechanism arm up or down until desired height is reached. (See Figure 5) Tilt Turn tilt knob to adjust keyboard tray tilt. (See Figure 5) (KBD-MINI-XXX shown) Figure 5 Cable Management Use cable clips (F) under keyboard tray or desk as desired to manage cables. - Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
