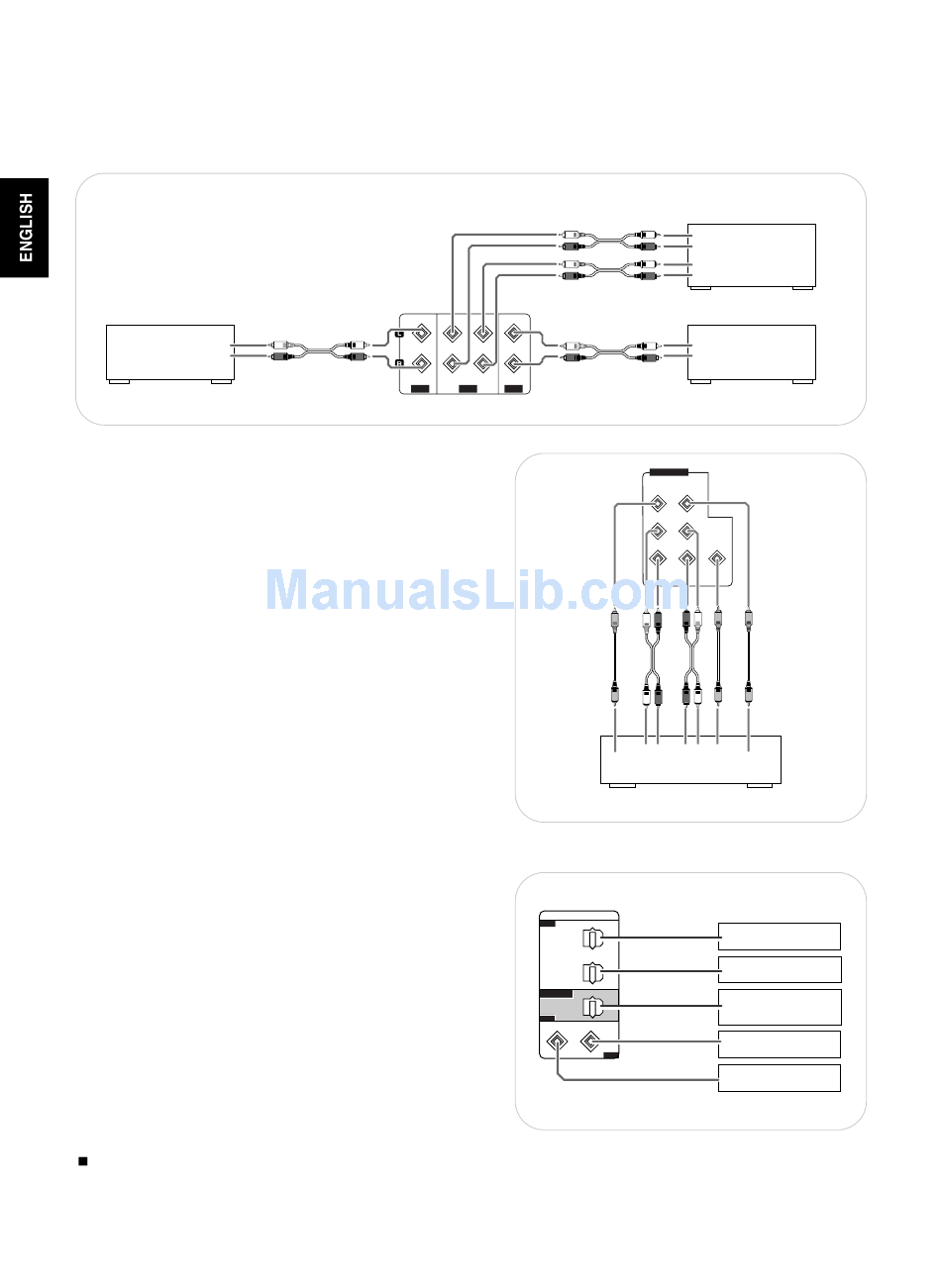

3. CONNECTING AUDIO COMPONENTS

• The AUX jacks may be connected to an additional audio component such as a CD player, a tape deck, etc.
CD
CD player
L
AUDIO
OUT
R
4. CONNECTING EXTERNAL INs
• Use these jacks to connect the corresponding outputs of a DVD
player or external decoder, etc. that has 6 or 7 channel analog
audio outputs
• In case of 6 channel outputs, do not connect this SURROUND
BACK input to your audio component.(For details, refer to the
operating instructions of the component to be connected.)
5. CONNECTING DIGITAL INs and OUT
• The OPTICAL and the COAXIAL DIGITAL OUTs of the
components that are connected to CD and VIDEO 1~ VIDEO 3 of
this unit can be connected to these DIGITAL INs.
• A digital input should be connected to the components such as a
CD player, LD player, DVD player, etc. capable of outputting DTS
Digital Surround, Dolby Digital or PCM format digital signals, etc.
• If the component with OPTICAL IN jack is connected to the
OPTICAL OUT jack of this unit, you can record the high quality
sound of CDs, etc. without degradation.
• For details, refer to the operating instructions of the component
connected.
• When making the COAXIAL DIGITAL connection, be sure to use a
75 Ω COAXIAL cord, not a conventional AUDIO cord.
• All of the commercially available optical fiber cords cannot be used
for the equipment. If there is an optical fiber cord which cannot be
connected to your equipment, consult your dealer or nearest
service organization.
Note :
• Be sure to make either a OPTICAL or a COAXIAL DIGITAL
connection on each component. (You don't need to do both.)
PLAY REC
CD TAPE AUX
DIGITAL
IN
OPT 1
OPT 2
OPTICAL
OUT
1 COAX
7
TAPE
Tape deck, MD recorder, etc.
L
AUDIO
OUT
R
L
AUDIO
IN
R
AUX
other audio component
L
AUDIO
OUT
R
EXTERNAL IN
SUB
CENTER WOOFER
SURROUND
FRONT SURROUND
BACK
L R R L BACK
CENTER SUBWOOFER
FRONT SURROUND
7 CH AUDIO OUTPUT
Decoder with 6 or 7 channel outputs
Component with
OPTICAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
Component such as an
MD recorder, CD recorder
with OPTICAL DIGITAL IN
2
Component with
COAXIAL DIGITAL OUT
IN
Component with
COAXIAL DIGITAL OUT
