RU device scanning is done. Note: Go to [Commissioning] page or [Management] page for device
scanning.
Select band to
check relative and
information.
NOTE: There are three statuses for PA Service: Normal, Recovery and Shutdown. If PA output power
or reflected power exceeds the threshold (32dBm for LRU, 39dBm for MRU), software will trigger
Recovery:

It will reset PA and then re-detect the PA output power and reflected power, if they are normal, the PA
Service Status will turn to Normal, if PA output power or reflected power is still over the threshold, PA
Service Status will turn to Recovery again.

If PA output power or reflected power is still over the threshold after six times of PA Recovery, PA
Service status will be Shutdown which will need to be reset manually.Reset at Management > PA
Reset.
Click on a specific band on the left side of RU Device page, the corresponding band information will show.
ENU STATUS : 1-0-0
USER MANUAL FOR COMFLEX-6900
Band
information
table

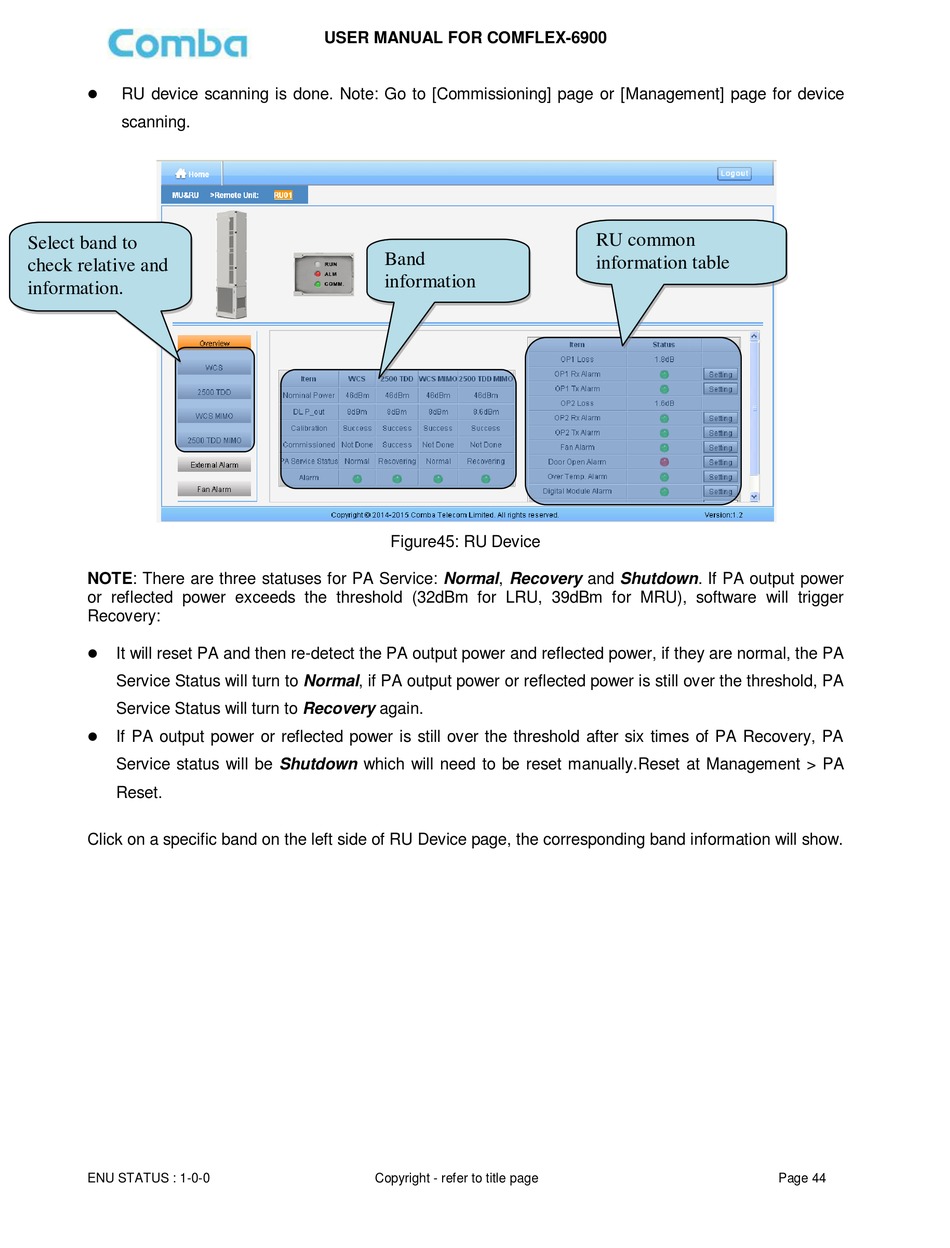

Figure45: RU Device
Copyright - refer to title page
RU common
information table
