USER MANUAL FOR COMFLEX-6900
3.5.5 RU CONNECTION
Step 1: Connect the OptiTap optical fiber to RU OP (optic) port and one of the OP port located on MU
FOU front panel.

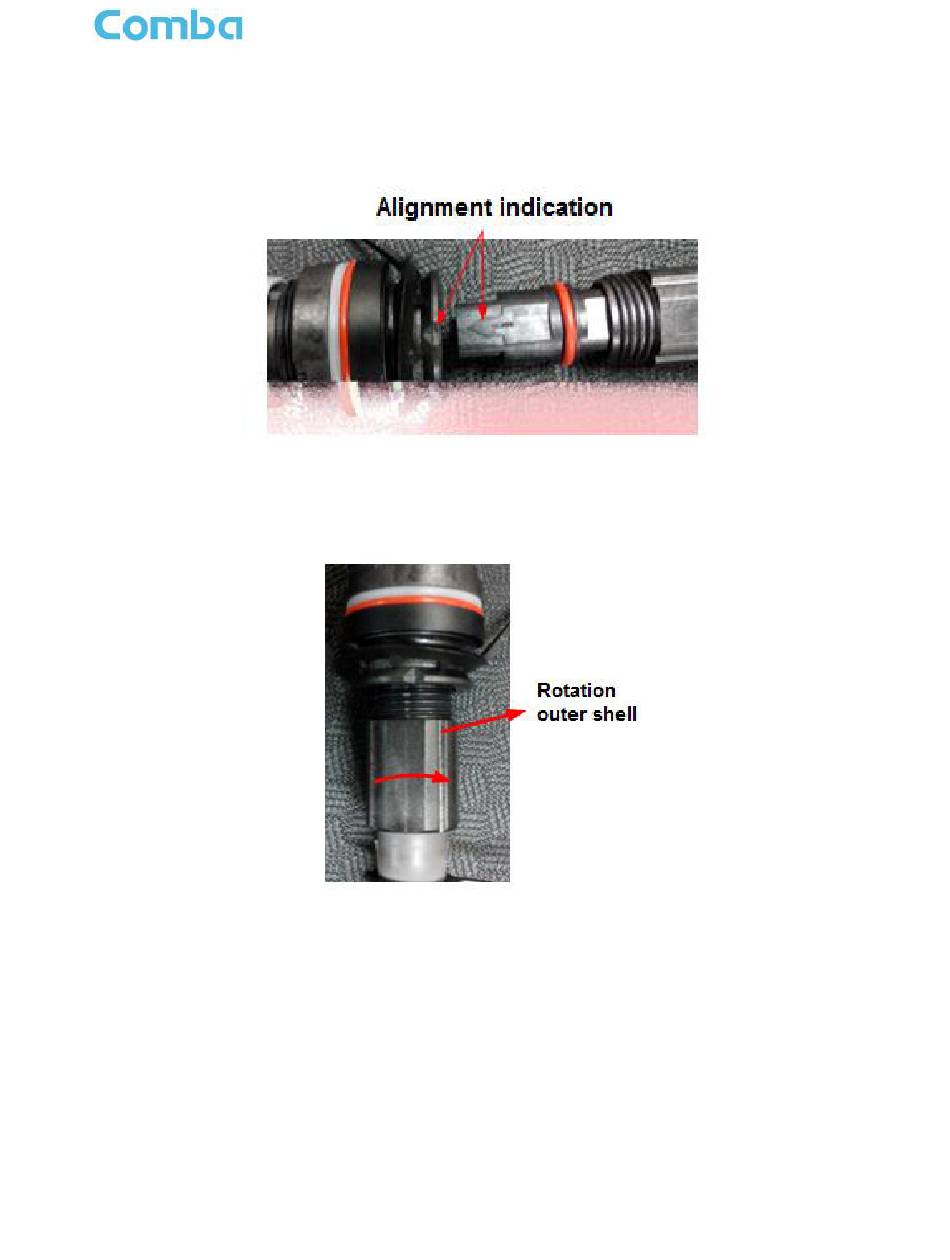

Figure 29: MU Power Connection (Rear Panel)
Step 2: Rotation outer shell to tighten the fiber conncetion.
Figure 30: Tighten Optical Fiber Connection
Step 3: Connect ANT port to a broadband antenna using 50Ohm coaxial cabel.
ENU STATUS : 1-0-0
