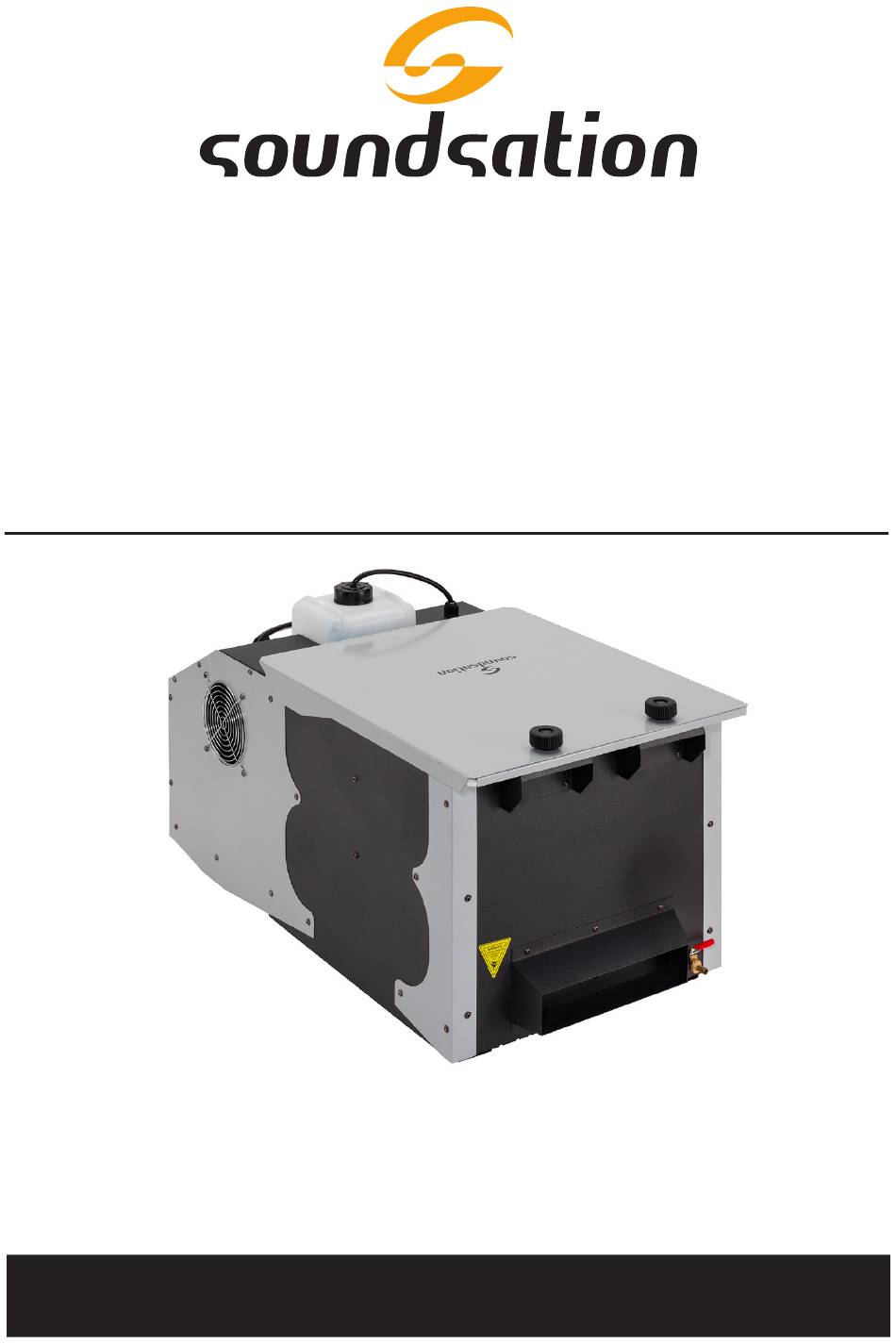

ZEPHIRO 1500 LOW fog 1500W LOW Fog Machine with DMX and Wireless Control USER MANUAL MANUALE utente Please read this manual carefully, and properly take care of it! Leggete questo manuale e conservatelo per future consultazioni!
Page 2
Dear customer, First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future.
Page 4
ENGLISH IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating condi- tions, which may be sufficient to constitute the risk of electric shock or death. The symbol is used in the service documentation to indicate that spe- cific component shall be replaced only by the component specified in that documentation for safety reasons.
ENGLISH be able to enter the room and vaporized fog needs to be able to be drained from the room. f Pay caution with the amount of fog used. f The use of fog is not hazardous for people or animals, if used with caution and proper ventilation.
ZEPHIRO 1500 LOW FOG is able to generate a fog volume of 283 m³/min and cover an area of 60 m² thanks to a 1500 watt heating system, a powerful pump and a large tank...
ENGLISH ZEPHIRO 1500 LOW fog User manual 4. REAR PANEL 1500W LOW Fog Machine with DMX and Wireless Control DMX CH SETUP DMX512 DMX512 3-Pin 5-Pin POWER 230Vac-50Hz Fuse F10A-250V On/off switch Power inlet (IEC connector) Fuse DMX 3-Pin XLR Input...
ENGLISH ZEPHIRO 1500 LOW fog User manual f The power cord must be connected to a grounded electric outlet. Once connected, turn ON the machine with the corresponding switch and then the heating process will start which will last about 4 minutes. After that the fog machine is ready to use.
ENGLISH ZEPHIRO 1500 LOW fog User manual DMX use of 3-Pin XLR Connectors INPUT OUTPUT 3-Pin XLR Pin 1: GND Pin 2: DMX - Pin 3: DMX + CAUTION: Wires must not come into contact with each other; otherwise the fixtures will not work at all, or will not work properly.
ENGLISH ZEPHIRO 1500 LOW fog User manual diately. The room for cooling should be at least 30cm. Keep far away from children, fire, explosive and flammable things, and avoid scalding. f In the first time use, some water might spray out. This is normal.
Page 12
ENGLISH ZEPHIRO 1500 LOW fog User manual supplier. f When you shut down the machine, it is recommended that you remove any re- maining fluid inside. Especially when the machine will not be used for a long time. It is recommended that you open the tank, remove the fluid hose and place it next to the tank in open air.
ENGLISH ZEPHIRO 1500 LOW fog User manual 11. SPECIFICATIONS Heating element 1500 Watt Warm-up time 4 Minutes Tank capacity 2,3 Liters Fog output 283m³ per minute Coverage Area 60m² Wireless remote controller included Yes - 433.92 MHz (Max 10 Meters)
ZEPHIRO 1500 LOW fog User manual 12. W ARRANTY AND SERVICE All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as shown on your purchase receipt. The following cases/components are not covered from the above warranty: •...
Page 16
ITALIANO Manuale d’uso ZEPHIRO 1500 LOW FOG IMPORTANTI ISTRUZIONI DI SICUREZZA Il simbolo è usato per indicare che in questa apparecchiatura sono presenti alcuni terminali sotto tensione pericolosi, anche in condizioni di normale funzionamento, che possono costituire rischio di scosse elettriche o di morte.
Page 17
ITALIANO Manuale d’uso Zephiro 1500 LOW FOG Ventilazione f Assicurarsi sempre che ci sia una sufficiente ventilazione in modo che l’aria possa circolare e la nebbia vaporizzata possa essere scaricata dalla stanza di utilizzo del dispositivo. f Prestare attenzione alla quantità di nebbia utilizzata.
ZEPHIRO 1500 LOW FOG è in grado di generare un volume di nebbia di 283 m³ / min e coprire un’area di 60 m² grazie ad un sistema di riscaldamento da 1500 watt, una potente...
ITALIANO Manuale d’uso ZEPHIRO 1500 LOW FOG terra. Una volta collegato, accendi la macchina con l’interruttore corrispondente e inizierà il processo di riscaldamento che durerà circa 4 minuti dopo di che la mac- china del fumo sarà pronta per l’uso.
ITALIANO Manuale d’uso Zephiro 1500 LOW FOG Uso dei 3-Piedini nei Connettori XLR per DMX INGRESSO USCITA 3-Poli XLR Piedino 1: MASSA Piedino 2: DMX - Piedino 3: DMX + ATTENZIONE: I fili non devono entrare in contatto l’uno con l’altro; altrimenti i dispositivi non funzioneranno affatto o non funzioneranno correttamente.
ITALIANO Manuale d’uso Zephiro 1500 LOW FOG immediatamente. La spazio per il raffreddamento deve essere di almeno 30 cm. Tenere lontano dalla portata di bambini, fuoco, materiale esplosivo o infiammabile, ed evitare scottature. f Al primo utilizzo, potrebbe fuoriuscire del liquido. E’ normale.
Page 24
ITALIANO Manuale d’uso ZEPHIRO 1500 LOW FOG Eliminare tutti i liquidi all’interno e sostituirli con il liquido detergente (80% di acqua distillata e 20% di aceto bianco), accendere l’alimentazione, mantenerla in funzione fino a quando il liquido di pulizia non si esaurisce.
ITALIANO Manuale d’uso Zephiro 1500 LOW FOG 24. SPECIFICHE Sistema di riscaldamento 1500 Watt Tempo di riscaldamento 4 Minuti Capacità della tanica 2,3 litri Emissione Nebbia 283m³ per minuto Area di copertura 60m² Radiocomando incluso SI - 433.92 MHz (Max 10 Metri)
ITALIANO Manuale d’uso ZEPHIRO 1500 LOW FOG 25. GARANZIA ED ASSISTENZA Tutti i prodotti SOUNDSATION dispongono di una garanzia di due anni. Questa garanzia di due anni è valida dalla data di acquisto, come indicato dal documento di acquisto. •...
Page 27
Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
