Limited Warranty - Universal Tool UT8630L Operating Instructions

Stroke.........................................................................................................................1-1/8"
Blows per min...........................................................................................................4,600
Shank Type ..........................................................................................Chisel Reatainer
Weight .....................................................................................................................12 lbs.
Length ............................................................................................................................64"
Width..........................................................................................................................1-5/8"
Air Inlet...........................................................................................................................1/4"
Average Air Consumption....................................................................................4 SCFM
Maximum operating pressure..............................................................................90 PSI

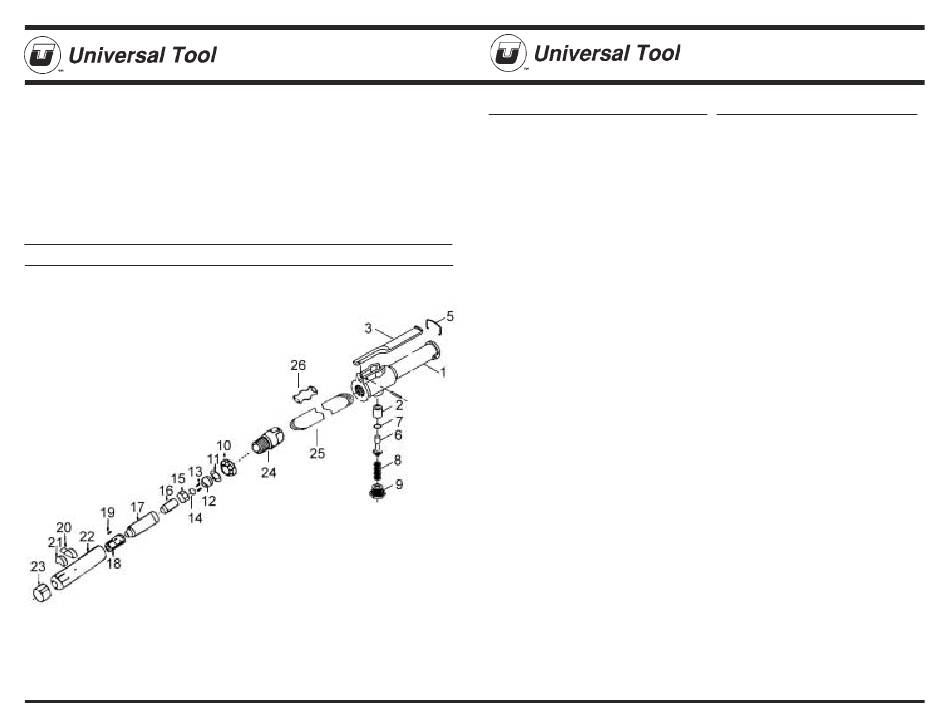

Parts Breakdown for UT8630L
UT8630L
CERAMIC TILE STRIPPER
Replacement Parts for UT8630L
Ref.
1
2
3
4
5
6
7
8
9
10
11
12
13
4

Limited Warranty

Universal Tool warrants its tools to be free from defects in material and workmanship for one year
from the date of purchase. This warranty does not apply to tools which have been abused,
misused, modified or repaired by someone other than Universal Tool or its authorized service
centers. If a Universal Tool proves defective in material of workmanship within one year after
purchase, return it to any authorized service center or to Universal Tool, freight prepaid. Please
enclose your name, address and adequate proof of purchase date with a brief description of the
defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs or
replacements are warranted as described above for the remainder of the warranty period. Univer-
sal Tool's sole liability and your exclusive remedy under this warranty is limited to repair or replace-
ment of the defective tool. There are no other warranties expressed or implied and Universal Tool
shall not be liable for incidental, consequential or special damages, or any other damages, costs or
expense of repair or replacement as described above.
Description Part #
9386101
Throttle Body Handle Bare
9386602
Throttle Valve Bushing
Throttle Valve Lever 9386601
9SP6025
Throttle Lever Fulcrum Pin
9386903
Throttle Lever Lock Clip
Throttle Valve 9386603
Throttle Valve O-Ring 9OR1217
Throttle Valve Spring 9386607
Throttle Valve Plug 9386605
Locking Ring 9729597
Alignment Shim 9730218
Rear Valve Block 9729608
Pin 91012591
UT8630L
CERAMIC TILE STRIPPER
Ref. Description Part #
14 Valve 9729604
15 Front Valve Block 9729606
16 Piston 9730219
17 Barrel Sleeve 9731008
18 Nose 9731009
19 Key 9731010
20 Driver Retainer 9730220
21 Retainer Buffer 9730221
22 Barrel Assembly 9730223
(Incl. Items #17, 18 & 19)
23 Retainer Clip 9730222
24 Back Head 260120
25 42" Pipe 106620
26 Grip 266060
