Limited Warranty - Universal Tool UT8010-1 Operating Instructions

Specifications
Free Speed RPM....................................................................200
Drive..................................................................................1/2-in.
Working Torque...............................................................95 ft.-lbs.
Length.................................................................................13 in.
Weight...........................................................................3-3/4 lbs.
Air Inlet........................................................................1/4-in. NPT
Average Air Consumption.................................................... 4 CFM
Maximum operating pressure............................................... 90 PSI
USE ONLY POWER SOCKETS & ACCESSORIES
Sockets and accessories used shall be of the power socket type. Always check sockets,
retainers and drives regularly for wear or damage and replace whenever necessary
UT8010-1

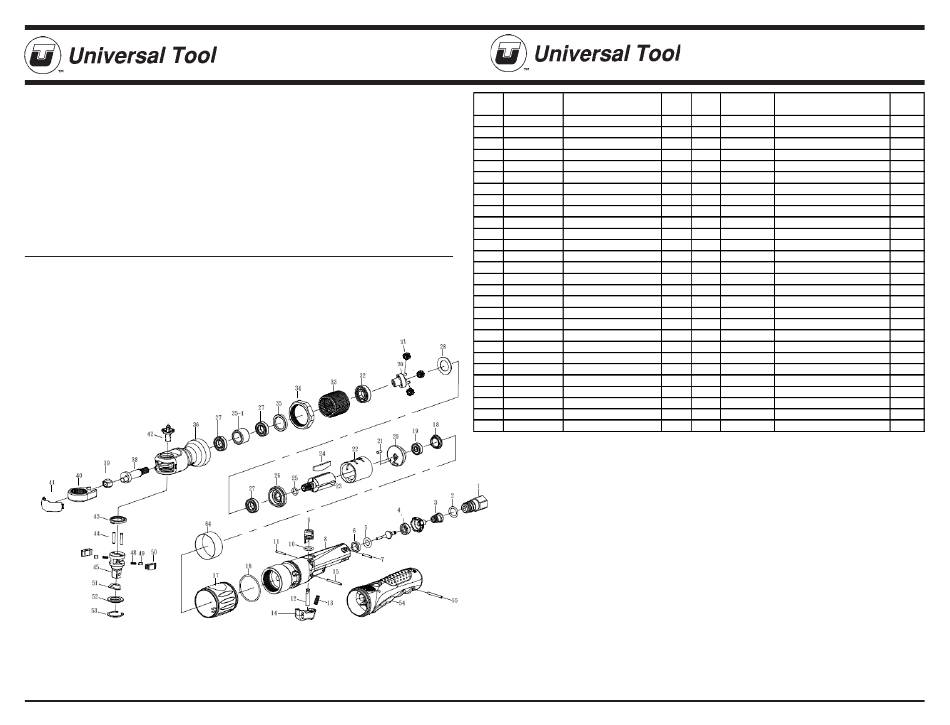

1/2" HEAVY DUTY RATCHET
Ref No. Part No. Description
1 9729201 Air Inlet
2 9829202 O-Ring
3 9729203 Throttle Valve Spring
4 9729204 Throttle Valve Assembly
5 9729205 O-Ring
6 9729206 Throttle Valve Seat
7 9729207 Spring Pin
8 9729208 Motor Housing
9 9729209 Air Regulator
10 9729210 O-Ring
11 9729211 Spring Pin
12 9729212 Throttle Valve Stem
13 9729213 Spring Pin
14 9729214 Trigger
15 9729215 Spring Pin
16 9729216 O-Ring
17 9729217 Exhaust Deflector
18 9729218 End Cap
19 9729219 Ball Bearing
20 9729220 Rear End Plate
21 9729221 Spring Pin
22 9729222 Cylinder
23 9729223 Rotor
24 9729224 Rotor Blade
25 9729225 O-Ring
26 9729226 Front End Plate
27 9729227 Ball Bearing

Limited Warranty

Universal Tool warrants its tools to be free from defects in material and workmanship for one year
from the date of purchase. This warranty does not apply to tools which have been abused,
misused, modified or repaired by someone other than Universal Tool or its authorized service
centers. If a Universal Tool proves defective in material of workmanship within one year after
purchase, return it to any authorized service center or to Universal Tool, freight prepaid. Please
enclose your name, address and adequate proof of purchase date with a brief description of the
defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs or
replacements are warranted as described above for the remainder of the warranty period. Univer-
sal Tool's sole liability and your exclusive remedy under this warranty is limited to repair or replace-
ment of the defective tool. There are no other warranties expressed or implied and Universal Tool
shall not be liable for incidental, consequential or special damages, or any other damages, costs or
expense of repair or replacement as described above.
1/2" HEAVY DUTY RATCHET
Qty. Ref No. Part No. Description
1 28 9729228 Spacer
1 30 9729230 Spindle Assembly
1 31 9729231 Planet Gear
1 32 9729232 Ball Bearing
1 33 9729233 Ring Gear
1 34 9729234 Coupling Nut
1 35 9729235 Bushing Spacer
1 35-1 9729235-1 Bushing
1 36 9729236 Ratchet Housing Assembly
1 38 9729238 Crank Shaft
1 39 9729239 Drive Bushing
1 40 9729240 Ratchet Yoke
1 41 9729241 Ratchet Housing Cover
1 42 9729242 Reverse Knob Assembly
1 43 9729243 Thrust Washer
1 44 9729244 Pawl Retaining Pin
1 45 9729245 Ratchet Anvil Assembly
1 48 9729248 Ratchet Spring
1 49 9729249 Ratchet Lock Pin
1 50 9729250 Ratchet Pawl
1 51 9729251 Wave Washer
1 52 9729252 Thrust Washer
1 53 9729253 Retaining Ring
1 54 9729254 Housing Cover
1 55 9729255 Spring Pin
1 64 9729264 Muffler Element
