Universal Tool UT9935 Operating Instructions

Description

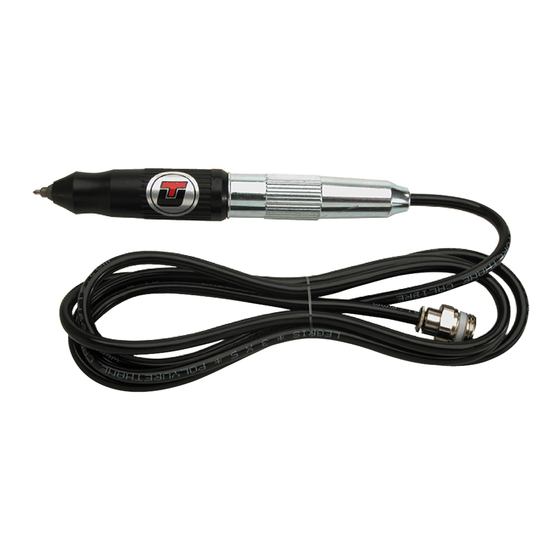

The Universal Tool model UT9935 Recoilless Air Scribe features an advanced vibration-dampened mechanism which reduces noise levels and
significantly reduces vibrations being transferred to the operator. This scribe is designed to mark a variety of materials including steel, alumi-
num, fiberglass, ceramics, plastics and glass. This tool features a durable steel housing, carbide tip, contoured grip, and a twist throttle which
allows precise power control to match the application.

Specifications

Bit size ............................................................2 mm tapered to 0 mm
Stroke length .................................................................................1 mm
Speed ................................................................................. 21,000 B.P.M.
Tool length ........................................................................................ 5 ½"
Integral hose supplied ................................................5 ft. x 1/8" I.D.
Weight ................................................................................................6 oz.
Air inlet ..................................................................................... 1/4" Male
Minimum hose size ..................................................................1/4" I.D.
Average air consumption .........................................................1 CFM
Maximum operating pressure ................................................ 90 PSI
Vibration level ........................................................................... 1.4 m/s
PL-2085
2
Universal Tool
A Division of Florida Pneumatic Manufacturing Corporation
851 Jupiter Park Lane, Jupiter, Florida 33458
Toll Free 1-800-327-9403
Recoilless Air Scribe

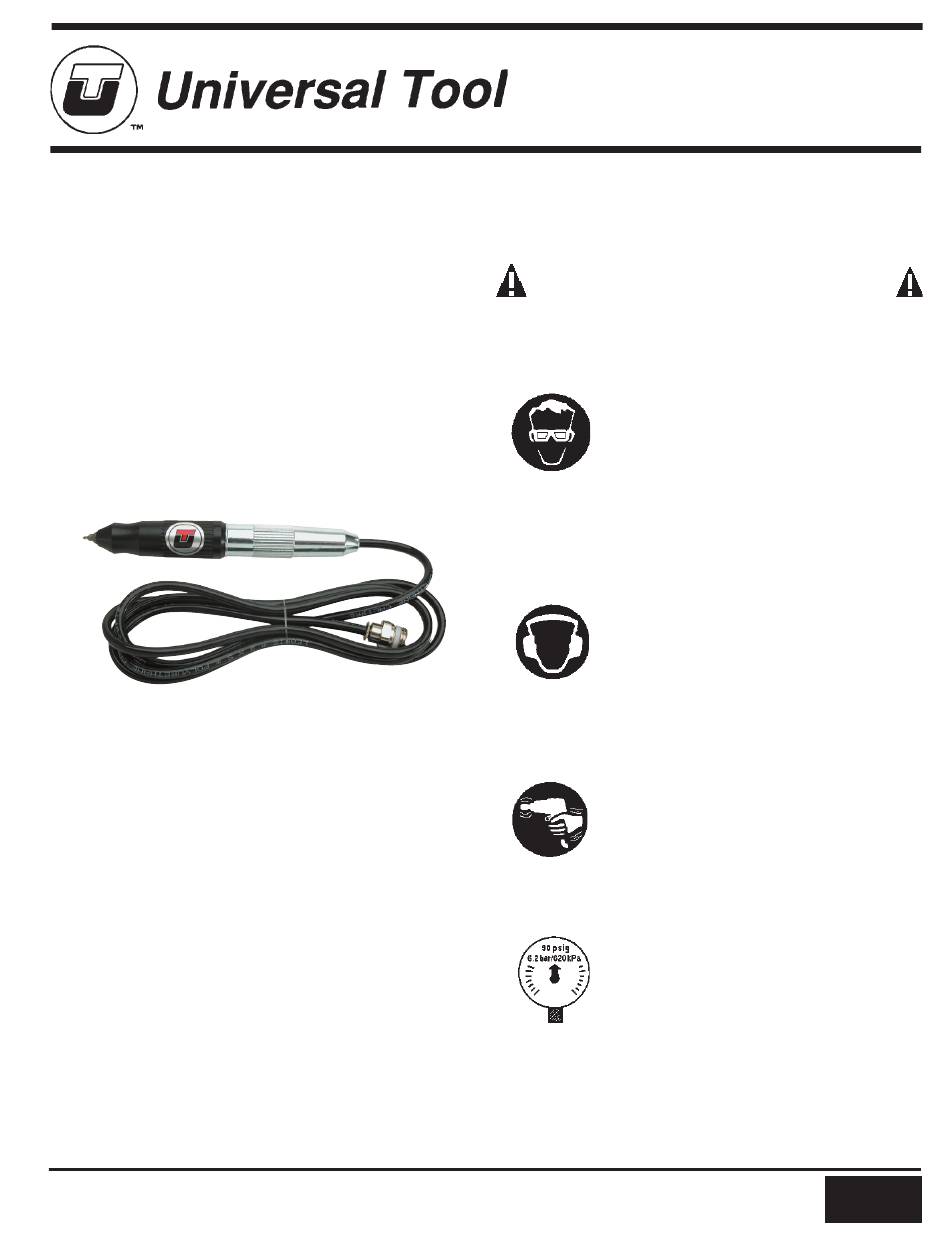

PLEASE READ AND FOLLOW ALL WARNINGS
Read Operating Instructions
Always become familiar with all the instructions
and warnings before operating any power tool.
Always Wear Approved Eye Protection Impact
resistant eye protection should meet or exceed
the standards as set forth in the United States
ANSI Z87.1, Occupational and Educational Eye
and Face Protection. Look for the marking Z87.1
on your eye protection to insure that it is an ap-
proved style. For further information, ANSI Z87.1,
Occupational and Educational Eye and Face Pro-
tection, is available from the American National
Standards Institute, Inc., 11 West 42nd Street,
New York, NY 10036.
Hearing Protection is Recommended
Hearing protection should be used when the
noise level exposure equals or exceeds an 8 hour
time-weighted average sound level of 85 dBA.
Process noise, reflective surfaces, other tools
being operated nearby, all add to the noise level
present in your work area. If you are unable to
determine your noise level exposure, we recom-
mend the use of hearing protection.
Avoid Prolonged Exposure
to Vibration
Tools can vibrate during use. Prolonged expo-
sure to vibration or very repetitive hand and arm
movements, can cause injury. Stop using any tool
if discomfort, tingling feeling or pain occurs. You
should consult your physician before resuming
use of the tool.
90 PSIG Maximum
This tool is designed to operate at an air pressure
of 90 pounds per square
(90 PSIG) maximum, at the tool. Use of higher
air pressure can, and may cause injury. Also, the
use of higher air pressure places the internal
components under loads and stresses they were
not designed for, causing premature tool failure.
The air supply should be clean and dry, preferably
lubricated. For best results, drain the moisture
from your compressor daily.
