Limited Warranty - Universal Tool UT9940 Operating Instructions

Specifications
File size ........................................................................................................... 1/4" Round Shank
File length .................................................................................................................. 4" Maximum
Stroke length ........................................................................................................................ 5/16"
Speed ...................................................................................................................... 9,100 S.P.M.
Overall length ......................................................................................................................... 7¼"
Weight .............................................................................................................................. 2¼ lbs.
Air inlet ........................................................................................................................... 1/4" NPT
Minimum hose size .......................................................................................................... 1/4" I.D.
Average air consumption .................................................................................................. 3 CFM
Maximum operating pressure ............................................................................................ 90 PSI
Vibration level ...................................................................................................................... 2m/s

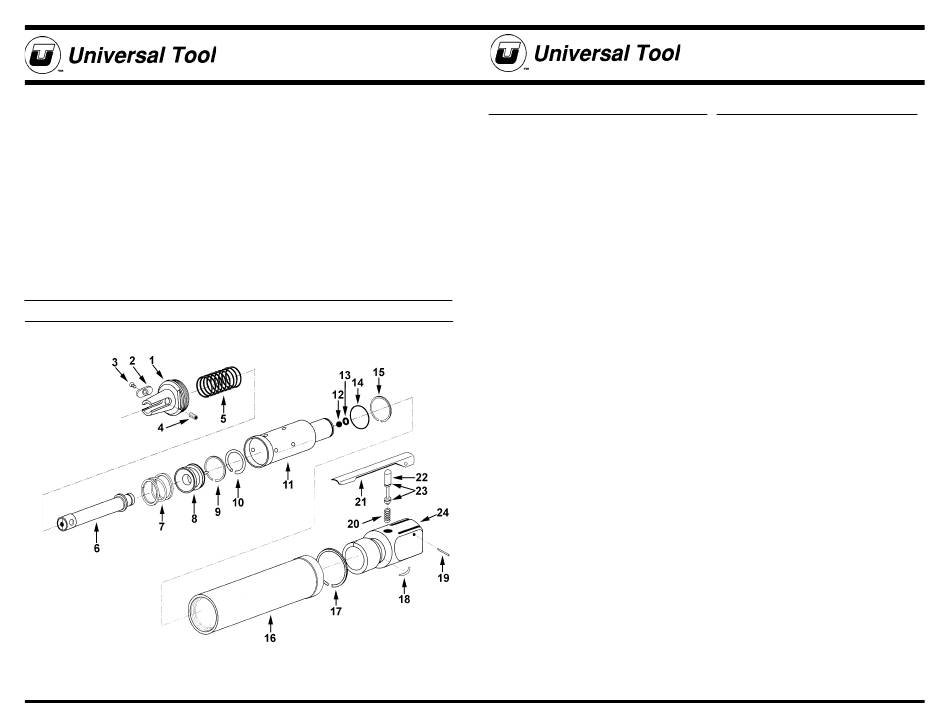

Parts Breakdown for UT9940
UT9940
RECOILLESS AIR FILE
Replacement Parts for UT9940
Ref.
10
2
11
12
13
14
15
16
17

Limited Warranty

Universal Tool warrants its tools to be free from defects in material and workmanship for one year
from the date of purchase. This warranty does not apply to tools which have been abused,
misused, modified or repaired by someone other than Universal Tool or its authorized service
centers. If a Universal Tool proves defective in material of workmanship within one year after
purchase, return it to any authorized service center or to Universal Tool, freight prepaid. Please
enclose your name, address and adequate proof of purchase date with a brief description of the
defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs or
replacements are warranted as described above for the remainder of the warranty period. Univer-
sal Tool's sole liability and your exclusive remedy under this warranty is limited to repair or replace-
ment of the defective tool. There are no other warranties expressed or implied and Universal Tool
shall not be liable for incidental, consequential or special damages, or any other damages, costs or
expense of repair or replacement as described above.
Description Part #
1 Front 6F-110-01
2 Guide 6S-100-02
3 Screw 6S-100-03
4 Lock screw 6S-100-04
5 Spring 6S-100-08
6 Piston extension 6F-100-06
7 Spring 6F-110-09
8 Piston 6S-100-12
9 Piston ring 6S-100-13
Limit ring 6S-100-14
Cylinder 6S-100-18
Ball 6S-100-17
Retainer ring 6S-100-19
O-Ring 6S-110-20
Seal ring 6S-100-22
Housing 6F-110-11
Lock ring 6S-100-24
UT9940
RECOILLESS AIR FILE
Ref. Description Part #
18 Curved cylinder 6S-100-23
19 Pin 6S-100-27
20 Valve spring 6F-110-26
21 Throttle 6F-110-15
22 Valve stem 6F-110-21
23 O-Ring (2) 6S-100-25
24 Rear body 6F-110-16
)• Mill cut (3) 5679
)• Round single cut (3) 5680
)• Triangular 5681
single cut (3)
)•* Flat bastard cut (3) 5682
Set of 4 assorted 5683
)•
files (4)
1/8" Hex wrench
)
()) Not shown
(*) One file included for
immediate use
(•) These items not included with
tool Files are available
