Universal Tool UT8002 Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
2.64 lbs
1.20 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use Of The Tool
The tool is designed to be used only for the purpose of driving,
tightening and loosening of threaded fasteners, usually nuts and
bolts, when fitted with a suitable drive socket.
It is allowed to use suitable extension bars, universal joints and
socket adaptors between the square output drive of the ratchet
wrench and the female square drive of the socket.
Do not use the tool for any other purpose than that specified
without consulting the manufacturer or the manufacturer's
authorised supplier. To do so may be dangerous.
Never use the ratchet wrench as a hammer to dislodge or
straighten cross threaded fasteners. Never attempt to modify
the tool for other uses and never modify the tool even to be
used as a ratchet wrench.
Work Stations
The tool should only be used as a handheld hand operated tool.
It is always recommended that the
tool is used when standing on the
solid floor. It can be used in other
positions but before any such use, the
operator must be in a secure position
having a firm grip and footing and be
aware that when loosening fasteners
the tool can move quite quickly away
from the fastener being undone. An
allowance must always be made for
this rearward movement so as to
avoid the possibility of hand/arm/
body entrapment.
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7.0 bar 100 PSI
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.

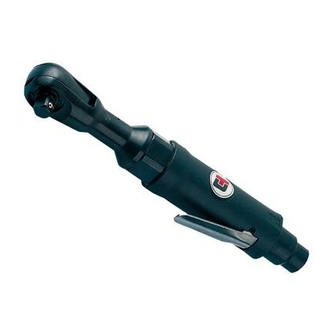

Product Type
3/8 and 1/2 Square Drive
Ratchet Wrenches
Model No/Nos
UT8002 - 3/8 SQ
UT8012 - 1/2 SQ
Recommended Hose Bore
Size - Minimum
3/8 Ins 10 M/M
Noise Level S/Pressure 84.0 (8002) 86.0 (8012) dB(A)
S/Power 95.0 (8002) 96.0 (8012) dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
2.9 (8002) 2.6 (8012)
Vibration Level
Test Method Tested in accordance with ISO
standards 8662 Parts 1 & 7
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air
pressure at the tool of 90 p.s.i./6.3 bar when the tool is running
with the trigger fully depressed. Use recommended hose size

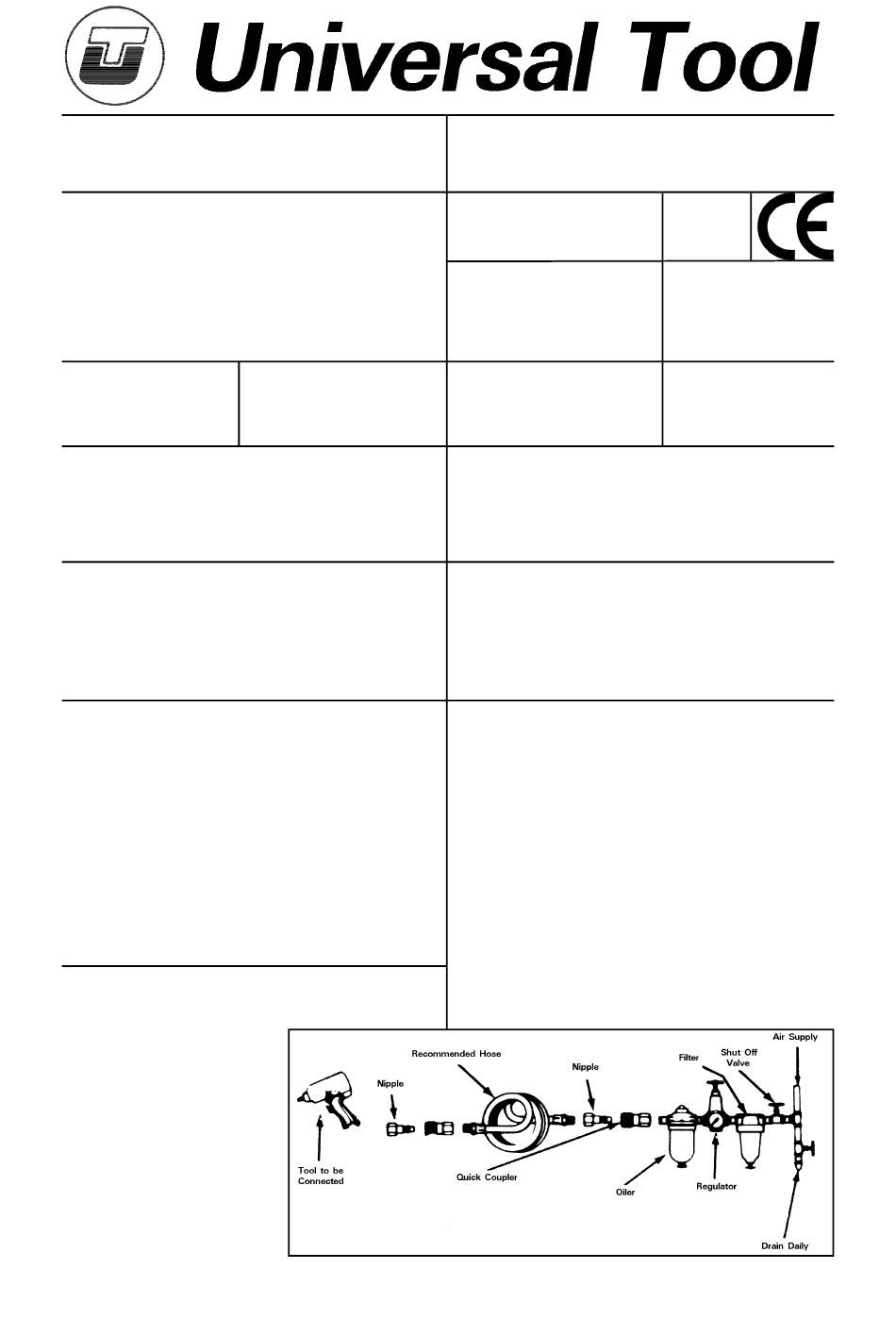

and length. It is recommended that the tool is connected to the
air supply as shown in figure 1. Do not connect the tool to the
air line system without incorporating an easy to reach and
operate air shut off valve. The air supply should be lubricated. It
is strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line by
pressing the trigger on the tool. Disconnect the air line and pour
into the intake bushing a teaspoonful (5ml) of a suitable
RPM
170
Cycles Per Min
Serial No
Recommended Max.
Hose Length
30 Ft 10 M
Metres / Sec²
