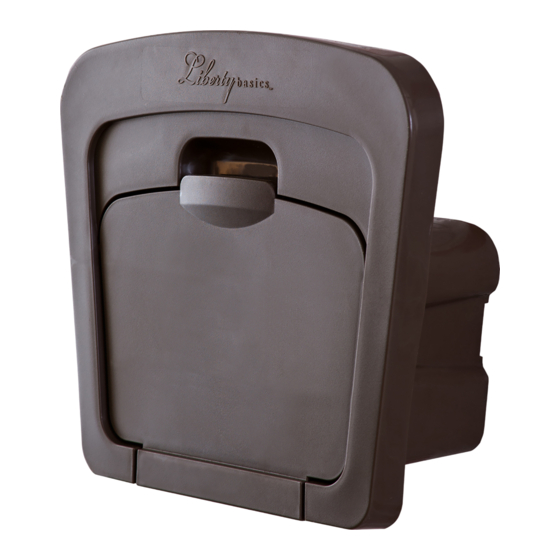

Liberty Garden Liberty Basics 501 Owner's Manual

Holds 125 ft. of 5/8" Hose
Hose Hanger W/Storage Compartment

TOOLS REQUIRED:

Hammer
Drill
Flat head
screwdriver
or bit for an
electric drill

INSTALLATION:

1.Using a stud finder, locate wood studs on your wall.
2. Position and hold hose reel (A) against the wall, mark
the position of each suspension hole and remove the reel
from the wall.
3. Using an electric drill, drill (6) pilot holes 1/4" in diameter
at the marked positions on the wall.
4. For optional brick or masonry screws, use a hammer drill
to drill (6) 1/4" pilot holes at the marked positions.
A
VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM
b a s i c s
Owner's Manual
Electric
Drill
Stud
Finder
OR CALL US TOLL FREE AT 1-866-820-5805
LIBERTY GARDEN PRODUCTS, INC.
1161 SOUTH PARK DRIVE, KERNERSVILLE, NC 27284
™
5. If Plastic wall anchors (BB) are required, drill (6) 5/16"
diameter pilot holes at the marked positions on the drywall
or masonite and insert all (6) wall anchors (BB).
6. Using a screw driver, insert the top (3) wood screws
(AA), or optional masonry screws half way into the top (3)
pilot holes or wall anchors (BB).
BB
7. Mount hose reel (A) on the top (3) screws.
8. Install the bottom (3) wood screws (AA) or masonry
screws and tighten all (6) screws. Do not overtighten
the screws.
A
AA
Model #501
AA
