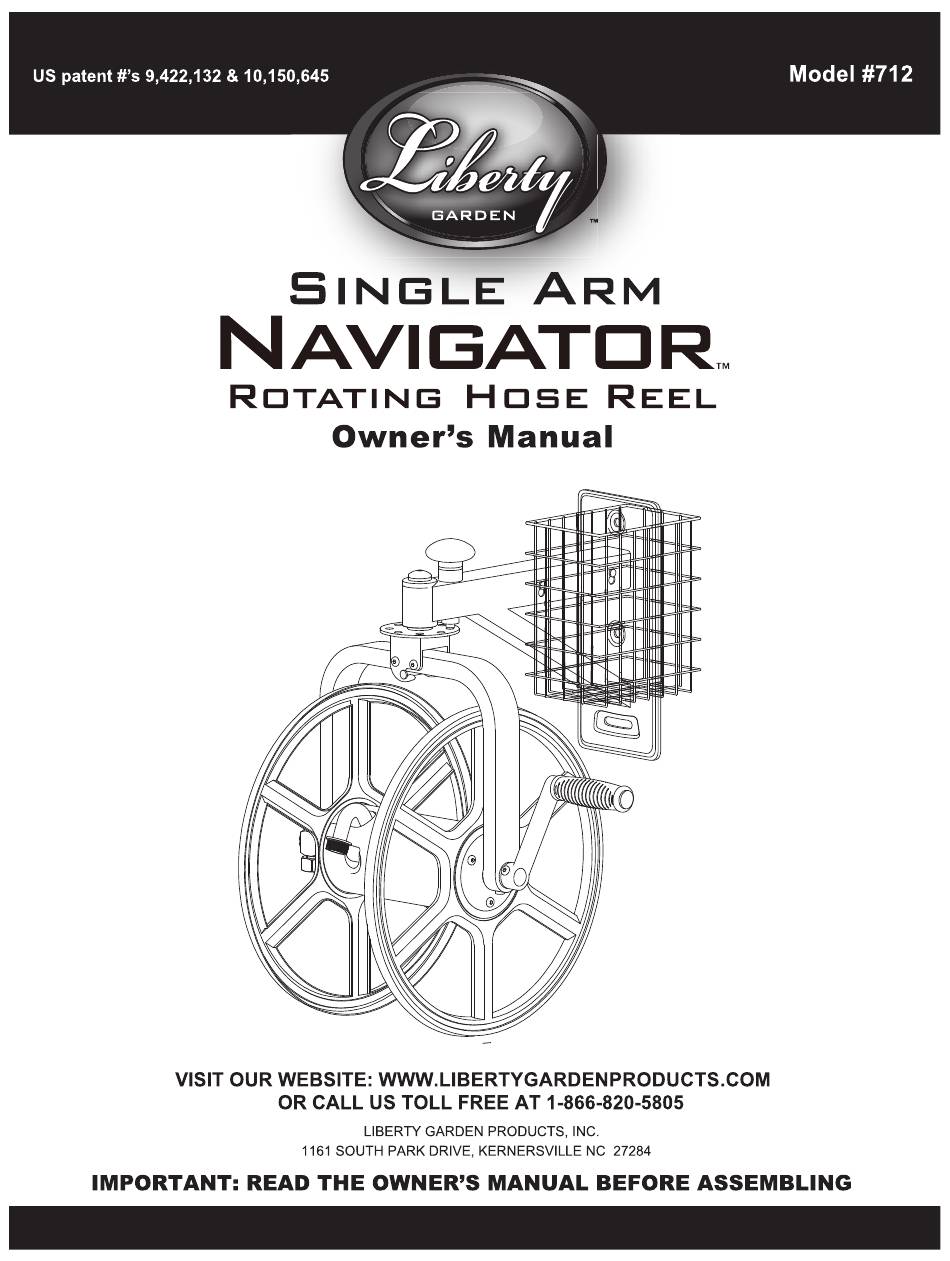

Liberty Garden Navigator 712 Owner's Manual

Rotating hose reel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Navigator 712 and is the answer not in the manual?

Questions and answers

Related Manuals for Liberty Garden Navigator 712

Summary of Contents for Liberty Garden Navigator 712

  • Page 2: Pre-Assembly

    A. Crank handle (1) B. Leader hose (1) C. Swing arm (1) D. Basket (1) E. Hose reel (1) IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. IF ANY PART IS MISSING PLEASE CONTACT LIBERTY GARDEN PRODUCTS AT 1-866-820-5805. DO NOT CONTACT THE RETAILER. YOU CAN ALSO VISIT OUR WEBSITE, WWW.LIBERTYGARDENPRODUCTS.COM, FOR MORE INSTRUCTIONS, PICTURES...

  • Page 3: Installation

    INSTALLATION This hose reel must be mounted to a solid masonry wall or to wall studs TIP: Remember to use the correct size and quantity of hardware to properly support the 1. BRICK OR MASONRY ANCHOR SLEEVES total weight of the unit. A standard 100' length of garden hose weighs approximately 15 lbs. Filled with water, the additional weight can exceed 20 lbs.
  • Page 4 ASSEMBLY Attach the hose reel (E) to the swing arm Line up the holes in the hose reel (E) with (C) by hanging the reel on the small slot the swing arm (C) and insert long Allen located at the front of the arm. bolts (BB) FIGURE 1 FIGURE 2...
  • Page 5 ASSEMBLY FIGURE 4 Align the holes in the crank handle (A) with the crank handle shaft on the hose reel (E). Insert the short Allen screw (DD) into the crank handle and tighten with supplied Allen wrench (AA) Attach your garden hose to the hose connector on the hose reel (E).
  • Page 6 OPERATING INSTRUCTIONS Pull up on handle knob located on the swing arm (C) then FIGURE 1 rotate hose reel (E) to one of the four locking positions. Pull up on the handle knob located on the swing arm (C) and turn the locking pin to the up position. The Single Arm Navigator rotating hose reel will now turn a full 360 degrees.

  • Page 7: Care Instructions

    CARE INSTRUCTIONS Leaks Your hose reel is manufactured with the finest quality components available. All components are manufactured to rigorous quality standards not common in other consumer grade hose reels available today. When you install your hose reel, be sure the hose washers are in place and all fittings are secure.

  • Page 8: Troubleshooting Guide

    1. If the leader hose is attached to the swivel, unscrew the hose and look inside the swivel. 2. Check that the hose washer is inside the nut. You may contact Liberty Garden Products for a new hose washer or obtain one at any hardware store.
  • Page 9 To obtain performance under this limited warranty, Customer shall notify Company in writing (to Liberty Garden Products, Inc., 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer Service / Warranty Department), by email (to customerservice@libertygardenproducts.com), or by telephone (to (336) 992-3595) with a full description of the defect that is covered by warranty and a copy of the dated proof of purchase of the applicable product.
