Model 890 Four Wheel Hose Cart
Owner's Manual
VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM
OR CALL US TOLL FREE AT 1-866-820-5805, MONDAY - FRIDAY 9 A.M. - 5 P.M. EST
LIBERTY GARDEN PRODUCTS, INC.
1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284
IMPORTANT: READ THE OWNER'S MANUAL BEFORE ASSEMBLING
Advertisement
Related Manuals for Liberty Garden 890
Summary of Contents for Liberty Garden 890

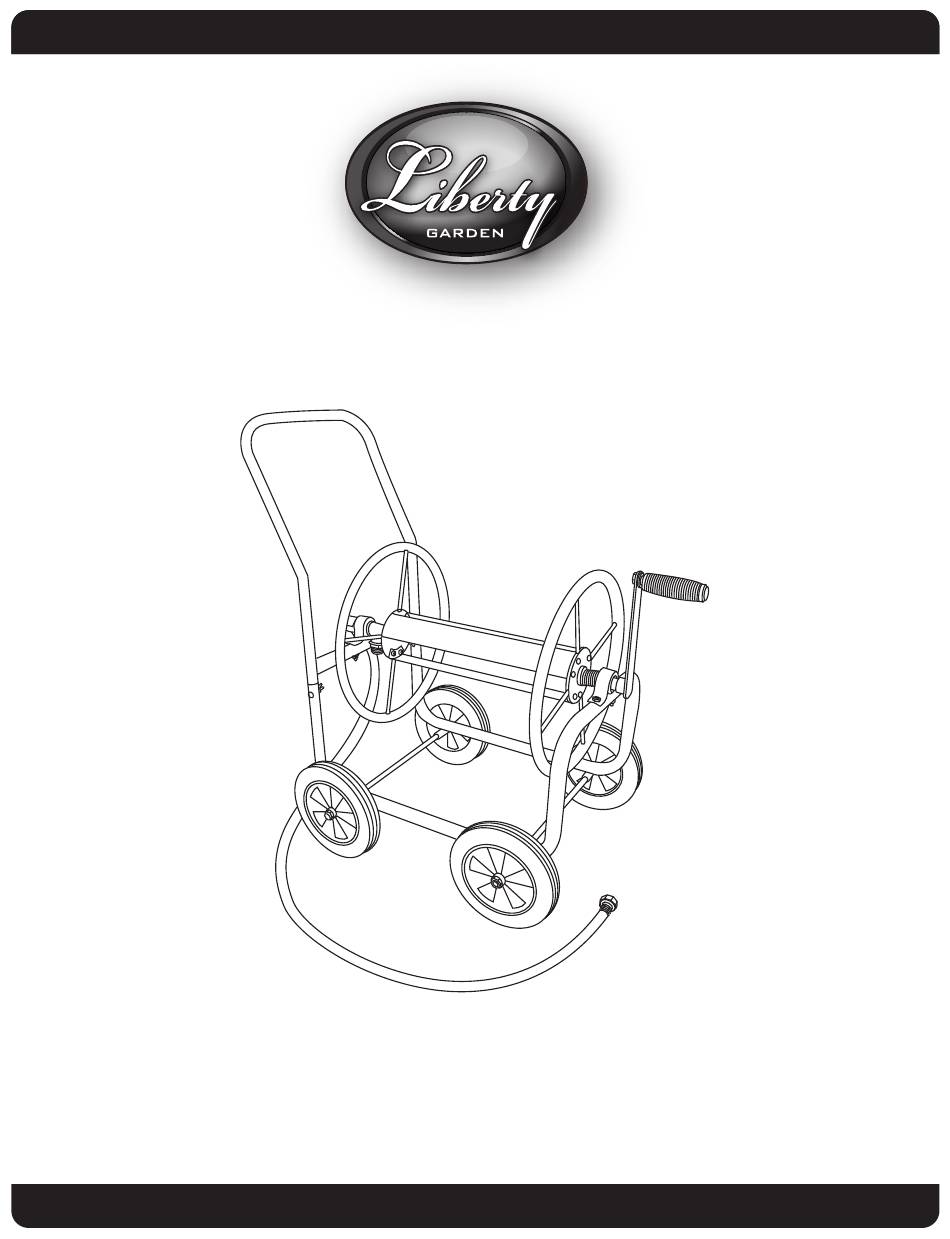

- Page 1 ™ Model 890 Four Wheel Hose Cart Owner’s Manual VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM OR CALL US TOLL FREE AT 1-866-820-5805, MONDAY - FRIDAY 9 A.M. - 5 P.M. EST LIBERTY GARDEN PRODUCTS, INC. 1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284...
-
Page 2: Parts List
R. U-HANDLE BOLT W/WING NUTS (2) IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. IF ANY PART IS MISSING PLEASE CONTACT LIBERTY GARDEN PRODUCTS AT 1-866-820-5805. DO NOT CONTACT THE RETAILER. YOU CAN ALSO VISIT OUR WEBSITE, WWW.LIBERTYGARDENPRODUCTS.COM, FOR MORE INSTRUCTIONS PICTURES AND HELPFUL... - Page 3 2. On the open end of the frame slide the u-handle 1. Set the frame sides upright and insert side (A1 (B) into the frame. Align the holes then insert and and A2) together as shown. See Figure 1 tighten the u-handle bolts and wing nuts (R) securely. See Figure 2 FIGURE 1 FIGURE 2...
- Page 4 7. Using the 12 / 13 mm screws and lock nuts Attach 12 (N) fasten the three spool rods (F) to each end of 13 mm screws the spool ends (E) using a phillips head screw and lock nuts driver and a small adjustable wrench or a 10 mm box end wrench and tighten securely.
- Page 5 FIGURE 11 FIGURE 12 11. Place the spool and water connection unit 12. Insert two 40mm bolts and nuts (O) through (M) on the frame so the u-bushing is oriented the u-bushing on the water connection unit (M) at the u-handle end of the frame. Hand tighten. over the holes on the frame.
- Page 6 DO NOT OVER TIGHTEN. FIGURE 18 See Figure 18 19. Attaching Your Garden Hose: The 890 is designed to hold up to 200’ of 5/8” garden hose. Attach FIGURE 20 your hose to the brass adapter (on the galvanized tee).
-
Page 7: Care Instructions
CARE INSTRUCTIONS Your hose reel cart is manufactured with the finest quality components available. This product will give you many seasons of reliable and functional hose storage. All components are manufactured to rigorous quality standards not common in other consumer grade hose reels available today. As with any steel product, there is always the chance for rust developing over time. -
Page 8: Troubleshooting Guide
1. If the leader hose is attached to the swivel, unscrew the hose and look inside the swivel. 2. Check that the hose washer is inside the nut. You may contact Liberty Garden Products for a new hose washer or obtain one at any hardware store. - Page 9 To obtain performance under this limited warranty, Customer shall notify Company in writing (to Liberty Garden Products, Inc., 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer Service / Warranty Department), by email (to customerservice@libertygardenproducts.com), or by telephone (to (336) 992-3595) with a full description of the defect that is covered by warranty and a copy of the dated proof of purchase of the applicable product.
- Page 10 Guilford County, North Carolina, and both parties expressly consent to the personal jurisdiction and venue of the North Carolina state and federal courts for such actions. ™ ™ “Liberty” is a registered trademark of Liberty Garden Products, Inc. Kernersville, NC. All Rights Reserved 2017 Updated 9/26/2017...
