Model 871 Four Wheel Hose Cart
Owner's Manual
VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM
OR CALL US TOLL FREE AT 1-866-820-5805
LIBERTY GARDEN PRODUCTS, INC.
1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284
IMPORTANT: READ THE OWNER'S MANUAL BEFORE ASSEMBLING
Advertisement
Related Manuals for Liberty Garden 871
Summary of Contents for Liberty Garden 871

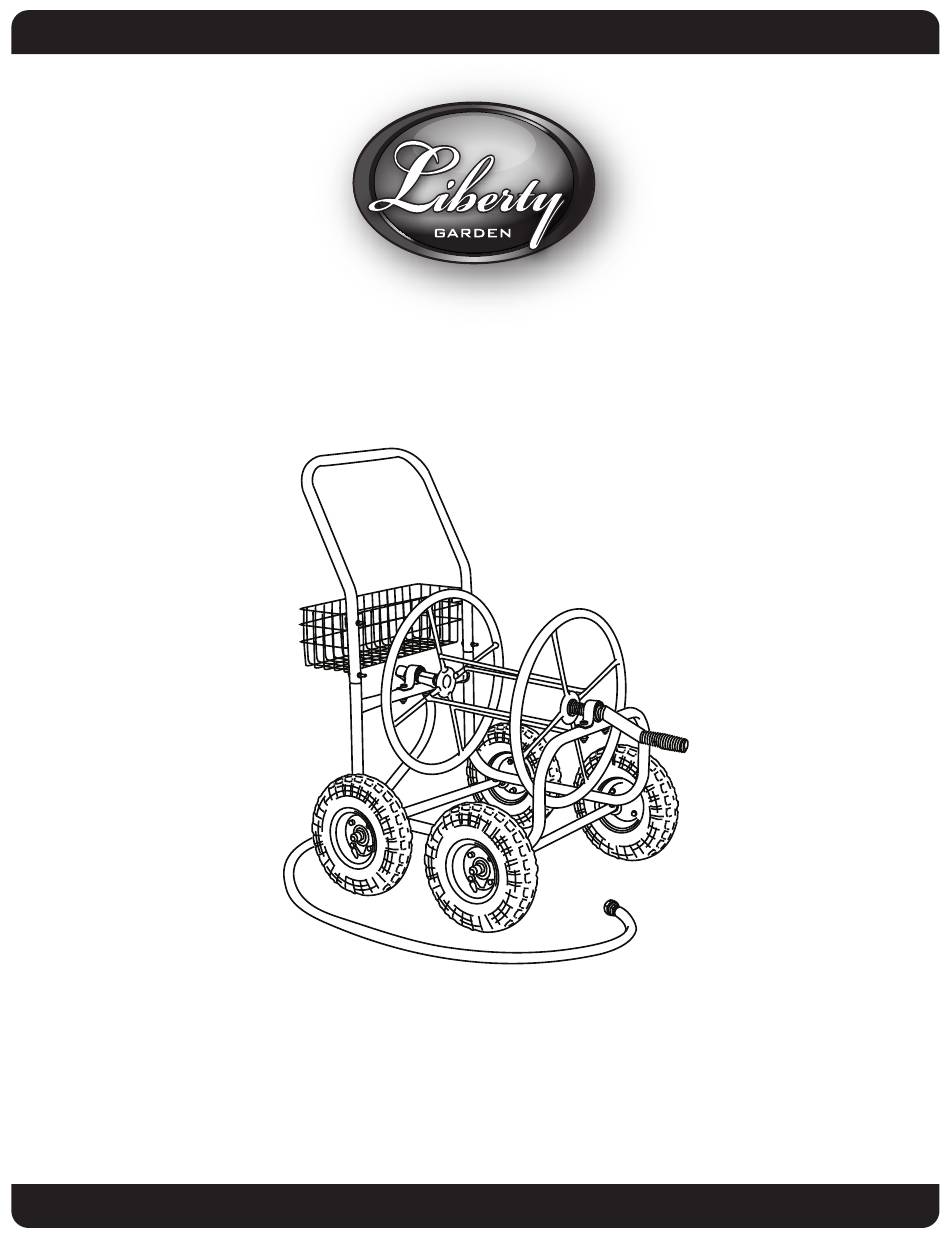

- Page 1 ™ Model 871 Four Wheel Hose Cart Owner’s Manual VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM OR CALL US TOLL FREE AT 1-866-820-5805 LIBERTY GARDEN PRODUCTS, INC. 1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284 IMPORTANT: READ THE OWNER’S MANUAL BEFORE ASSEMBLING...
-
Page 2: Parts List
Q. RUBBER HANDLE W / BOLT (1) IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. IF ANY PART IS MISSING PLEASE, CONTACT LIBERTY GARDEN PRODUCTS AT 1-866-820-5805. DO NOT CONTACT THE RETAILER. YOU CAN ALSO VISIT OUR WEBSITE, WWW.LIBERTYGARDENPRODUCTS.COM, FOR MORE INSTRUCTIONS,... - Page 3 1. Turn Frame (A) on it’s back. Insert Axles (F) through the frame. Repeat. Figure 1 2. Place the tires (E) over the axle with the air valve facing out. Place the axle washer (P) over the thread and screw on the axle nut (O) and tighten securely.
- Page 4 6. Place the spool (B) on the frame so the U-bushings (J) are oriented over the holes on the frame. Figure 6 FIGURE 6 7. Using the 1.75” bolts (M), insert them through the U-bushing (J) and through the holes on the handle side of the frame.
- Page 5 Figure 12 FIGURE 12 13. Attaching Your Garden Hose: The 871-L is designed to hold up to 250’ of 5/8” garden hose. Attach your hose to the brass adapter (on the galvanized tee). Loop the hose over the spool end (as shown) to avoid kinking.
-
Page 6: Care Instructions
CARE INSTRUCTIONS Rust Your hose reel will give you many seasons of reliable and functional hose storage. As with any steel product, there is always the chance for rust developing over time. Your hose reel finish is designed for industrial applications, but even the toughest of coatings can be compromised by scratches. Such minor surface damage can occur in shipping despite our best efforts. - Page 7 Liberty for a new hose washer or obtain one at any hardware store. 5. If your swivel is old, the O-rings may be worn, please contact us for a new set of O-rings. 6. If these steps do not solve your leaking problem, then contact Liberty Garden. SHAFT...
- Page 8 To obtain performance under this limited warranty, Customer shall notify Company in writing (to Liberty Garden Products, Inc., 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer Service / Warranty Department), by email (to customerservice@libertygardenproducts.com), or by telephone (to (336) 992-3595) with a full description of the defect that is covered by warranty and a copy of the dated proof of purchase of the applicable product.
- Page 9 Guilford County, North Carolina, and both parties expressly consent to the personal jurisdiction and venue of the North Carolina state and federal courts for such actions. ™ ™ “Liberty” is a registered trademark of Liberty Garden Products, Inc. Kernersville, NC. All Rights Reserved 2018 Updated 1/15/2018...
