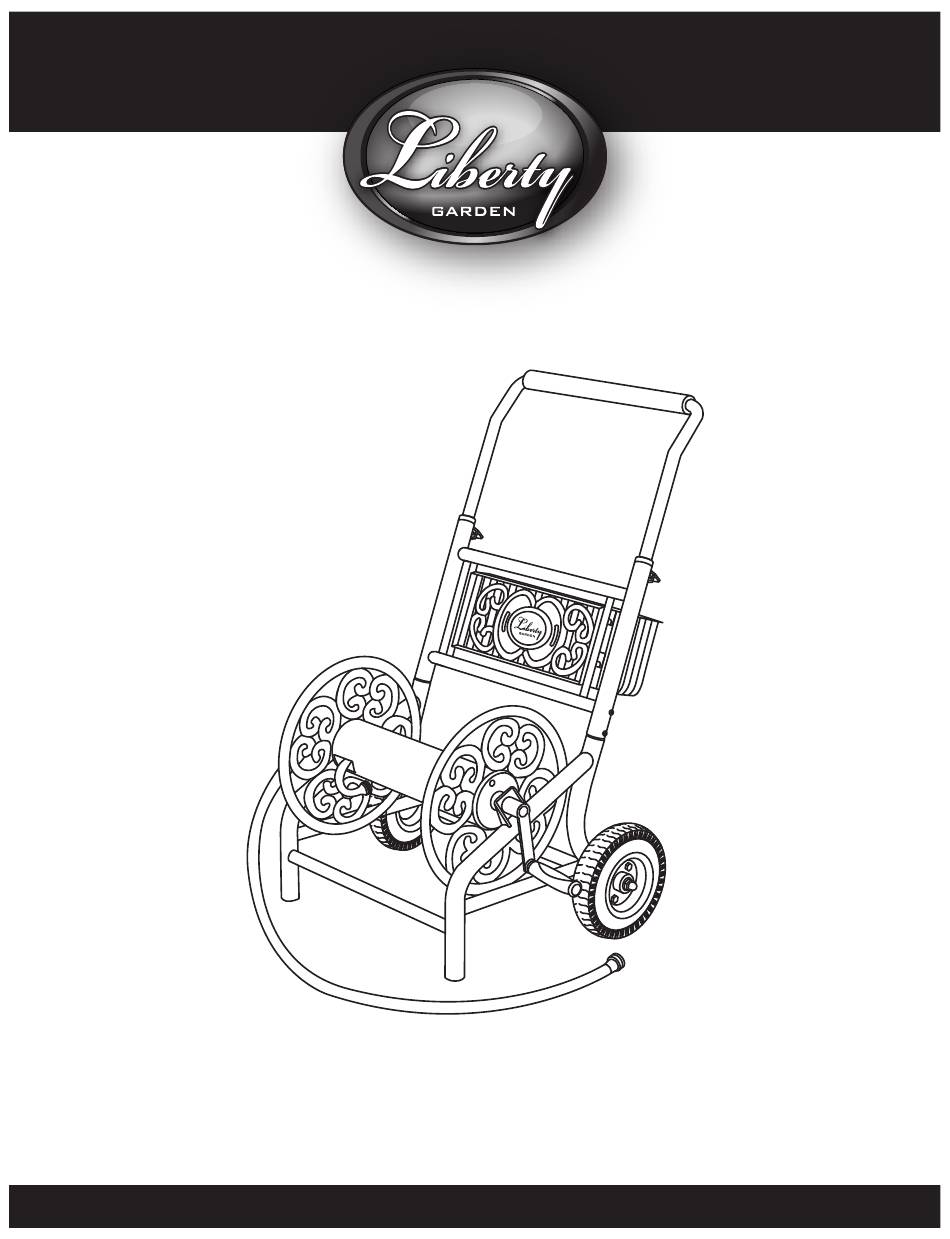

Model #301
™
Two-Wheel Decorative Metal Hose Cart
Owner's Manual
VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM
OR CALL US TOLL FREE AT 1-866-820-5805
LIBERTY GARDEN PRODUCTS, INC.
1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284
IMPORTANT: READ THE OWNER'S MANUAL BEFORE ASSEMBLING
Advertisement
Related Manuals for Liberty Garden 301
Summary of Contents for Liberty Garden 301
- Page 1 Model #301 ™ Two-Wheel Decorative Metal Hose Cart Owner’s Manual VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM OR CALL US TOLL FREE AT 1-866-820-5805 LIBERTY GARDEN PRODUCTS, INC. 1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284 IMPORTANT: READ THE OWNER’S MANUAL BEFORE ASSEMBLING...
-
Page 2: Parts List
E. Basket(1) F. Wheels (2) G. Push handle support (1) H. Cart base (1) IMPORTANT: LAY OUT ALL PARTS, TOOLS AND HARDWARE. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. If any part is missing please contact Liberty Garden Products at CUSTOMERSERVICE@LIBERTYGARDENPRODUCTS.COM or 1-866-820-5805. DO NOT CONTACT THE RETAILER. - Page 3 ASSEMBLY Remove lock nuts (CC) from the axle (B). Insert axle (B) through the holes at the bottom of the cart base (H). Secure wheels (F) by first hand tightening lock nuts (CC). Use one open-end wrench (BB) to hold axle (B) and tire (F) in place, while the other lock nut (CC) is being tightened using the second open-end wrench (BB).
- Page 4 ASSEMBLY Attach the push handle support Align knob screws (G) to the hose cart base (H) with holes to adjust by using the supplied Allen cushioned push handle wrench (AA) and four Allen (C) height. Turn to tighten. screws (DD). NOTE: Knob is designed not to be removed.
- Page 5 Then attach up to 200 ft. of 5/8” garden hose (sold separately) to the hose connector on the spool base (H). The #301 Two-Wheel Hose Reel Cart is now ready for use...
-
Page 6: Care Instructions
CARE INSTRUCTIONS Rust Your hose reel cart will give you many seasons of reliable and functional hose storage. As with any steel product, there is always the chance for rust developing over time. Your hose reel cart finish is designed for industrial applications, but even the toughest of coatings can be compromised by scratches. - Page 7 1. If the leader hose is attached to the swivel, unscrew the hose and look inside the swivel. 2. Check that the hose washer is inside the nut. You may contact Liberty Garden Products for a new hose washer or obtain one at any hardware store.
- Page 8 To obtain performance under this limited warranty, Customer shall notify Company in writing (to Liberty Garden Products, Inc., 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer Service / Warranty Department), by email (to customerservice@libertygardenproducts.com), or by telephone (to (336) 992-3595) with a full description of the defect that is covered by warranty and a copy of the dated proof of purchase of the applicable product.
- Page 9 Guilford County, North Carolina, and both parties expressly consent to the personal jurisdiction and venue of the North Carolina state and federal courts for such actions. ™ ™ “Liberty” is a registered trademark of Liberty Garden Products, Inc. Kernersville, NC. All Rights Reserved 2016 Updated 9/28/2016 Updated 9/17/2013...
