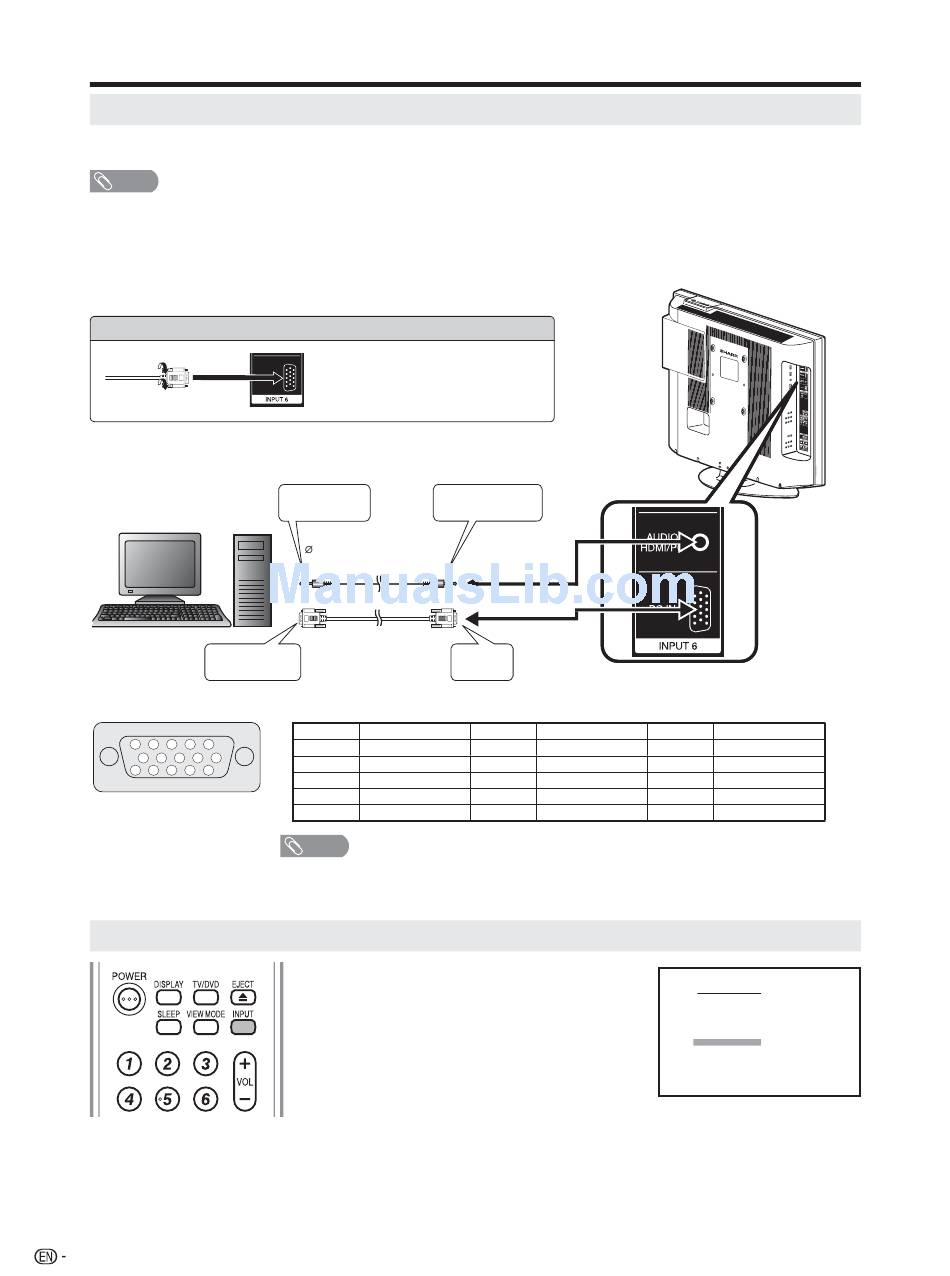

Connecting a PC (Personal computer)

Viewing an image from a PC

Use the INPUT6 (PC) terminals to connect a PC.
• LC-26DV22U/LC-26DV22U-W : INPUT5.
NOTE
• The PC input terminals are DDC1/2B-compatible.
• Refer to page 35 for a list of PC signals compatible with the System.
• Make sure to select the same signal values for the output signal of a PC and the input signal of the TV/DVD set before
connecting with the PC. (See page 35.)
• Depending on the PC being used, images may not be shown without converting the output signals into external output.
Please refer to your PC's manuals regarding converting to external output.
Connecting the RGB cable
PC
To ANALOG RGB
output terminal
Signal names for 15-pin mini D-sub connecter
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11

Displaying an image from a PC

34
• Connect the RGB cable making sure
that it fits correctly into the terminal.
Then, firmly secure the connectors by
tightening the screws on both sides
of the plug.
To Audio output
To AUDIO HDMI/PC
terminals
input terminal
3.5 mm stereo minijack cable
(commercially available)
RGB cable
(commercially available)
To PC IN
terminal
Pin No. Signal name
R
①
G
②
B
③
Not connected
④
CSYNC
⑤
NOTE
• Pin No. 5 is not used for inputting the signal.
• Pin No. 9 is not connected with the supplied RGB cable.
To view an image from a PC, perform the following
procedure.
① Select the INPUT6 (LC-26DV22U/LC-26DV22U-W
: INPUT5) (PC) mode using INPUT on the remote
control or the TV/DVD set. (See page 14.)
② Select the PC input signal. (See page 35.)
③ Adjust the "PICTURE." items if the PC image does
not come in clearly. (See page 35.)
Pin No.
Pin No. Signal name
GND (Ground)
⑥
GND (Ground)
⑦
GND (Ground)
⑧
+5V
⑨
GND (Ground)
⑩
Signal name
Not connected
⑪
SDA
⑫
HD
⑬
VD
⑭
SCL
⑮
SOURCE SELECTION
0. TV
1. INPUT1
2. INPUT2
3. INPUT3
4. INPUT4
5. INPUT5
6. INPUT6
[0-6]:SELECT
