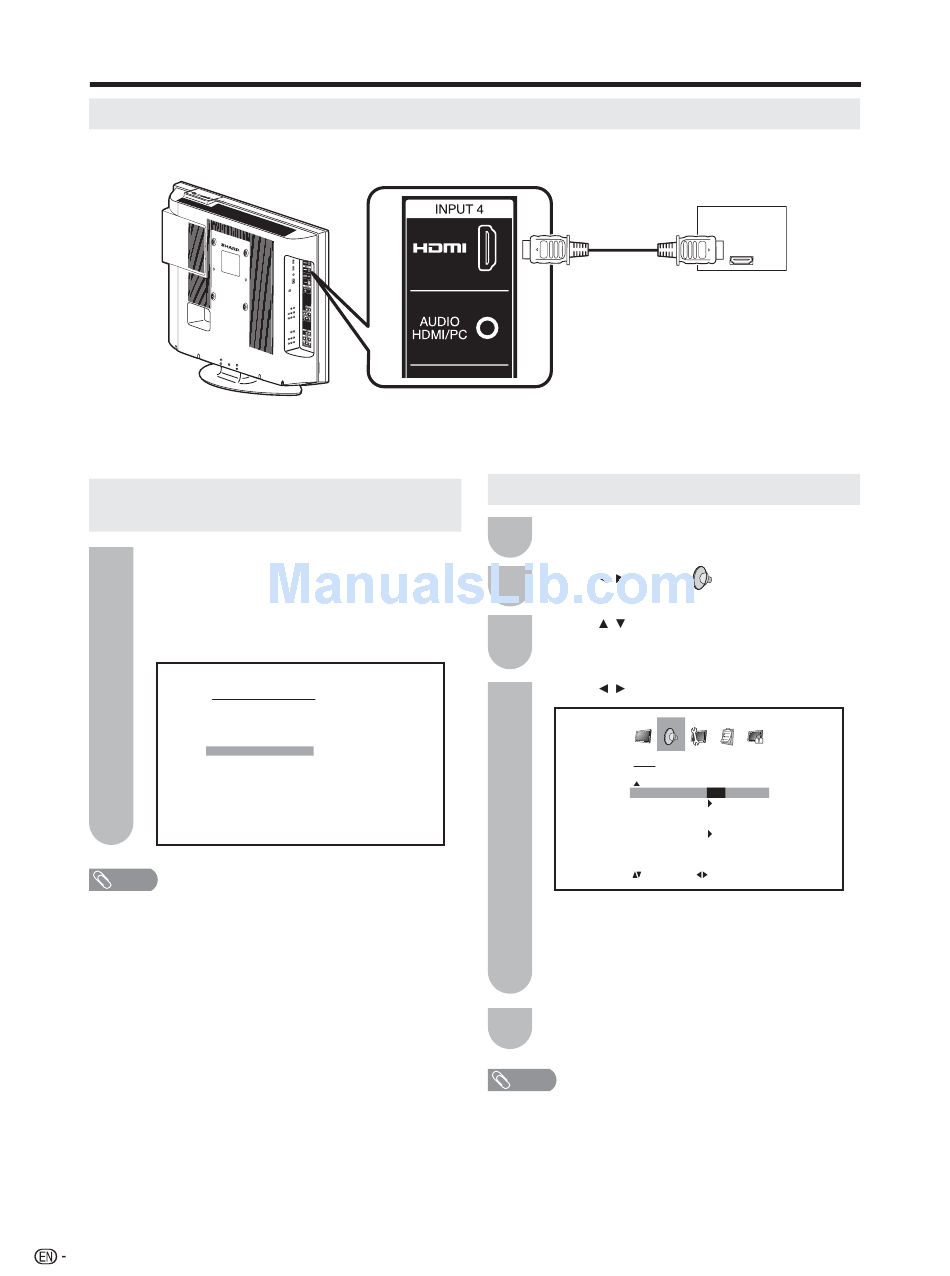

Connecting HDMI equipment

You can use the INPUT4 or 5 (LC-26DV22U/LC-26DV22U-W: INPUT 4 only) terminal when connecting HDMI
equipment.
When using an HDMI-DVI conversion cable, use INPUT4 and AUDIO terminal.
Displaying an image from HDMI
equipment
To watch an HDMI equipment image, select
1
"INPUT4 or 5" (LC-26DV22U/LC-26DV22U-
W: INPUT 4 only) from "SOURCE
SELECTION" menu using INPUT on the
remote control unit or on the TV. (See page
14.)
SOURCE SELECTION
0. TV
1. INPUT1
2. INPUT2
3. INPUT3
4. INPUT4
5. INPUT5
6. INPUT6
[0-6]:SELECT
NOTE
• Refer to your external equipment operation manual for the
signal type.
16
HDMI cable
(Commercially
available)

Selecting HDMI audio input source

Press TV MENU and the MENU screen
1
displays.
2
Press / to select
Press / to select "HDMI1".
3
• LC-26DV22U/LC-26DV22U-W: Please
select "HDMI".
Press / to select "HDMI" or "DVI".
4
AUDIO
HDMI1
AUDIO LANGUAGE
DIGITAL OUTPUT
RESET
:SELECT
HDMI: When you connect the HDMI device
to the TV, select this setting.
DVI: When you connect the DVI device
to the TV with analog audio cords,
select this setting.
5
Press EXIT to return to the normal screen.
NOTE
• Refer to your external equipment operation manual for the
signal type.
• When connecting an HDMI-DVI conversion adapter/cable
to the HDMI terminal, the image may not come in clearly.
HDMI
equipment
(AUDIO).
HDMI/DVI
PCM
:ADJUST
