Using external equipment

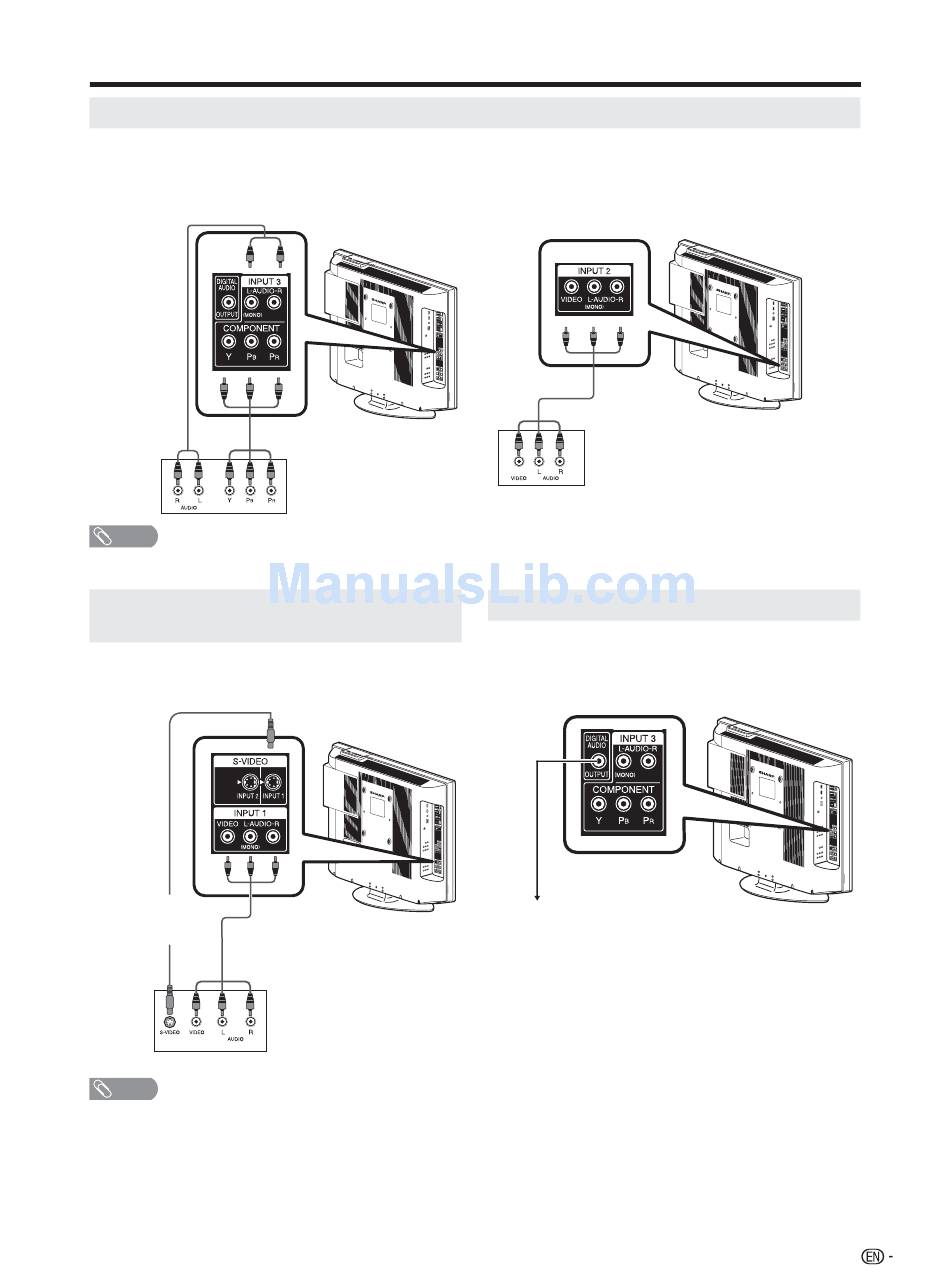

Connecting a DVD player or a digital TV STB (Cable)

You can use the INPUT1–4 terminals when connecting to a DVD player, a Digital TV STB (Cable) and other
audiovisual equipment.
When using component cable. (INPUT3)
Audio cable
(commercially
Component video cable
available)
(commercially available)
NOTE
• See page 16 for connecting a DVD player or a Digital TV STB to the HDMI terminal.
Connecting a VCR, game console or
camcorder
A VCR, game console, camcorder and other
audiovisual equipment can be conveniently connected
using the INPUT1 or 2 terminals.
S-video cable
(commercially
AV cable
available)
(commercially
available)
NOTE
• The S-video terminal takes priority over the video
terminals.
DVD player/
Digital TV STB
VCR/Game console/
Camcorder
When using composite cable. (INPUT1 or 2)
AV cable
(commercially available)
DVD player/
Digital TV STB

Using digital audio output

It is possible to output audio through the COAXIAL
DIGITAL AUDIO OUTPUT terminal. (See page 23 for
details.) PCM audio outputs from the terminal.
Coaxial digital cable
To coaxial digital input of
external audio devices
