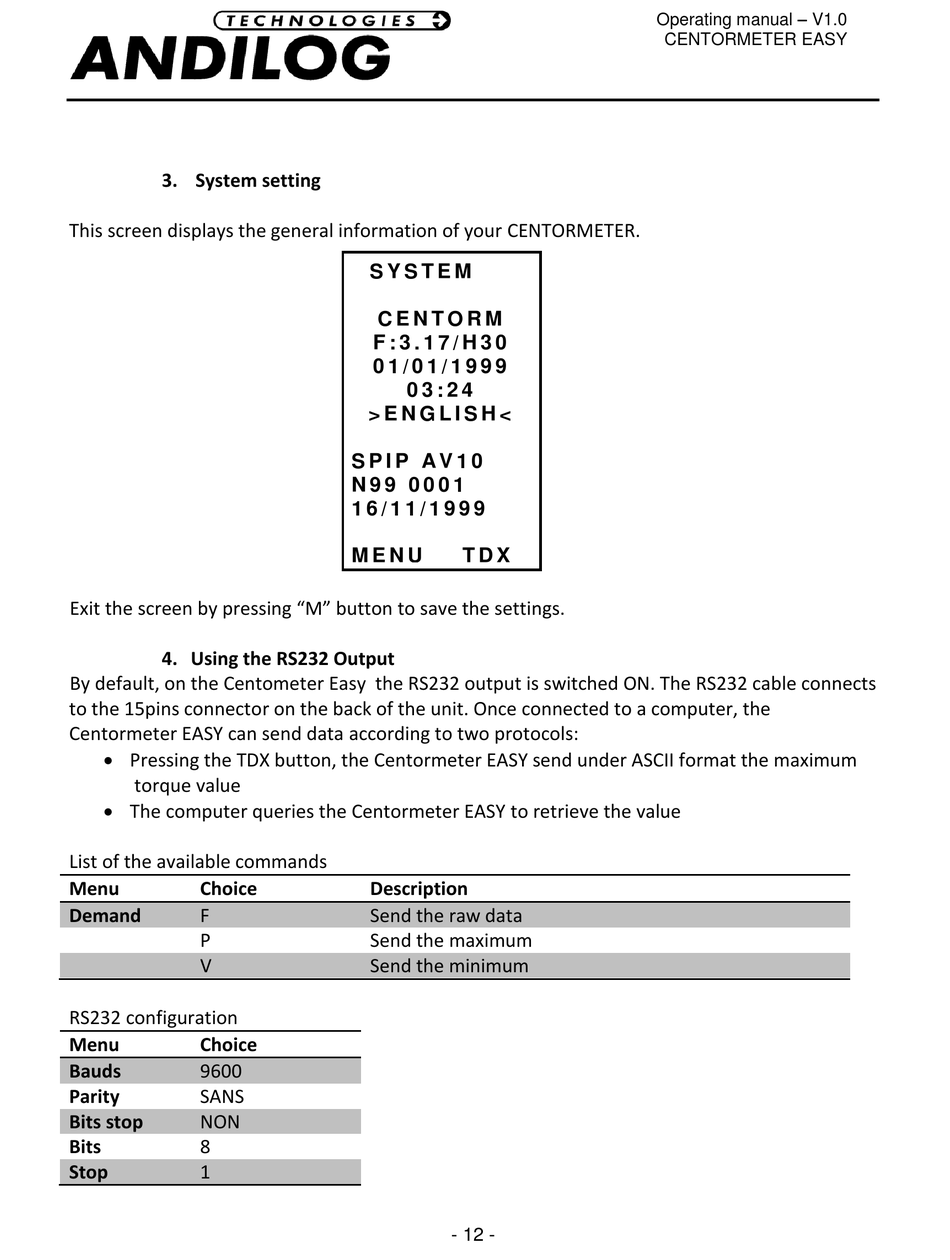

3. System setting

This screen displays the general information of your CENTORMETER.
Exit the screen by pressing "M" button to save the settings.

4. Using the RS232 Output

By default, on the Centometer Easy the RS232 output is switched ON. The RS232 cable connects
to the 15pins connector on the back of the unit. Once connected to a computer, the
Centormeter EASY can send data according to two protocols:
 Pressing the TDX button, the Centormeter EASY send under ASCII format the maximum
torque value
 The computer queries the Centormeter EASY to retrieve the value
List of the available commands
Menu Choice
Demand F
P
V
RS232 configuration
Menu Choice
Bauds 9600
Parity SANS
Bits stop NON
Bits 8
Stop 1
S Y S T E M
C E N T O R M
F : 3 . 1 7 / H 3 0
0 1 / 0 1 / 1 9 9 9
0 3 : 2 4
> E N G L I S H <
S P I P A V 1 0
N 9 9 0 0 0 1
1 6 / 1 1 / 1 9 9 9
M E N U T D X
Description
Send the raw data
Send the maximum
Send the minimum
