III.

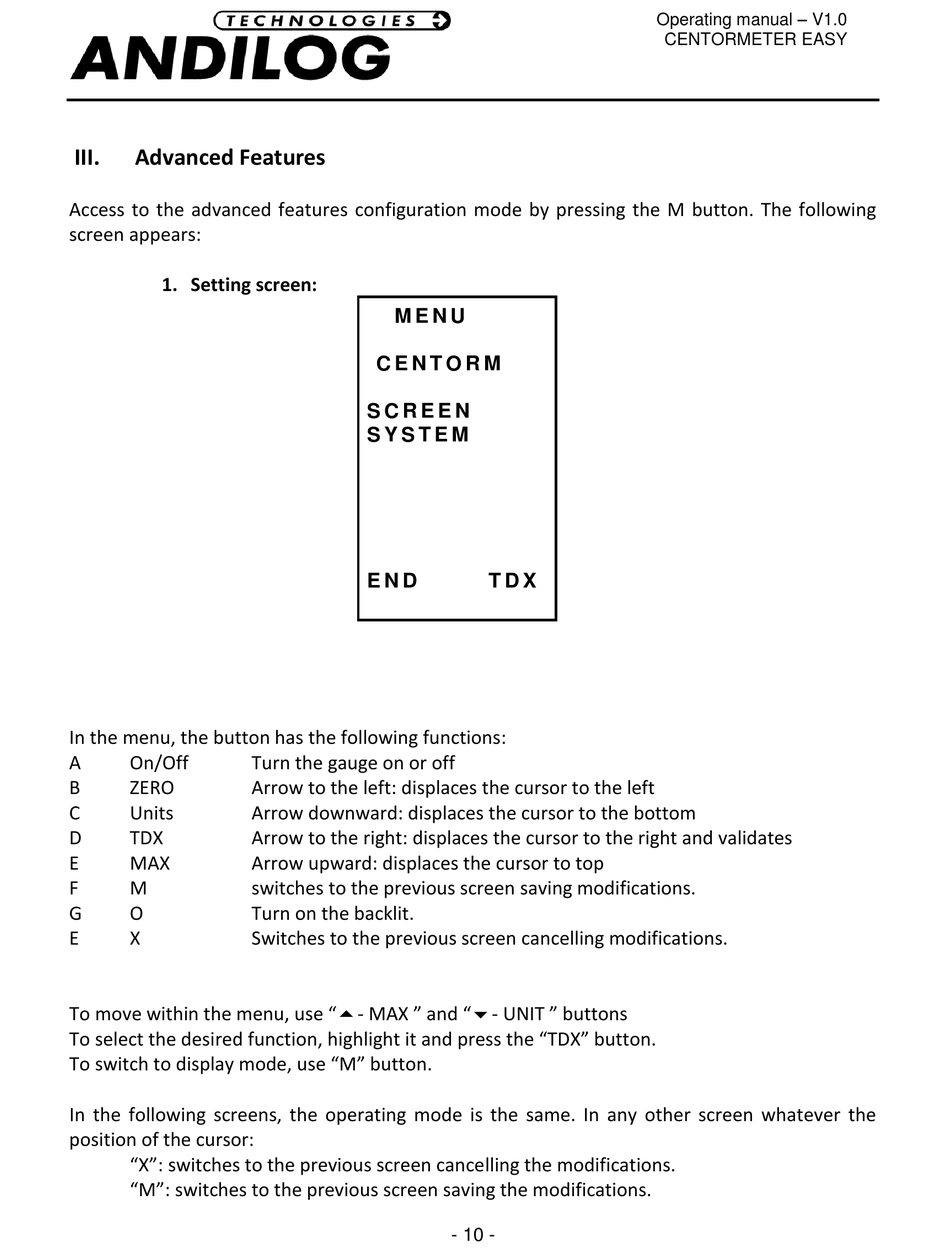

Advanced Features

Access to the advanced features configuration mode by pressing the M button. The following
screen appears:

1. Setting screen:

In the menu, the button has the following functions:
A On/Off
B ZERO
C Units
D TDX
E MAX
F M
G O
E X
To move within the menu, use "- MAX " and "- UNIT " buttons
To select the desired function, highlight it and press the "TDX" button.
To switch to display mode, use "M" button.
In the following screens, the operating mode is the same. In any other screen whatever the
position of the cursor:
"X": switches to the previous screen cancelling the modifications.
"M": switches to the previous screen saving the modifications.
M E N U
C E N T O R M
S C R E E N
S Y S T E M
E N D
Turn the gauge on or off
Arrow to the left: displaces the cursor to the left
Arrow downward: displaces the cursor to the bottom
Arrow to the right: displaces the cursor to the right and validates
Arrow upward: displaces the cursor to top
switches to the previous screen saving modifications.
Turn on the backlit.
Switches to the previous screen cancelling modifications.
T D X
