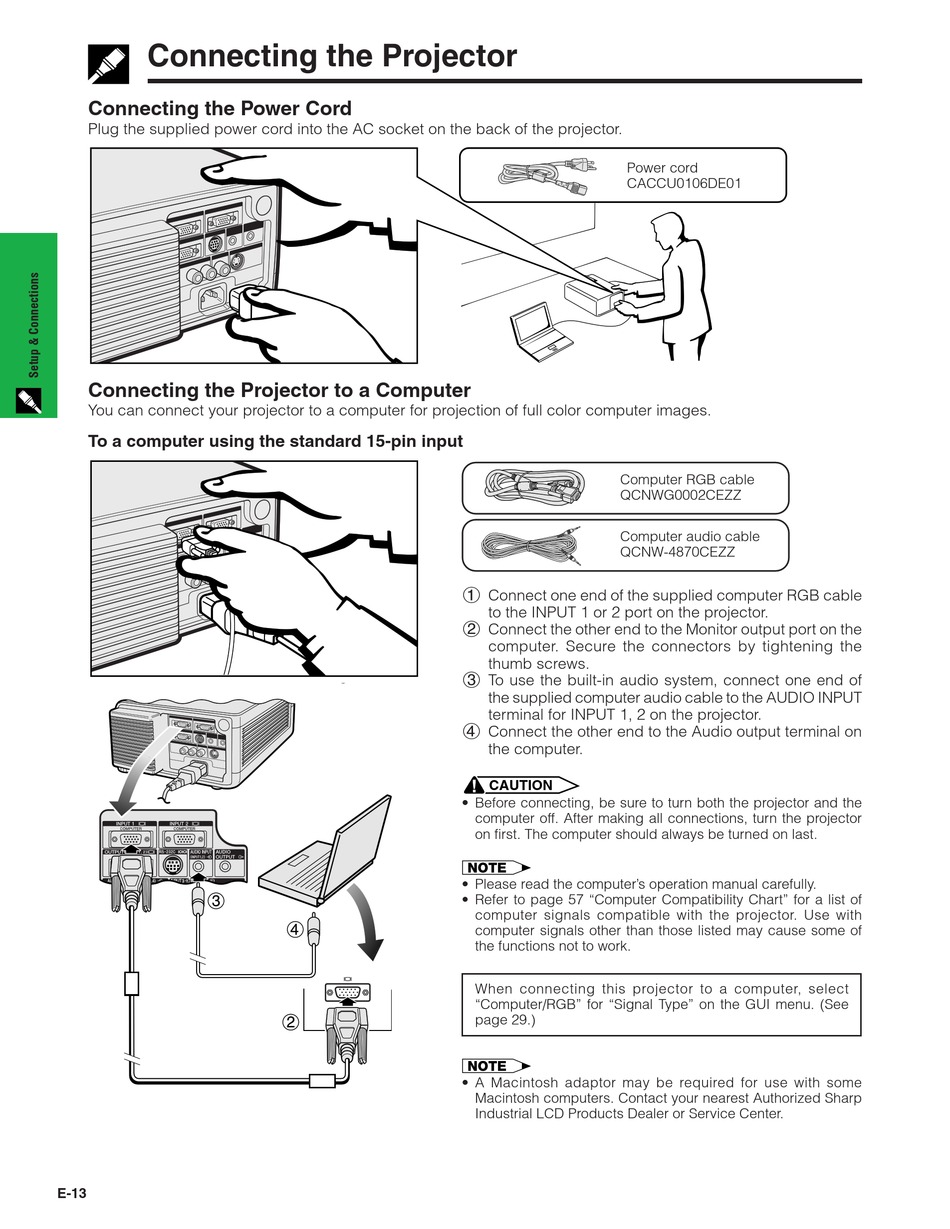

Connecting the Projector

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the back of the projector.

Connecting the Projector to a Computer

You can connect your projector to a computer for projection of full color computer images.
To a computer using the standard 15-pin input
E-13
Power cord
CACCU0106DE01
Computer RGB cable
QCNWG0002CEZZ
Computer audio cable
QCNW-4870CEZZ
1 Connect one end of the supplied computer RGB cable
to the INPUT 1 or 2 port on the projector.
2 Connect the other end to the Monitor output port on the
computer. Secure the connectors by tightening the
thumb screws.
3 To use the built-in audio system, connect one end of
the supplied computer audio cable to the AUDIO INPUT
terminal for INPUT 1, 2 on the projector.
4 Connect the other end to the Audio output terminal on
the computer.
CAUTION
• Before connecting, be sure to turn both the projector and the
computer off. After making all connections, turn the projector
on first. The computer should always be turned on last.
• Please read the computer's operation manual carefully.
• Refer to page 57 "Computer Compatibility Chart" for a list of
computer signals compatible with the projector. Use with
computer signals other than those listed may cause some of
the functions not to work.
When connecting this projector to a computer, select
"Computer/RGB" for "Signal Type" on the GUI menu. (See
page 29.)
• A Macintosh adaptor may be required for use with some
Macintosh computers. Contact your nearest Authorized Sharp
Industrial LCD Products Dealer or Service Center.
