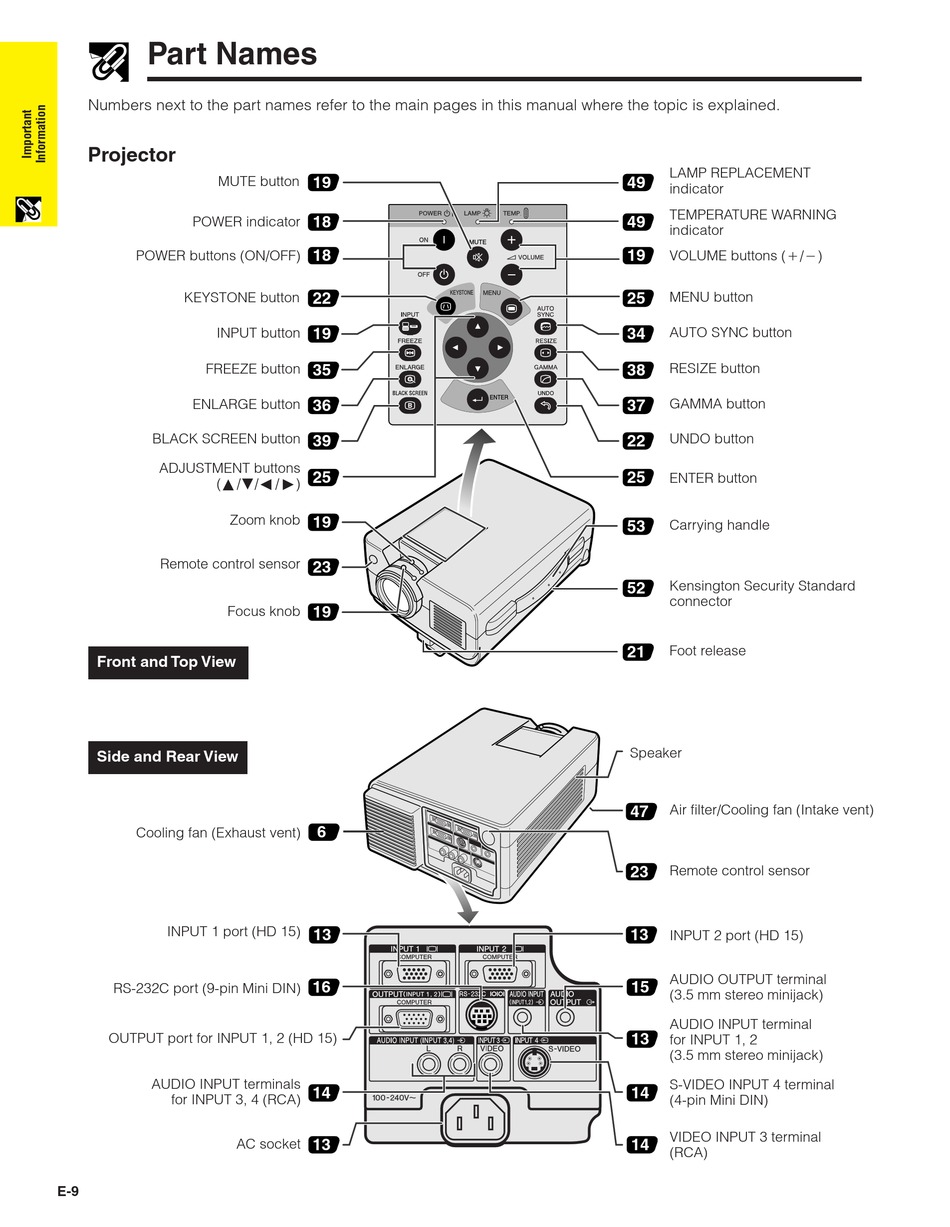

Part Names

Numbers next to the part names refer to the main pages in this manual where the topic is explained.
Projector
MUTE button
POWER indicator
POWER buttons (ON/OFF)
KEYSTONE button
INPUT button
FREEZE button
ENLARGE button
BLACK SCREEN button
ADJUSTMENT buttons
(∂ /ƒ/ß / ©)
Zoom knob
Remote control sensor
Focus knob
Front and Top View
Side and Rear View
Cooling fan (Exhaust vent)
INPUT 1 port (HD 15)
RS-232C port (9-pin Mini DIN)
OUTPUT port for INPUT 1, 2 (HD 15)
AUDIO INPUT terminals
for INPUT 3, 4 (RCA)
AC socket
E-9
19
18
18
22
19
35
36
39
25
19
23
19
6
13
16
14
13
LAMP REPLACEMENT
49
indicator
TEMPERATURE WARNING
49
indicator
19
VOLUME buttons ( / )
25 MENU button
34 AUTO SYNC button
RESIZE button
38
GAMMA button
37
UNDO button
22
25
ENTER button
53 Carrying handle
Kensington Security Standard
52
connector
Foot release
21
Speaker
47 Air filter/Cooling fan (Intake vent)
23
Remote control sensor
13
INPUT 2 port (HD 15)
AUDIO OUTPUT terminal
15
(3.5 mm stereo minijack)
AUDIO INPUT terminal
13
for INPUT 1, 2
(3.5 mm stereo minijack)
S-VIDEO INPUT 4 terminal
14
(4-pin Mini DIN)
VIDEO INPUT 3 terminal
14
(RCA)
