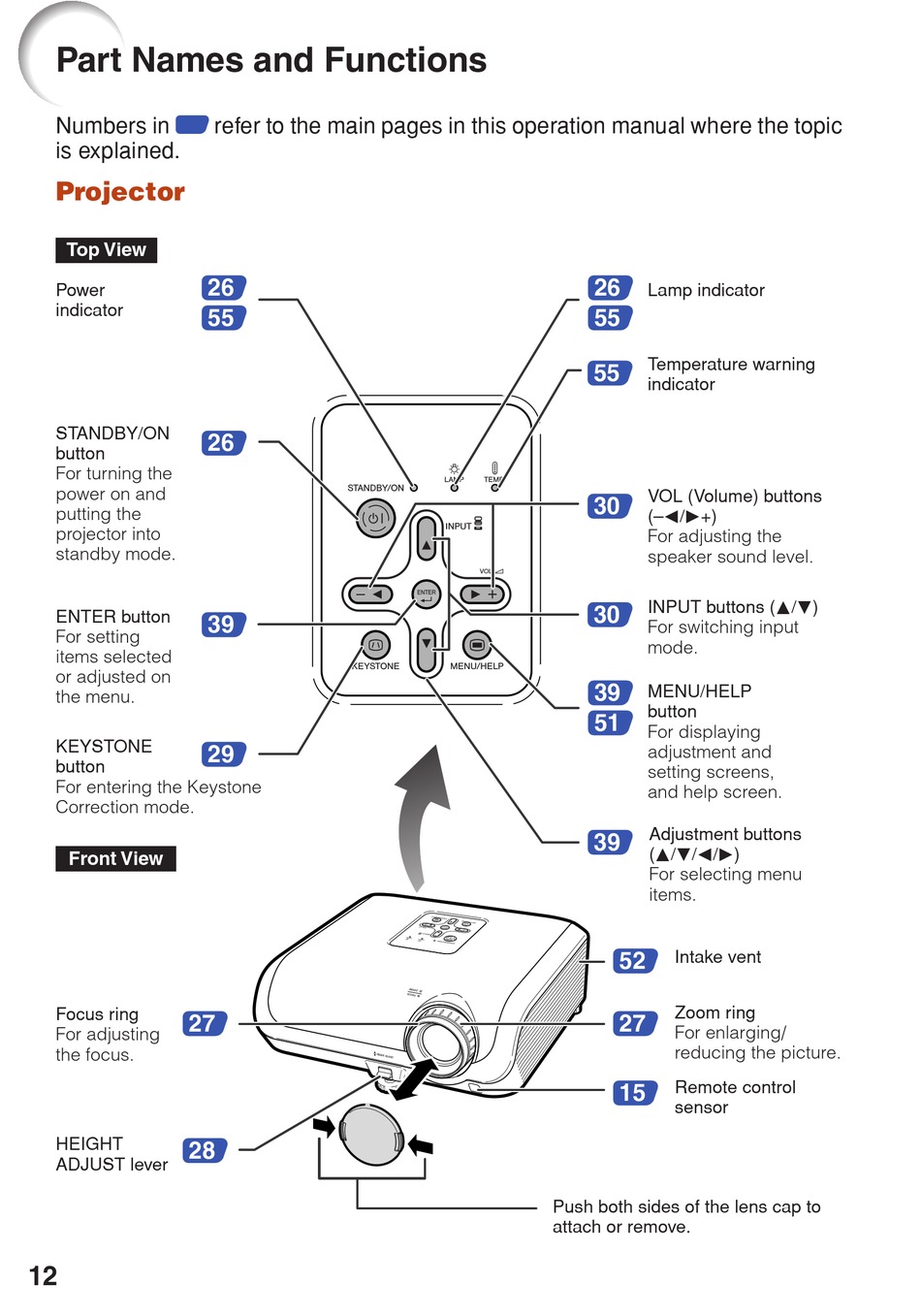

Part Names and Functions

Z
Numbers in
is explained.

Projector

Top View
Power
indicator
STANDBY/ON
button
For turning the
power on and
putting the
projector into
standby mode.
ENTER button
For setting
items selected
or adjusted on
the menu.
KEYSTONE
button
For entering the Keystone
Correction mode.
Front View
Focus ring
27
For adjusting
the focus.
HEIGHT
28
ADJUST lever
12
refer to the main pages in this operation manual where the topic
26
55
26
39
29
26
Lamp indicator
55
Temperature warning
55
indicator
VOL (Volume) buttons
30
(–O/Q+)
For adjusting the
speaker sound level.
INPUT buttons (P/R)
30
For switching input
mode.
39
MENU/HELP
button
51
For displaying
adjustment and
setting screens,
and help screen.
Adjustment buttons
39
(P/R/O/Q)
For selecting menu
items.
Intake vent
52
Zoom ring
27
For enlarging/
reducing the picture.
Remote control
15
sensor
Push both sides of the lens cap to
attach or remove.
