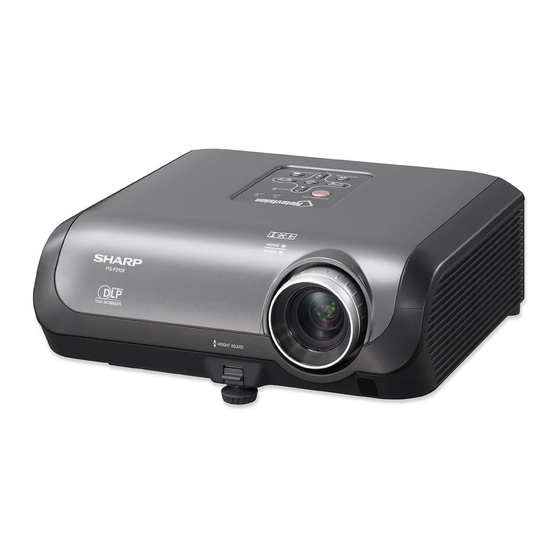

Sharp PG-F310X Service Manual

Hide thumbs Also See for PG-F310X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
TopPage
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
NOTES................................................... . ............i
[1]
Specifications ......................................... . ....... 1-1
[2]
Parts Name and Basic Operation........... . ....... 1-2
[3]
DIMENSIONS ........................................ . ....... 1-9
[4]
Regarding the lamp................................ . ..... 1-10
[1]
unit ......................................................... . ....... 2-1
[2]
Removing the top body .......................... . ....... 2-1
[3]
PWB unit ................................................ . ....... 2-2
[4]
supply ballast unit................................... . ....... 2-2
[5]
R/C receiver PWB unit ........................... . ....... 2-3
[6]
[1]
THE OPTICAL UNIT OUTLINE.............. . ....... 3-1
[1]
ELECTRICAL ADJUSTMENT................ . ....... 4-1
[2]
Adjustment mode process menu............ . ....... 4-4
Parts marked with "
" are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.

SERVICE MANUAL

DATA PROJECTOR
MODELS
CONTENTS
CHAPTER 5. TROUBLESHOOTING TABLE
[1]
TROUBLESHOOTING TABLE ......................5-1
CHAPTER 6. MAJOR IC INFORMATION
[1]
MAJOR IC INFORMATION
(XG-F315X ONLY).........................................6-1
[1]
BLOCK DIAGRAM.........................................7-1
[2]
OVERALL WIRING DIAGRAM ......................7-3
CHAPTER 8. PRINTED WIRING BOARD
[1]
MAIN Unit ......................................................8-1
[2]
DMD Unit .......................................................8-9
[3]
BALLAST POWER Unit............................... 8-11
[4]
BALLAST CONTROL Unit...........................8-17
[5]
PHOTO SENSOR Unit ................................8-19
[6]
R/C RECEIVER Unit....................................8-20
[7]
TERMINAL Unit ...........................................8-21
[8]
CAP Unit......................................................8-22
CHAPTER 9. WAVEFORMS
[1]
WAVEFORMS ...............................................9-1
CHAPTER 10. SCHEMATIC DIAGRAM
[1]
DESCRIPTION OF SCHEMATIC
DIAGRAM....................................................10-1
[2]
SCHEMATIC DIAGRAM ..............................10-2
PG-F310X/XG-F315X
No. S57J2XGF315X/
PG-F310X
XG-F315X
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.

Advertisement

Table of Contents
loading

Related Manuals for Sharp PG-F310X

Summary of Contents for Sharp PG-F310X

  • Page 1: Table Of Contents

    TopPage PG-F310X/XG-F315X SERVICE MANUAL No. S57J2XGF315X/ DATA PROJECTOR PG-F310X XG-F315X MODELS In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

  • Page 2: Safety Precaution

    PG-F310X/XG-F315X XGF315X SAFETY PRECAUTION Service Manual IMPORTANT SERVICE SAFETY NOTES IMPORTANT SERVICE SAFETY NOTES (for USA) Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and servicing guidelines as follows: Use an AC voltmeter with sensitivity of 5000 ohm per WARNING volt., or higher, sensitivity to measure the AC voltage...
  • Page 3 PG-F310X/XG-F315X PRECAUTIONS A PRENDRE LORS DE LA REPARATION Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants. AVERTISSEMENT Utiliser un voltmètre CA d'une sensibilité d'au moins 1. N'entreprendre aucune modification de tout circuit.

  • Page 4: Note To Service Personnel

    PG-F310X/XG-F315X NOTE TO SERVICE NOTE POUR LE PERSONNEL PERSONNEL D'ENTRETIEN ////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////// UV-RADIATION PRECAUTION PRECAUTION POUR LES RADIATIONS UV ////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////// La source de lumière, la lampe, dans le projecteur émet The light source, lamp, in the projector emits small de petites quantités de radiation UV.

  • Page 5: Lamp Replacement

    PG-F310X/XG-F315X //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// UV-RADIATION PRECAUTION (Continued) PRECAUTION POUR LES RADIA TIONS UV (Suite) //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// Lamp Replacement Remplacement de la lampe Note: Remarque: Since the lamp reaches a very high temperature during Comme la lampe devient très chaude pendant le units operation replacement of the lamp should be fonctionnement de l’unité, son remplacement ne doit...

  • Page 6: Power Unit

    PG-F310X/XG-F315X WARNING: High brightness light source, do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO MOISTURE OR WET LOCATIONS.

  • Page 7: Precautions For Using Lead-Free Solder

    PG-F310X/XG-F315X Precautions for using lead-free solder Employing lead-free solder • “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.

  • Page 8: Chapter 1. Operation Manual Specifications

    Weight (approx.) 9.1 lbs. (4.1 kg) As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specifica- tion figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

  • Page 9: Parts Name And Basic Operation

    PG-F310X/XG-F315X [2] Parts Name and Basic Operation Top View Power Lamp indicator indicator Temperature warning indicator STANDBY/ON button For turning the power on and VOL (Volume) buttons putting the (– / +) projector into For adjusting the standby mode. speaker sound level.
  • Page 10 PG-F310X/XG-F315X Rear View (For PG-F310X) Terminals S-VIDEO input terminal MONITOR OUT terminal Terminal for connecting (Output terminal for computer RGB, video equipment with an component and DVI analog signals. Shared for COMPUTER/COMPONENT and DVI-I) S-video terminal. Terminal for connecting a monitor.
  • Page 11 PG-F310X/XG-F315X Rear View (For XG-F315X) Terminals S-VIDEO input terminal MONITOR OUT terminal Terminal for connecting (Output terminal for computer RGB, video equipment with an component and DVI analog signals. Shared for COMPUTER/COMPONENT and DVI-I) S-video terminal. Terminal for connecting a monitor.
  • Page 12 PG-F310X/XG-F315X STANDBY button ON button For turning the power For putting the projector into the standby mode. FREEZE button COMPUTER, DVI, For freezing images. S-VIDEO, VIDEO buttons AV MUTE button For switching to the For temporarily respective input modes. displaying a black...

  • Page 13: Inserting The Batteries

    PG-F310X/XG-F315X Inserting the Batteries Pull down the tab on the cover and remove the cover towards the direction of the arrow. Insert the batteries. • Insert the batteries making sure the polarities correctly match marks inside the battery compartment. Insert the lower tab of the cover into the opening, and lower the cover until it clicks in place.

  • Page 14: Connecting Pin Assignments

    PG-F310X/XG-F315X Connecting Pin Assignments COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals :mini D- sub 15 pin female connector COMPUTER Input/Output COMPONENT Input/Output Pin No. Signal Pin No. Signal Video input (red) PR (CR) Video input (green/sync on green) Video input (blue)
  • Page 15 PG-F310X/XG-F315X RS-232C Terminal :mini DIN 9 pin female connector Pin No. Signal Name Reference Not connected Receive Data Input Connected to internal circuit Send Data Output Connected to internal circuit Not connected Signal Ground Connected to internal circuit Not connected...

  • Page 16: Dimensions

    PG-F310X/XG-F315X [3] DIMENSIONS Units: inches (mm) ø9 (69.2) (77.5) (80) (315) (33.8) (46.2) (65.5) (75) 1 – 9...

  • Page 17: Regarding The Lamp

    Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

  • Page 18: Removing And Installing The Lamp Unit

    PG-F310X/XG-F315X Removing and Installing the Lamp Unit Warning! Lamp unit Optional AN-F310LP accessory • Do not remove the lamp unit from the projec- tor right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

  • Page 19: Resetting The Lamp Timer

    PG-F310X/XG-F315X Regarding the Lamp (Continued) Remove the lamp unit. Handle • Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

  • Page 20: Chapter 2. Removing Of Major Parts

    PG-F310X/XG-F315X CHAPTER 2. XGF315X REMOVING OF MAJOR PARTS Service Manual [1] Removing the lamp door and the lamp unit 1. Loosen the lamp door fixing screw. Lift off the lamp door. 2. Remove 2 lamp unit fixing screws to detach the lamp unit.

  • Page 21: Removing The Main Pwb Unit And Terminal Pwb Unit

    PG-F310X/XG-F315X [3] Removing the main PWB unit and terminal PWB unit 1. Remove all connectors from the main PWB unit. 2. Remove 1 terminal fixing screw. 3. Remove 3 main PWB fixing screws to detach the main PWB unit. 4. Remove 3 cap PWB and terminal PWB fixing screws to detach the cap PWB unit and terminal PWB unit.

  • Page 22: Removing The Optical Mechanism Unit And R/C Receiver Pwb Unit

    PG-F310X/XG-F315X [5] Removing the optical mechanism unit and R/C receiver PWB unit 1. Remove 4 optical mechanism unit fixing screws to detach the optical mechanism unit. 2. Remove the R/C receiver PWB unit. Optical Mechanism Unit R/C Receiver PWB Unit [6] Removing the photo sensor PWB unit, blower fan, DMD PWB, and DMD 1.

  • Page 23: Chapter 3. The Optical Unit Outline

    PG-F310X/XG-F315X CHAPTER 3. XGF315X THE OPTICAL UNIT OUTLINE Service Manual [1] THE OPTICAL UNIT OUTLINE 1. Layout for proper setup of the optical components and parts (top view) (Schematic diagram) Projection lens Illumination lens 2 Illumination lens 1 Reflection mirror...
  • Page 24 PG-F310X/XG-F315X 2. When the DMD unit has been replaced If shading shown in Figure 1 appears on the screen after replacing DMD, turn the adjustment screw of the optical engine to adjust the lighting area of DMD. Fig. 1 Shading 1.

  • Page 25: Chapter 4. Electrical Adjustment

    “SS2” on SS menu. Model setting (Process menu) 1) Check the fixed value. 1) Select the following group and subject. PG-F310X: 0 Group: CONFIRM XG-F315X: 0 Subject: MODEL Adjustment of CW index 1) Signal input: Send 256 STEP color bar.
  • Page 26 PG-F310X/XG-F315X Check items Adjusting point Adjusting conditions Adjusting procedure Adjustment of RGB brightness 1) Select the following group and subjects. 1) Check the fixed value. Group: CONFIRM/AD Fixed value: 125 Subject: R-BRIGHT G-BRIGHT B-BRIGHT (Process GAMMA interlock) Adjustment of Component offset 1) Feed 10-step signal with 480P compo- 1) Check the fixed value.
  • Page 27 PG-F310X/XG-F315X Adjusting point Adjusting conditions Adjusting procedure DVI input operation check 1) Send the video signal to the DVI terminal. 1) Check that an image is properly projected through the digital input and analog input. Monitor out check 1) Send signals to COMPUTER 1 and 1) Check that the same images as seen on the COMPUTER 2.

  • Page 28: Adjustment Mode Process Menu

    PG-F310X/XG-F315X [2] Adjustment mode process menu 1st Layer 2nd Layer Default 1st Layer 2nd Layer Default OTHER SPECIAL USB-MODE ADJUST CW/Auto KS CW-INDEX HDCP-MODE PULSE-MODE K-SENS EDID EEP-SELECT AD/DLP R-CONT EEP-WP G-CONT EXIT B-CONT R-GAIN G-GAIN B-GAIN — — —...
  • Page 29 PG-F310X/XG-F315X 1. Adjustment of ballast unit output power (lamp power) 1. List of parts requiring adjustment When replacing the following parts, adjust the ballast unit output power (lamp power). Part name Ref No. Part code Cement resistor R923 RR-FZA002WJZZ Ballast Control PWB ——...

  • Page 30: Troubleshooting Table

    PG-F310X/XG-F315X CHAPTER 5. XGF315X TROUBLESHOOTING TABLE Service Manual [1] TROUBLESHOOTING TABLE Checking the basic operation Does the power LED light up or flash Has P1701 come off or is it loose? Fully insert the connector. in red or green? Does the set function with its keys or Go to “Main PWB check”.
  • Page 31 PG-F310X/XG-F315X Main PWB check Is 12.8 V applied to TL1703? Go to “Power supply ballast PWB check”. Is approx. 5.5 V applied to TL1702? Go to “Power supply ballast PWB check”. Is 12.5 V applied to TL3819? Check IC3808 and Q3805 and peripheral circuits.
  • Page 32 PG-F310X/XG-F315X DMD system check Check P2501 for breakage and solder crack and peripheral resis- tance for solder crack. Check SC9101 on the DMD PWB for breakage and solder crack. Is there any vertical stripe (block noise) on the Screen? The main PWB and DMD PWB are in poor contact.
  • Page 33 PG-F310X/XG-F315X Power supply PWB check Is 13 V applied to pins (2), (3) and (4) of the connector P704? Does the lamp turn on? Check the main PWB. Are connectors P704 and CN901 fully Securely insert the connectors. inserted? Is DC voltage of 380 V applied to both Is pin (11) of the connector P704 at Check the main PWB.
  • Page 34 PG-F310X/XG-F315X Checking the lamp light-up Does the lamp turn on when the Go to “Check when the lamp turns off power is turned on? soon after turning on”. Is the lamp tight in the socket? Securely insert the connectors. Has the FPC cable to SC3801 come Securely insert the connectors.
  • Page 35 PG-F310X/XG-F315X Check when the lamp turns off soon after turning on Have connectors P1703, P1721, Securely insert the connectors. P1722, P1723 and P1724 come off or are they loose? Is each cooling fan rotating? Check the cooling fan. The lamp light-up. After about 30 sec-...
  • Page 36 PG-F310X/XG-F315X RGB DVI-Analog and component signal check Send component signal or RGB signal of 1080i (or 720P) from COMPUTER/COMPONENT Terminal or DVI-I Terminal. Select COMPUTER or DVI-Analog using keys on the main unit or the remote control. Is image displayed normally? Are picture signals sent to TL3201, TL3204, and TL3205? Check IC3001 and the peripheral circuits.
  • Page 37 PG-F310X/XG-F315X S-VIDEO check Send S-Video signal (color signal) from S-Video Terminal. Select S-Video using keys on the main unit or the remote control. Is image displayed normally? Is image displayed in black and white? Check S-VIDEO terminal and peripheral circuits of Q3311.

  • Page 38: (Xg-F315X Only)

    PG-F310X/XG-F315X (XG-F315X only) Checking the LAN LAN communication is disabled even though connecting the con- trol PC with a LAN cable. The LINK LED (green) does not light Are the connection of connecting cable and the settings of IP Check the connecting cable and LAN settings. If the LAN address, sub-net address and default gateway correct? settings are unknown, contact the network administrator.
  • Page 39 PG-F310X/XG-F315X CHAPTER 6. XGF315X MAJOR IC INFORMATION Service Manual [1] MAJOR IC INFORMATION (XG-F315X ONLY) 1. Resetting after replacing IC8003 (EEPROM) MAC address returns to default. Follow the steps below to reset. Open the top cabinet of the projector and confirm the MAC address (MAC: ************) of the seal on the PWB.

  • Page 40: Chapter 7. Block Diagram/Overall Wiring Diagram [1] Block Diagram

    PG-F310X/XG-F315X CHAPTER 7. XGF315X BLOCK DIAGRAM/OVERALL WIRING DIAGRAM Service Manual [1] BLOCK DIAGRAM BLOCK DIAGRAM Ballast Power unit LAMP BIMETAL DC-DC Converter Low Voltage Starter IXB384WJ Audio AMP SP_MUTE S+,S- DA7056 IC3551 Audio Control AOUT_MUTE BA3530 Gate IC3533 AUDIO-IN (RCA L,R)

  • Page 41: Color Wheel

    PG-F310X/XG-F315X Main unit LAMP STANDBY(G/R) LAMP(G/R) TEMP.(R) MB88346 IC3561 TEMP1_AD Thermistor 16F819 Leaf SW IC3562 Gate Tilt. Sensor LAMP FAN FAN CTRL FANLOCK IC1703 Q1703 Q1710 EXHAUST FAN / POWER Q1711 Q1712 EXHAUST FAN / MID GPIO EXHAUST FAN / FRONT...

  • Page 42: Overall Wiring Diagram

    PG-F310X/XG-F315X [2] OVERALL WIRING DIAGRAM OVERALL WIRING DIAGRAM RH-HXA025WJPZ TEMP SENSOR Lamp QCNW-F877WJQZ 7 – 3...
  • Page 43 PG-F310X/XG-F315X 7 – 4...

  • Page 44: Main Unit

    PG-F310X/XG-F315X CHAPTER 8. XGF315X PRINTED WIRING BOARD Service Manual [1] MAIN Unit MAIN Unit (Side-A) 8 – 1...
  • Page 45 PG-F310X/XG-F315X 8 – 2...
  • Page 46 PG-F310X/XG-F315X MAIN Unit (Chip Parts Side-A) 8 – 3...
  • Page 47 PG-F310X/XG-F315X 8 – 4...
  • Page 48 PG-F310X/XG-F315X MAIN Unit (Side-B) 8 – 5...
  • Page 49 PG-F310X/XG-F315X 8 – 6...
  • Page 50 PG-F310X/XG-F315X MAIN Unit (Chip Parts Side-B) 8 – 7...
  • Page 51 PG-F310X/XG-F315X 8 – 8...

  • Page 52: Dmd Unit

    PG-F310X/XG-F315X [2] DMD Unit DMD Unit (Side-A) DMD Unit (Chip Parts Side-A) SC9101 C9102 R9102 TH9102 C9101 R9103 C9506 C9508 C9507 C9509 C9502 C9504 C9322 FB9303 R9302 R9304 FB9301 C9317 C9304 L9301 C9316 C9315 D9304 C9308 C9306 C9307 IC9301 FB9302...
  • Page 53 PG-F310X/XG-F315X DMD Unit (Side-B) 8 – 10...
  • Page 54 PG-F310X/XG-F315X [3] BALLAST POWER Unit BALLAST POWER Unit (Side-A) 8 – 11...
  • Page 55 PG-F310X/XG-F315X 8 – 12...
  • Page 56 PG-F310X/XG-F315X BALLAST POWER Unit (Side-B) 8 – 13...
  • Page 57 PG-F310X/XG-F315X 8 – 14...
  • Page 58 PG-F310X/XG-F315X BALLAST POWER Unit (Chip Parts Side-B) R731 R739 C717 C720 C735 C734 R752 R751 R750 D714 R749 C709 R719 R722 R741 R717 D705 R707 R735 R734 C733 D704 R732 R733 R743 R742 D718 D719 R746 R747 R744 R745 C916...
  • Page 59 PG-F310X/XG-F315X C710 C707 R752 R751 R750 R749 D712 R741 C751 D723 R755 D713 D722 R723 C718 R724 R757 R712 D710 R756 D707 C715 D721 R721 R738 R713 R706 R718 D724 D709 R764 R702 R714 R715 C719 R701 R711 D708 R758...
  • Page 60 PG-F310X/XG-F315X [4] BALLAST CONTROL Unit BALLAST CONTROL Unit (Side-A) BALLAST CONTROL Unit (Chip Parts Side-A) P7701 D7717 Q7712 R7768 R7761 D7715 R7756 C7745 C7753 C7754 D7701 R7804 R7810 C7709 D7714 R7719 R7775 C7742 C7712 C7747 R7726 C7710 R7793 D7713 C7715...
  • Page 61 PG-F310X/XG-F315X BALLAST CONTROL Unit (Side-B) BALLAST CONTROL Unit (Chip Parts Side-B) R7709 R7735 R7702 Q7701 R7730 R7705 C7702 R7729 R7710 C7706 R7703 R7713 C7703 R7748 R7781 R7706 R7718 R7711 R7786 R7785 C7711 C7738 R7753 R7701 C7723 C7728 R7752 R7808 R7716...
  • Page 62 PG-F310X/XG-F315X [5] PHOTO SENSOR Unit PHOTO SENSOR Unit (Chip Parts Side-A) PHOTO SENSOR Unit (Side-A) IC1102 PHOTO SENSOR Unit (Chip Parts Side-B) PHOTO SENSOR Unit (Side-B) P1101 R1107 C1103 C1102 IC1101 C1104 R1109 R1105 R1106 R1103 R1104 R1102 R1101 C1101...
  • Page 63 PG-F310X/XG-F315X [6] R/C RECEIVER Unit R/C RECEIVER Unit (Chip Parts Side-A) R/C RECEIVER Unit (Side-A) C1122 RMC1121 R/C RECEIVER Unit (Chip Parts Side-B) R/C RECEIVER Unit (Side-B) P1121 8 – 20...
  • Page 64 PG-F310X/XG-F315X [7] TERMINAL Unit TERMINAL Unit (Chip Parts Side-A) TERMINAL Unit (Side-A) D1202 FB1202 D1201 FB1201 R1210 TERMINAL Unit (Chip Parts Side-B) TERMINAL Unit (Side-B) 8 – 21...
  • Page 65 PG-F310X/XG-F315X [8] CAP Unit CAP Unit (Side-A) CAP Unit (Chip Parts Side-B) CAP Unit (Side-B) R1151 R1155 R1152 R1154 R1153 8 – 22...
  • Page 66 PG-F310X/XG-F315X CHAPTER 9. XGF315X WAVEFORMS Service Manual [1] WAVEFORMS Taking Trigger detection Taking Trigger detection Taking Trigger detection P704(14) SC3801(1) P1703(2) LAMP-CON CWY1 CWINDEX H:4ms/div H:400us/div H:4ms/div V:1V/div V:2V/div V:1V/div Taking Trigger detection Taking Trigger detection IC3201(70) IC3201(71) Q901(GATE) HSOUT...

  • Page 67: Description Of Schematic Diagram

    PG-F310X/XG-F315X CHAPTER 10. XGF315X SCHEMATIC DIAGRAM Service Manual [1] DESCRIPTION OF SCHEMATIC DIAGRAM 1. VOLTAGE MEASUREMENT CONDITION: 1. Voltages at test points are measured at the supply voltage of AC 100V/CROSS 10V-240. Signals are fed by a color bar signal gener- ator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.
  • Page 68 PG-F310X/XG-F315X [2] SCHEMATIC DIAGRAM MAIN UNIT-1 (PG-F310X) 10 – 2...
  • Page 69 PG-F310X/XG-F315X 10 – 3...
  • Page 70 PG-F310X/XG-F315X MAIN UNIT-1 (XG-F315X) 10 – 4...
  • Page 71 PG-F310X/XG-F315X 10 – 5...
  • Page 72 PG-F310X/XG-F315X MAIN UNIT-2 (PG-F310X) 10 – 6...
  • Page 73 PG-F310X/XG-F315X 10 – 7...
  • Page 74 PG-F310X/XG-F315X MAIN UNIT-2 (XG-F315X) 10 – 8...
  • Page 75 PG-F310X/XG-F315X 10 – 9...
  • Page 76 PG-F310X/XG-F315X MAIN UNIT-3 (PG-F310X) 10 – 10...
  • Page 77 PG-F310X/XG-F315X 10 – 11...
  • Page 78 PG-F310X/XG-F315X MAIN UNIT-3 (XG-F315X) 10 – 12...
  • Page 79 PG-F310X/XG-F315X 10 – 13...
  • Page 80 PG-F310X/XG-F315X MAIN UNIT-4 (PG-F310X) 10 – 14...
  • Page 81 PG-F310X/XG-F315X 10 – 15...
  • Page 82 PG-F310X/XG-F315X MAIN UNIT-4 (PG-F315X) 10 – 16...
  • Page 83 PG-F310X/XG-F315X 10 – 17...
  • Page 84 PG-F310X/XG-F315X MAIN UNIT-5 (PG-F310X) 10 – 18...
  • Page 85 PG-F310X/XG-F315X 10 – 19...
  • Page 86 PG-F310X/XG-F315X MAIN UNIT-5 (XG-F315X) 10 – 20...
  • Page 87 PG-F310X/XG-F315X 10 – 21...
  • Page 88 PG-F310X/XG-F315X MAIN UNIT-6 (PG-F310X) 10 – 22...
  • Page 89 PG-F310X/XG-F315X 10 – 23...
  • Page 90 PG-F310X/XG-F315X MAIN UNIT-6 (PG-F315X) 10 – 24...
  • Page 91 PG-F310X/XG-F315X 10 – 25...
  • Page 92 PG-F310X/XG-F315X MAIN UNIT-7 (PG-F310X) 10 – 26...
  • Page 93 PG-F310X/XG-F315X 10 – 27...
  • Page 94 PG-F310X/XG-F315X MAIN UNIT-7 (XG-F315X) 10 – 28...
  • Page 95 PG-F310X/XG-F315X 10 – 29...
  • Page 96 PG-F310X/XG-F315X MAIN UNIT-8 (PG-F310X) 10 – 30...
  • Page 97 PG-F310X/XG-F315X 10 – 31...
  • Page 98 PG-F310X/XG-F315X MAIN UNIT-8 (XG-F315X) 10 – 32...
  • Page 99 PG-F310X/XG-F315X 10 – 33...
  • Page 100 PG-F310X/XG-F315X MAIN UNIT-9 (PG-F310X) 10 – 34...
  • Page 101 PG-F310X/XG-F315X 10 – 35...
  • Page 102 PG-F310X/XG-F315X MAIN UNIT-9 (XG-F315X) 10 – 36...
  • Page 103 PG-F310X/XG-F315X 10 – 37...
  • Page 104 PG-F310X/XG-F315X MAIN UNIT-10 (PG-F310X) 10 – 38...
  • Page 105 PG-F310X/XG-F315X 10 – 39...
  • Page 106 PG-F310X/XG-F315X MAIN UNIT-10 (XG-F315X) 10 – 40...
  • Page 107 PG-F310X/XG-F315X 10 – 41...
  • Page 108 PG-F310X/XG-F315X MAIN UNIT-11 (XG-F315X) 10 – 42...
  • Page 109 PG-F310X/XG-F315X 10 – 43...
  • Page 110 PG-F310X/XG-F315X MAIN UNIT-12 (XG-F315X) 10 – 44...
  • Page 111 PG-F310X/XG-F315X 10 – 45...
  • Page 112 PG-F310X/XG-F315X DMD UNIT-1 10 – 46...
  • Page 113 PG-F310X/XG-F315X 10 – 47...
  • Page 114 PG-F310X/XG-F315X DMD UNIT-2 10 – 48...
  • Page 115 PG-F310X/XG-F315X 10 – 49...
  • Page 116 PG-F310X/XG-F315X DMD UNIT-3 10 – 50...
  • Page 117 PG-F310X/XG-F315X 10 – 51...

  • Page 118: Ballast Power Unit

    PG-F310X/XG-F315X BALLAST POWER UNIT 10 – 52...
  • Page 119 PG-F310X/XG-F315X AND SHADED COMPONENTS=SAFETY RELATED PARTS 10 – 53...

  • Page 120: Ballast Control Unit

    PG-F310X/XG-F315X BALLAST CONTROL UNIT 10 – 54...
  • Page 121 PG-F310X/XG-F315X AND SHADED COMPONENTS=SAFETY RELATED PARTS 10 – 55...

  • Page 122: Photo Sensor Unit

    PG-F310X/XG-F315X PHOTO SENSOR UNIT 10 – 56...
  • Page 123 PG-F310X/XG-F315X 10 – 57...

  • Page 124: R/C Receiver Unit

    PG-F310X/XG-F315X R/C RECEIVER UNIT 10 – 58...
  • Page 125 PG-F310X/XG-F315X 10 – 59...

  • Page 126: Terminal Unit

    PG-F310X/XG-F315X TERMINAL UNIT 10 – 60...
  • Page 127 PG-F310X/XG-F315X 10 – 61...

  • Page 128: Cap Unit

    PG-F310X/XG-F315X CAP UNIT 10 – 62...
  • Page 129 PG-F310X/XG-F315X 10 – 63...
  • Page 130 PG-F310X/XG-F315X — M E M O — 10 – 64...

  • Page 131: Parts Guide

    PG-F310X/XG-F315X PartsGuide PARTS GUIDE No. S57J2XGF315X/ DATA PROJECTOR PG-F310X XG-F315X MODELS Note: The reference numbers on the PWB are arranged in alphabetical order. CONTENTS PRINTED WIRING BOARD DUNTKE182WEF0 ASSEMBLIES (TERMINAL Unit) DUNTKE167WEF0 (DMD Unit) DUNTKE225WEF0 (CAP Unit) DUNTKE168FMF0/1 (MAIN Unit)
  • Page 132 [1] PRINTED WIRING BOARD ASSEMBLIES BALLAST POWER Ass'y (with Ballast Control Unit) DSETUE169FMG0 DMD Unit (without the DMD chip) DUNTKE167WEF0 MAIN Unit (XG-F315X) DUNTKE168FMF0 MAIN Unit (PG-F310X) DUNTKE168FMF1 BALLAST CONTROL Unit DUNTKE170WEF0 DUNTKE171WEF0 PHOTO SENSOR Unit R/C RECEIVER Unit DUNTKE172WEF0...
  • Page 133 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) C1701 Capacitor 0.1 25V Ceramic VCKYCY1EB104KY C1702 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C1703 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C1704 Capacitor 10 16V Electrolytic VCEAPF1CW106MY C1705 Capacitor 0.1 25V Ceramic...
  • Page 134 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) C2033 Capacitor 0.1 25V Ceramic VCKYCY1EB104KY C2036 Capacitor 0.1 25V Ceramic VCKYCY1EB104KY C2037 Capacitor 0.1 25V Ceramic VCKYCY1EB104KY C2038 Capacitor 10 16V Ceramic RC-KZA510WJPZY C2039 Capacitor 0.1 25V Ceramic...
  • Page 135 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) C2234 Capacitor 0.1 25V Ceramic VCKYCY1EB104KY C2235 Capacitor 10 16V Ceramic RC-KZA510WJPZY C2236 Capacitor 0.1 25V Ceramic VCKYCY1EB104KY C2237 Capacitor 0.1 25V Ceramic VCKYCY1EB104KY C2238 Capacitor 0.1 25V Ceramic...
  • Page 136 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) C3210 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C3211 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C3212 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C3213 Capacitor 22 6.3V Electrolytic VCEAPF0JW226MY C3216 Capacitor 0.1 25V Ceramic...
  • Page 137 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) C3565 Capacitor 10 16V Ceramic RC-KZA510WJPZY C3566 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C3567 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C3569 Capacitor 1 10V Ceramic VCKYCY1AB105KY C3570 Capacitor 0.1 25V Ceramic...
  • Page 138 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) C8035 Capacitor 220 6.3V Electrolytic (XG-F315X) VCEAPF0JW227MY C8036 Capacitor 0.1 25V Ceramic (XG-F315X) VCKYCY1EF104ZY C8037 Capacitor 0.1 25V Ceramic (XG-F315X) VCKYCY1EF104ZY C8038 Capacitor 0.1 25V Ceramic (XG-F315X)
  • Page 139 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) D3501 Zener Diode EX0259TA 5.6V RH-EX0259TAZZY D3502 Zener Diode EX0259TA 5.6V RH-EX0259TAZZY D3511 Zener Diode EX0259TA 5.6V RH-EX0259TAZZY D3512 Zener Diode EX0259TA 5.6V RH-EX0259TAZZY D3521 Zener Diode EX0259TA 5.6V...
  • Page 140 IC HiCCDLP223-1 VHiCCDLP223-1Y IC2205 IC EDX5116ACSE-3C VHiEDX511CC-1Q IC2232 IC K4S641632K-UC75 RH-iXB742WJZZQ IC2261 IC BR24L32F-WE2 VHiBR24L32F-1Y IC2262 IC iXC120WJ (Program Data F-ROM) (PG-F310X) RH-iXC120WJZZQ IC2262 IC iXC236WJ (Program Data F-ROM) (XG-F315X) RH-iXC236WJZZQ IC2531 IC NC7WZ125K8X VHiNC7WZ125-1Y IC2562 IC TC74LVX4053FT(EL) (XG-F315X) VHiLV4053FT-1Y IC2801...
  • Page 141 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) IC3802 IC 2506224-0002 RH-iXB689WJN1Q IC3803 IC MP1583DN-LF-Z VHiMP1583++-1Y IC3804 IC TC7SH08FU(TE85L,JF) VHiTC7SH08U-1Y IC3807 IC BD5246G-TR VHiBD5246G+-1Y IC3808 IC BD5246G-TR VHiBD5246G+-1Y IC8001 VHiHD7618BG-1Q IC HD6417618BGN100V (XG-F315X) IC8002 IC PQ1MX55M2SPQ (XG-F315X)
  • Page 142 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) Q3311 Transistor 2SC3928A-T112-1R VS2SC3928AR-1Y Q3321 Transistor 2SC3928A-T112-1R VS2SC3928AR-1Y Q3501 Transistor 2SC3928A-T112-1R VS2SC3928AR-1Y Q3502 Transistor 2SC3928A-T112-1R VS2SC3928AR-1Y Q3511 Transistor 2SC3928A-T112-1R VS2SC3928AR-1Y Q3512 VS2SC3928AR-1Y Transistor 2SC3928A-T112-1R Q3521 Transistor 2SC3928A-T112-1R...
  • Page 143 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) R1784 Resistor 10 1/16W Metal Oxide VRS-CY1JF100JY R1785 Resistor 10 1/16W Metal Oxide VRS-CY1JF100JY R1787 Resistor 100 1/16W Metal Oxide VRS-CY1JF101JY R1789 Resistor 100 1/16W Metal Oxide...
  • Page 144 VRS-CH1JF103JY R2555 Resistor 10k 1/16W Metal Oxide (XG-F315X) VRS-CY1JF103JY R2556 Resistor 100 1/16W Metal Oxide (XG-F315X) VRS-CY1JF101JY R2557 Resistor 0 1/16W Metal Oxide (PG-F310X) VRS-CY1JF000JY R2558 Resistor 0 1/16W Metal Oxide (PG-F310X) VRS-CY1JF000JY R2559 Resistor 10k 1/16W Metal Oxide VRS-CJ1JF103JY...
  • Page 145 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) R2578 Resistor 470 1/10W Metal Oxide VRS-TV1JD471JY R2579 Resistor 680 1/10W Metal Oxide VRS-TV1JD681JY R2582 Resistor 470 1/10W Metal Oxide VRS-TV1JD471JY R2583 Resistor 680 1/10W Metal Oxide...
  • Page 146 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) R3050 Resistor 0 1/16W Metal Oxide VRS-CY1JF000JY R3051 Resistor 75 1/4W Metal Oxide VRS-TW2ED750JY R3052 Resistor 75 1/4W Metal Oxide VRS-TW2ED750JY R3053 Resistor 75 1/4W Metal Oxide...
  • Page 147 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) R3321 Resistor 75 1/10W Metal Oxide VRS-TV1JD750FY R3322 Resistor 3.3k 1/16W Metal Oxide VRS-CY1JF332JY R3323 Resistor 5.6k 1/16W Metal Oxide VRS-CY1JF562JY R3324 Resistor 220 1/16W Metal Oxide...
  • Page 148 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) R3806 Resistor 0 1/10W Metal Oxide VRS-TV1JD000JY R3807 Resistor 0 1/10W Metal Oxide VRS-TV1JD000JY R3809 Resistor 10k 1/16W Metal Oxide VRS-CY1JF103FY R3810 Resistor 10k 1/16W Metal Oxide...
  • Page 149 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] DUNTKE168FMF0/1 (MAIN Unit) R8031 Resistor 10k 1/16W Metal Oxide (XG-F315X) VRS-CY1JF103JY R8032 Resistor 3.3k 1/16W Metal Oxide (XG-F315X) VRS-CY1JF332JY R8033 Resistor 100 1/16W Metal Oxide (XG-F315X) VRS-CJ1JF101JY R8036 Resistor 100 1/16W Metal Oxide (XG-F315X)
  • Page 150 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [4] DUNTKE169WEF0 (BALLAST POWER Unit) C715 Capacitor 1500p 50V Ceramic VCKYCY1HB152KY C716 Capacitor 0.1 450V Metallized Plastic Film RC-FZA126WJZZ C717 Capacitor 0.47 25V Ceramic VCKYTV1EB474KY C718 Capacitor 1000p 50V Ceramic VCKYCY1HB102KY...
  • Page 151 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [4] DUNTKE169WEF0 (BALLAST POWER Unit) FB703 Ferrite Bead RBLN-0020CEZZ+ FB707 Ferrite Bead RBLN-0020CEZZ+ FB901 Ferrite Bead RBLN-A007WJZZY FB902 Ferrite Bead RBLN-A007WJZZY FH701 Fuse Holder QFSHD1013CEZZ+ FH702 Fuse Holder QFSHD1014CEZZ+ IC702 IC TA78L12F(TE12L,F)
  • Page 152 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [4] DUNTKE169WEF0 (BALLAST POWER Unit) R771 Resistor 1k 1/2W Metal Oxide VRS-SV2HC102J R901 Resistor 330k 1/10W Metal Oxide VRS-TV1JD334FY R902 Resistor 330k 1/10W Metal Oxide VRS-TV1JD334FY R903 Resistor 330k 1/10W Metal Oxide...
  • Page 153 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [5] DUNTKE170WEF0 (BALLAST CONTROL Unit) C7728 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C7729 Capacitor 1000p 50V Ceramic VCKYCY1HB102KY C7730 Capacitor 1 16V Ceramic VCKYTV1CB105KY C7731 Capacitor 0.22 16V Ceramic VCKYCY1CB224KY C7733 Capacitor 1000p 50V Ceramic...
  • Page 154 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [5] DUNTKE170WEF0 (BALLAST CONTROL Unit) R7739 Resistor 12k 1/16W Metal Oxide VRS-CY1JF123JY R7740 Resistor 15k 1/16W Metal Oxide VRS-CY1JF153JY R7741 Resistor 15k 1/16W Metal Oxide VRS-CY1JF153JY R7742 Resistor 30k 1/16W Metal Oxide...
  • Page 155 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [6] DUNTKE171WEF0 (PHOTO SENSOR Unit) Connecting Cord QCNW-C221WJQZ [7] DUNTKE172WEF0 (R/C RECEIVER Unit) C1121 Capacitor 0.1 25V Ceramic VCKYCY1EF104ZY C1122 Capacitor 100 16V Electrolytic VCEAPF1CW107MY P1121 Plug 3Pin (RC) QPLGN0364TAZZY R1121...
  • Page 156 PG-F310X/XG-F315X [10] CABINET AND MECHANICAL PARTS 11-3 11-4 11-2 11-1 2-2-6 2-2-5 2-2-4 2-2-3 2-2-2 2-11 2-2-1 2-10 2-8-1 2-8-2 2-1-4 2-1-3 2-7-1 2-7-2 2-1-1 2-1-2...
  • Page 157 LX-BZ3100CEF7 11-2 DVI Nut, x2 NSFTZ0134CEFW 11-3 Button Shield PSLDCA027WJKZ 11-4 Terminal Shield PSLDMB152WJFW HiNDPC628WJZZ PSB Label (PG-F310X for Singapore) PSB Label (XG-F315X for Singapore) HiNDPC629WJZZ Speaker Holder LHLDZA579WJKZ Support, x2 LHLDZA580WJKZ PWB Support LHLDZA590WJKZ Screw, x13 LX-BZ3100CEF7 Exhaust Fan (Lamp)
  • Page 158 PG-F310X/XG-F315X [11] OPTICAL MECHANISM PARTS 4-11 4-20 4-21 4-29 4-31 4-29 4-34 4-35 4-10 4-29 4-29 4-22 4-15 4-29 4-29 4-31 4-25 4-27 4-16 4-29 4-18 4-31 4-17 4-24 4-29 4-19 4-5-4 4-12 4-23 4-26 4-5-2 4-5-1 4-5-3 4-29 4-30...
  • Page 159 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [11] OPTICAL MECHANISM PARTS Optical Mechanism Unit CCHSKA019WEFH Engine Base LCHSKA019WJF1 Mirror Holder LHLDZA572WJKZ Rod Holder Base LHLDZA573WJKZ Rod Holder Cover LHLDZA574WJKZ Color Wheel Ass'y CFiLWA123WEF0 4-5-1 Color Wheel PFiLWA123WJZZ 4-5-2...
  • Page 160 SECL ER Information (for Canada) TGAN-A233WJZZ TGAN-A811WJZZ SECL Warranty (for Canada) SEC Warranty (XG-F315X for U.S.A) TGAN-A809WJZZ SEC Warranty (PG-F310X for U.S.A) TGAN-A810WJZZ ER Sticker (for U.S.A and Canada) (PG-F310X/XG-F315X) TLABZA255WJZZ Polyethylene Bag SSAKA0160CEZZ DIN-D-sub RS-232C adaptor QCNWGA091WJPZ Lens Cap Ass'y CCAPHA024WJSA WEEE Caution Sheet (Except U.S.A and Canada)
  • Page 161 PG-F310X/XG-F315X [13] PACKING PARTS (NOT REPLACEMENT ITEM)
  • Page 162 PG-F310X/XG-F315X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [13] PACKING PARTS (NOT REPLACEMENT ITEM) Packing Case (PG-F310X) SPAKCD515WJZZ Packing Case (XG-F315X) SPAKCD516WJZZ Accessory Case SPAKFB263WJZZ Wrapping Paper SPAKPA360WJZZ Buffer Material SPAKXA768WJZZ Bar Code Label TLABVA333WJZZ Recycle Label (for Europe except U.K) TLABZA610WJZZ C.W.Mark, x2 (for Europe and Singapore)
  • Page 163 PG-F310X/XG-F315X - M E M O -...
  • Page 164 PG-F310X/XG-F315X COPYRIGHT © 2007 BY SHARP CORPORATION ALL RIGHTS RESERVED. No Part of this publication may be reproduced, stored in a retrieval system, or transmitted in any from or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

This manual is also suitable for:

Xg-f315x

Table of Contents
