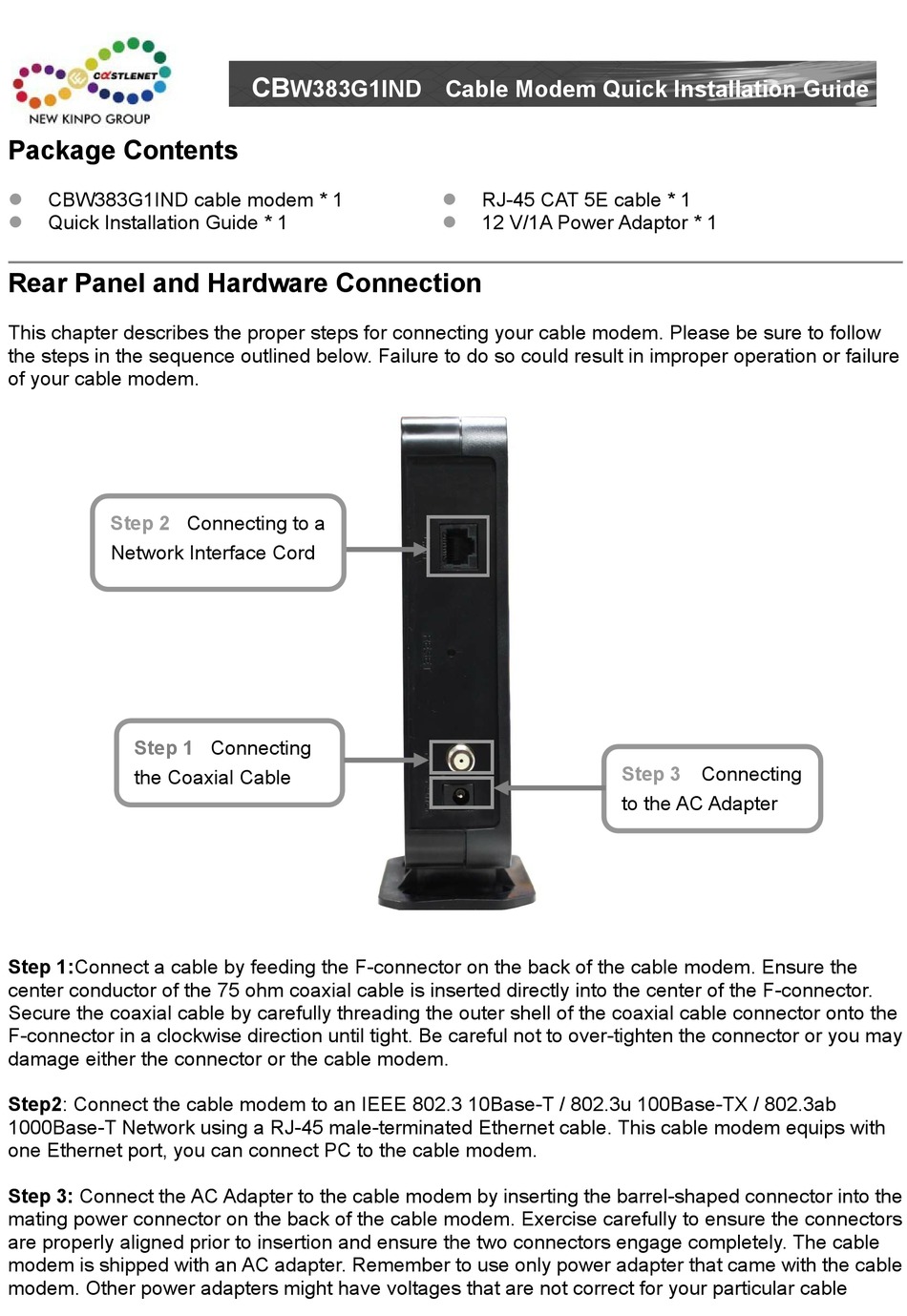

CastleNet CBW383G1IND Quick Installation Manual

Package Contents

 CBW383G1IND cable modem * 1
Quick Installation Guide * 1


Rear Panel and Hardware Connection

This chapter describes the proper steps for connecting your cable modem. Please be sure to follow
the steps in the sequence outlined below. Failure to do so could result in improper operation or failure
of your cable modem.
Step 2
Network Interface Cord
Step 1
the Coaxial Cable
Step 1:Connect a cable by feeding the F-connector on the back of the cable modem. Ensure the
center conductor of the 75 ohm coaxial cable is inserted directly into the center of the F-connector.
Secure the coaxial cable by carefully threading the outer shell of the coaxial cable connector onto the
F-connector in a clockwise direction until tight. Be careful not to over-tighten the connector or you may
damage either the connector or the cable modem.
Step2: Connect the cable modem to an IEEE 802.3 10Base-T / 802.3u 100Base-TX / 802.3ab
1000Base-T Network using a RJ-45 male-terminated Ethernet cable. This cable modem equips with
one Ethernet port, you can connect PC to the cable modem.
Step 3: Connect the AC Adapter to the cable modem by inserting the barrel-shaped connector into the
mating power connector on the back of the cable modem. Exercise carefully to ensure the connectors
are properly aligned prior to insertion and ensure the two connectors engage completely. The cable
modem is shipped with an AC adapter. Remember to use only power adapter that came with the cable
modem. Other power adapters might have voltages that are not correct for your particular cable
CB
W383G1IND Cable Modem Quick Installation Guide
Connecting to a
Connecting
 RJ-45 CAT 5E cable * 1
12 V/1A Power Adaptor * 1

Step 3 Connecting
to the AC Adapter
