CastleNet CBW209D1 Quick Installation Manual

CBW209D1 Cable Modem Quick Installation Guide

Package Contents

 CBW209D1 cable modem * 1
 Quick Installation Guide * 1

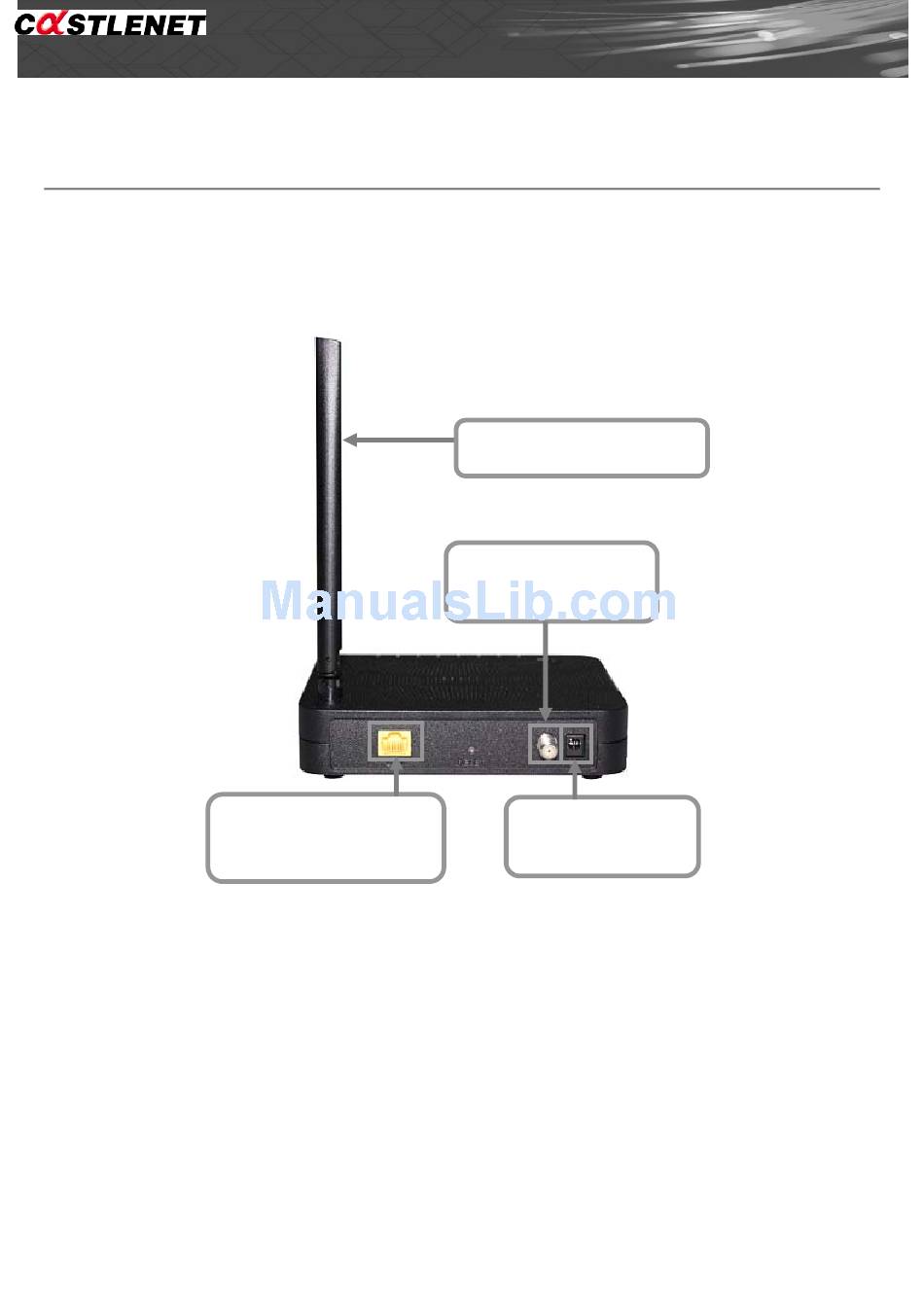

Rear Panel and Hardware Connection

This chapter describes the proper steps for connecting your cable modem. Please be sure to follow
the steps in the sequence outlined below. Failure to do so could result in improper operation or failure
of your cable modem.
Step 1:Connect a cable by feeding the F-connector on the back of the cable modem. Ensure the
center conductor of the 75 ohm coaxial cable is inserted directly into the center of the F-connector.
Secure the coaxial cable by carefully threading the outer shell of the coaxial cable connector onto the
F-connector in a clockwise direction until tight. Be careful not to over-tighten the connector or you may
damage either the connector or the cable modem.
Step2: Connect the cable modem to an IEEE 802.3 10Base-T / 802.3u 100Base-TX Network using a
RJ-45 male-terminated Ethernet cable. This cable modem equips with one Ethernet port, you can
connect one PC to the cable modem at the same time if necessary.
Step 3: Connect the AC Adapter to the cable modem by inserting the barrel-shaped connector into the
mating power connector on the back of the cable modem. Exercise carefully to ensure the connectors
are properly aligned prior to insertion and ensure the two connectors engage completely. The cable
modem is shipped with an AC adapter. Remember to use only power adapter that came with the cable
modem. Other power adapters might have voltages that are not correct for your particular cable
modem. Using a power adapter with the wrong voltage can damage the cable modem.
Step 4: Adjust the antenna if necessary.
Step 2 Connecting to a
Network Interface Cord
 RJ-45 CAT 5E cable * 1
 12 V/1 A Power Adaptor * 1
Step 4 Adjust the Antenna
Step 1 Connecting
the Coaxial Cable
Step 3 Connecting
to the AC Adapter
