Using the SKM 300 G4
These sections contain detailed information about using the SKM 300 G4.
You can find information on installation and startup of the SKM 300 G4 un-
der "Installing the SKM 300 G4".

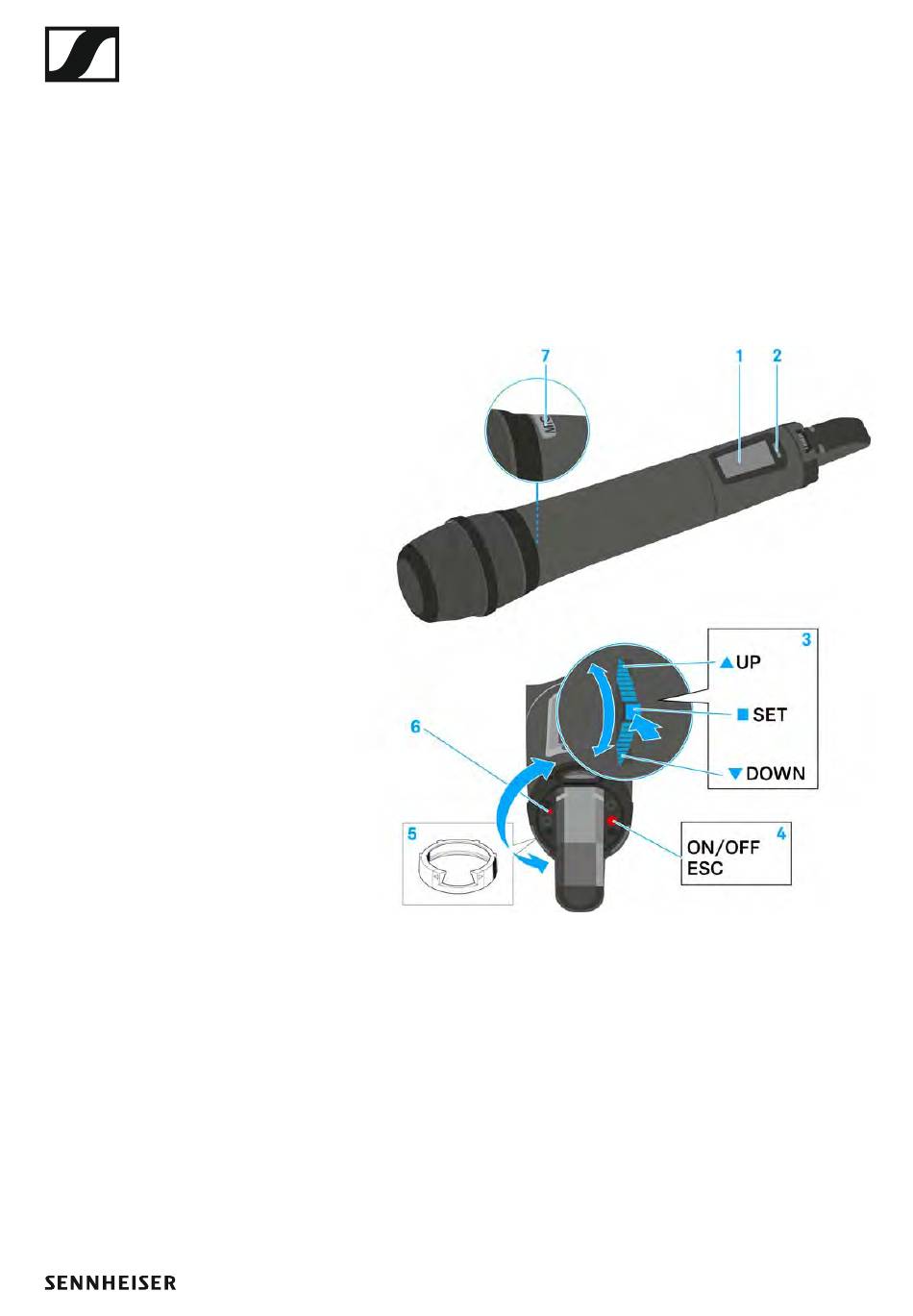

Operating elements of the SKM 300 G4 handheld
transmitter
►
1
Display panel
• See "Displays on the SKM 300 G4 handheld transmitter display pan-
el"
2
Infra-red interface
• See "Synchronizing devices"
3
DOWN, UP and SET multi-function switch
• See "Buttons for navigating the SKM 300 G4 menu"
4
ON/OFF button with ESC function in the operating menu
• Switch the transmitter on or off
See "Switching the SKM 300 G4 handheld transmitter on and off"
• Escape function in the menu
See "Buttons for navigating the SKM 300 G4 menu"
• Deactivating the RF signal
See "Deactivating the RF signal (RF mute)"
Using the SKM 300 G4
95
