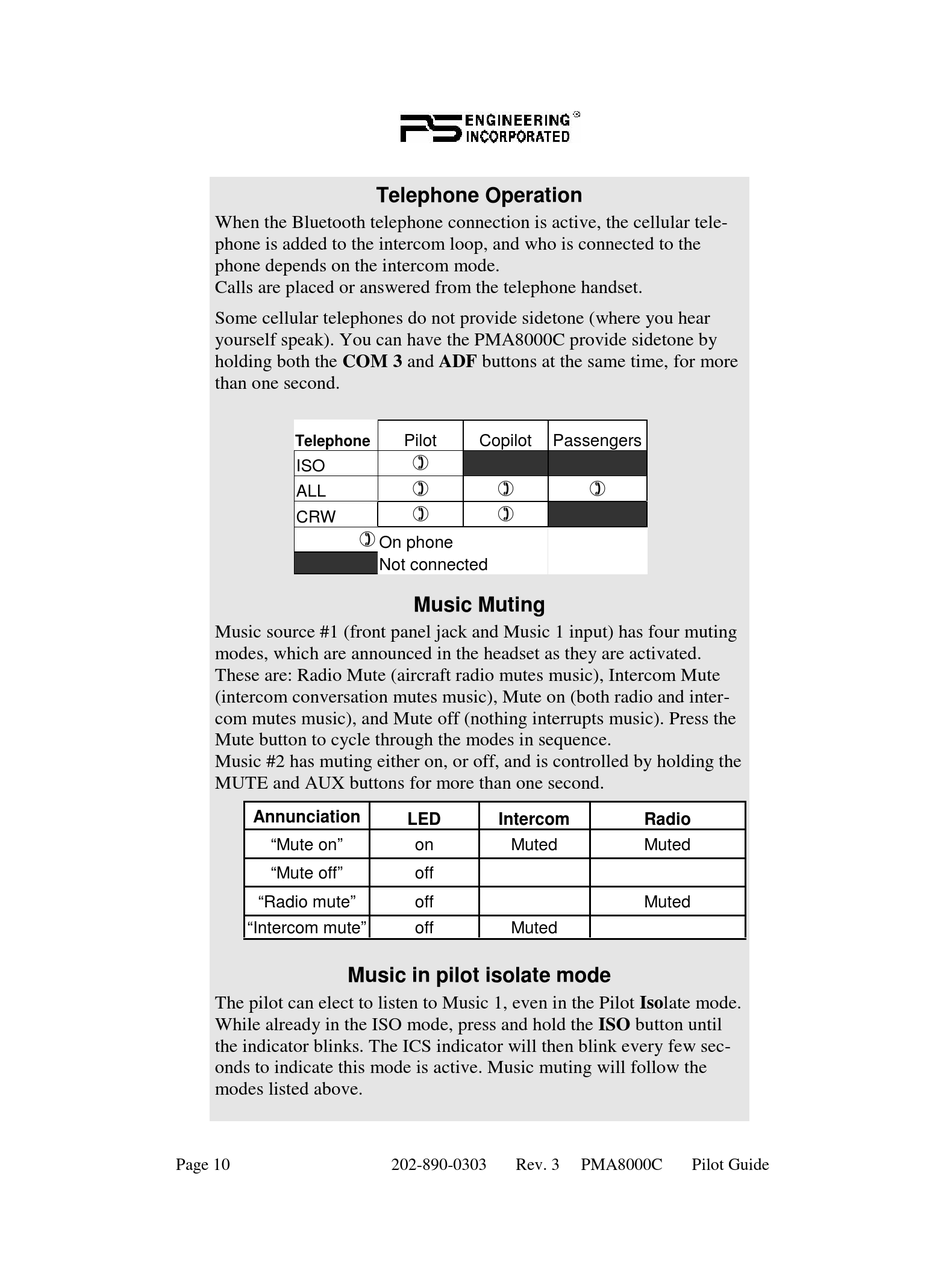

When the Bluetooth telephone connection is active, the cellular tele-

phone is added to the intercom loop, and who is connected to the

phone depends on the intercom mode.

Calls are placed or answered from the telephone handset.

Some cellular telephones do not provide sidetone (where you hear

yourself speak). You can have the PMA8000C provide sidetone by

holding both the COM 3 and ADF buttons at the same time, for more

than one second.

Telephone

ISO

ALL

CRW



Music source #1 (front panel jack and Music 1 input) has four muting

modes, which are announced in the headset as they are activated.

These are: Radio Mute (aircraft radio mutes music), Intercom Mute

(intercom conversation mutes music), Mute on (both radio and inter-

com mutes music), and Mute off (nothing interrupts music). Press the

Mute button to cycle through the modes in sequence.

Music #2 has muting either on, or off, and is controlled by holding the

MUTE and AUX buttons for more than one second.

Annunciation

"Mute on"

"Mute off"

"Radio mute"

"Intercom mute"

Music in pilot isolate mode

The pilot can elect to listen to Music 1, even in the Pilot Isolate mode.

While already in the ISO mode, press and hold the ISO button until

the indicator blinks. The ICS indicator will then blink every few sec-

onds to indicate this mode is active. Music muting will follow the

modes listed above.

Page 10
