Summary of Contents for Puretec ESR2

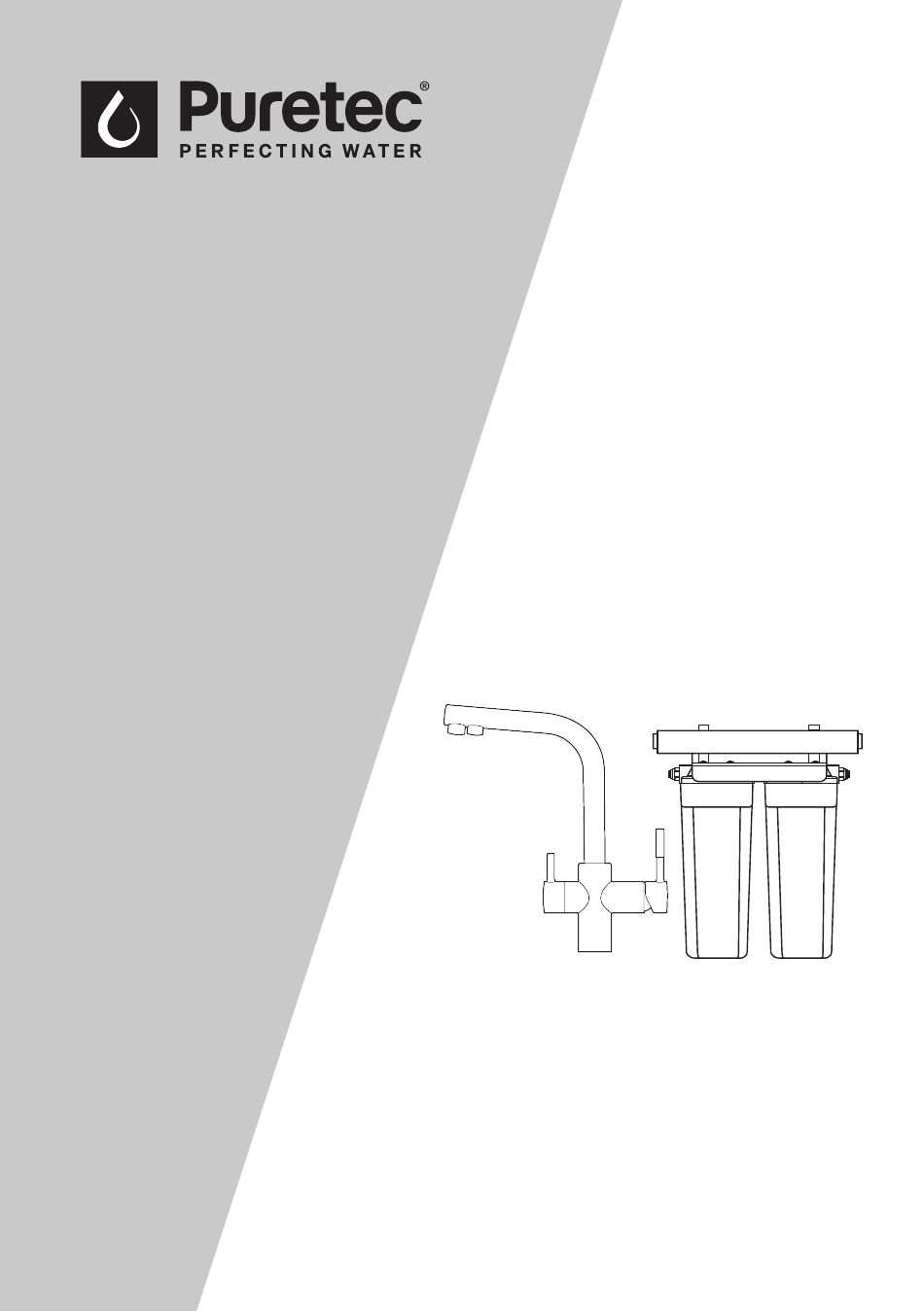

- Page 1 User Guide Undersink Drinking Water System with Tripla Mixer Tap ESR2 - Series With Tripla For correct operation & installation it is essential to observe these instructions.
-
Page 2: Table Of Contents
Tripla T2 Parts Description ....................17 Tripla T3 Parts Description ....................18 Tripla T4 Parts Description ....................19 Tripla T5 Parts Description ....................20 Tripla T6 Parts Description ....................21 Warranty ..........................22-23 Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... -
Page 3: Operation
The system is designed for metropolitan supply water but can be used in other situa- tions. For other types of water supply please contact your local Puretec stockist or call our Puretec Customer Service Helpline prior to installing the tap. -
Page 4: Replacement Guide
To maintain the high quality of the purified water the cartridges need changing every 6 months (this is dependant on water quality and usage). You can obtain replacement cartridges and/or lamp from your local Puretec dealer and to maintain performance and warranty use genuine Puretec replacements. -
Page 5: Servicing
Servicing Periodically clean the aerator for any lodged sediment that may restrict flow. A Puretec water filter is highly recommended for product longevity. Should it be necessary to have your mixer serviced while under warranty, please carry out the following procedure:... -
Page 6: Mixer Tap Installation Guide
Note: It is important to flush out the supply pipes to the mixer before connecting the flexible hoses, with the initial installation, so no foreign matter can enter into the cartridges. A Puretec Water Filter is highly recommended for product longevity. Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... -
Page 7: Assembly
Then, use a wrench to lock the retainer nut. Rubber Spacer Zinc Spacer Locking Retainer Screw Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware... -
Page 8: Water Connection Patterns
For TRIPLA T1 & T2 COLD Water Connection Water Filter Connection Retainer Screw HOT Water Connection For TRIPLA T3 to T6 COLD Water Connection Retainer Screw Water Filter Connection Retainer Screw HOT Water Connection Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... -
Page 9: Battery Installation
Unscrew handle then remove cartridge by unscrewing it anti-clockwise, using 5/8” socket. Install cartridge by completing removal instructions as above, in reverse order. • Ensure cartridge is firmly tightened not over tightened. Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware... -
Page 10: Part 2 Filter Cartridge Installation
Radfire™ to ensure proper operation and continuous protection. Iron less than 0.3 mg/L Hydrogen Sulphide less than 0.05 mg/L Suspended Solids less than 10 mg/L Manganese less than 0.05 mg/L Hardness less than 110 mg/L Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... -
Page 11: Installation Procedure
10. Run the system for at least 10 minutes (turn the faucet lever to the upright position) to remove carbon fines. Water may appear milky, but this is normal and is only tiny air bubbles that will clear after a short period. Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware... -
Page 12: Filter Parts Description
Tube, nut and ferrule (see separate breakdown on fig. 3) Flexible tubing LED Faucet Filter assembly UV module (ESR2 model only) Mounting bracket Figure 2 HOW TO USE QUICK CONNECT FITTINGS 2. Fitting grips before it seals. Ensure tube is pushed in to tube stop. -
Page 13: Cartridge Installation/Changeout
Check all connection to prevent leakage. Insert UV lamp into stainless steel chamber and put on the rubber cap to complete the cleaning. Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware... -
Page 14: Uv Installation
Note: For initial use, wait 3-5 minutes to allow water to pass through the whole unit. Turn on point of use to let water flow through the unit for 2-3 minutes to release air and impurities from system. Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... - Page 15 Tripla Parts Descriptions Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware...
-
Page 16: Tripla T1 Parts Description
38. handle cap 36. magnetic seat 17. housing 37. magnet 40. circuit board 41. battery seat 18. screw 19. rubber 45. flexible washer tube ½” inlet/outlet hose stainless washer 21. brass Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... -
Page 17: Tripla T2 Parts Description
40. Circuit board 38. O-ring 44. flexible 15. Screw 41. Battery seat tube ½” 42. flexible tube ½” rubber 44. flexible tube ½” washer 17. stainless washer 18. brass nut Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware... -
Page 18: Tripla T3 Parts Description
14. battery seat 31. plunger 32. cap 38. housing screw 35. body 39. o-ring 34. canopy 36. nut 37. stopper 40. screw 44. flexible tube washer washer brass 47. wrench Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... -
Page 19: Tripla T4 Parts Description
23. stem post 24. upper 38-2. nut 25. lower 26. seat 37. handle cap 27. stopper 39. stopper 26. seat 40. washer 41. screw 45. flexible tube washer washer brass Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware... -
Page 20: Tripla T5 Parts Description
23. stem post 24. upper 38-2. nut 25. lower 26. seat 37. handle cap 27. stopper 39. stopper 26. seat 40. washer 41. screw 45. flexible tube washer washer brass Installation & Operation Manual Copyright © Puretec Pty Ltd 2015... -
Page 21: Tripla T6 Parts Description
26. stem post 27. upper 41-1. nut 28. lower 29. seat 40. handle cap 30. stopper 42. stopper 29. seat 43. washer 44. screw 48. flexible tube washer washer brass Copyright © Puretec Pty Ltd 2015 Puretec Tripla™ | Triple Action Tapware... -
Page 22: Warranty
Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 14-16 Bailey Street, St Marys SA 5064, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under Installation &... - Page 23 Warranty/New Zealand This warranty is given by Puretec Ltd, Reg. No 4464398, PO Box 43192 Mangere, Auck- land 2153, telephone no. 0800 130 140 and email at sales@puretec.co.nz. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Consumer Guarantees Act.
