Summary of Contents for Puretec SH SERIES

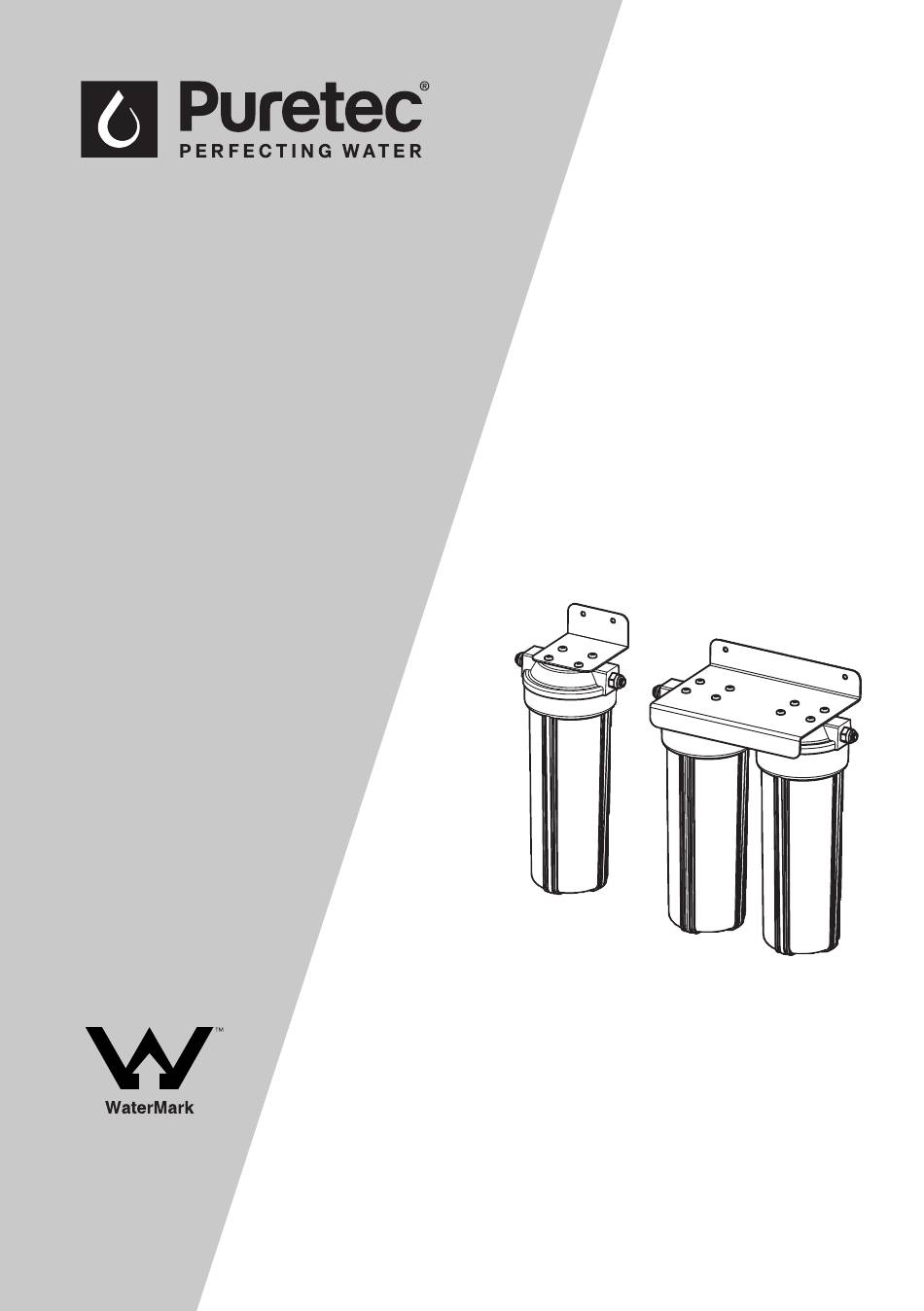

- Page 1 User Guide Undersink | Drinking Water Systems TS SERIES AS/NZS 3497 Licence No. WM 74617 SH SERIES Australian Certification Services For correct operation & installation it is essential to observe these instructions. APR2018...
-
Page 2: Table Of Contents
Cartridge Installation ......................4 Installation Guide ........................5 Installation Procedure ......................6 Parts Description ........................7 Battery Installation ......................... 8 Quick Connect Fittings ........................9 Performance Data ........................ 10 Warranty ............................11 Contact Information ........................12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018... -
Page 3: Introduction
Introduction Puretec Customer Service Thank you for purchasing a Puretec undersink drinking water system. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly. -
Page 4: Cartridge Installation
To maintain the high quality of the purified water the cartridges need changing every 6 months (this is dependant on water quality and usage). You can obtain replacement cartridges from your local Puretec dealer and to maintain performance and warranty use genuine Puretec replacements. -
Page 5: Installation Guide
Installation Guide Installation Procedure 1. Select suitable location that is close to the point of filtered water delivery (eg. sink). Remember to allow access room for changing filters and a suitable place where water spillage will not cause damage. Location should not be in direct sunlight. 2. -
Page 6: Installation Procedure
6. Reset LED indicator by following instructions on page 8. 7. Restore water supply & check for leaks, rectifying them, if any, before leaving the unit. After installing cartridges flush unit for 5 - 10 minutes. Installation & Operation Manual Copyright © Puretec Pty Ltd 2018... -
Page 7: Parts Description
Parts Description FIGURE 1 DESCRIPTION Smart Tee™ ½"M x ½"F x ¼"T Flexible Tubing Pressure limiting Multivalve Housing Assembly (Twin Pictured) Mounting Bracket Tube, Nut and Ferrule Tube insert Faucet Lock Nut and Washer Black plastic washer Black Rubber Washer Escutcheon Plate Long Reach Faucet Undersink | Drinking Water Filter Systems... -
Page 8: Battery Installation
(usage has Note: red light flashes exceeded 3,000 minutes or 12 months). twice and then followed Please change the battery when by the blue light changing the cartridges. Installation & Operation Manual Copyright © Puretec Pty Ltd 2018... -
Page 9: Quick Connect Fittings
Quick Connect Fittings FIGURE 3 HOW TO USE QUICK CONNECT FITTINGS Fitting grips before it seals. Ensure Cut the tube square and push in to tube is pushed in to tube stop. the tube stop. For metal tube remove burrs and chamfer tube end to prevent O-Ring seal being damaged. -
Page 10: Performance Data
(TS200) inactivate bacteria and virises unless II(a) and II(b) is passed Turbidity & Particulate Reduction Reduces cloudiness Taste & Odour Reduction Reduces taste & odours Chemical Treatment Decreases chlorine 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018... -
Page 11: Warranty
Applicable to all above, is that the Warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs...
