Summary of Contents for Puretec CO-RO4

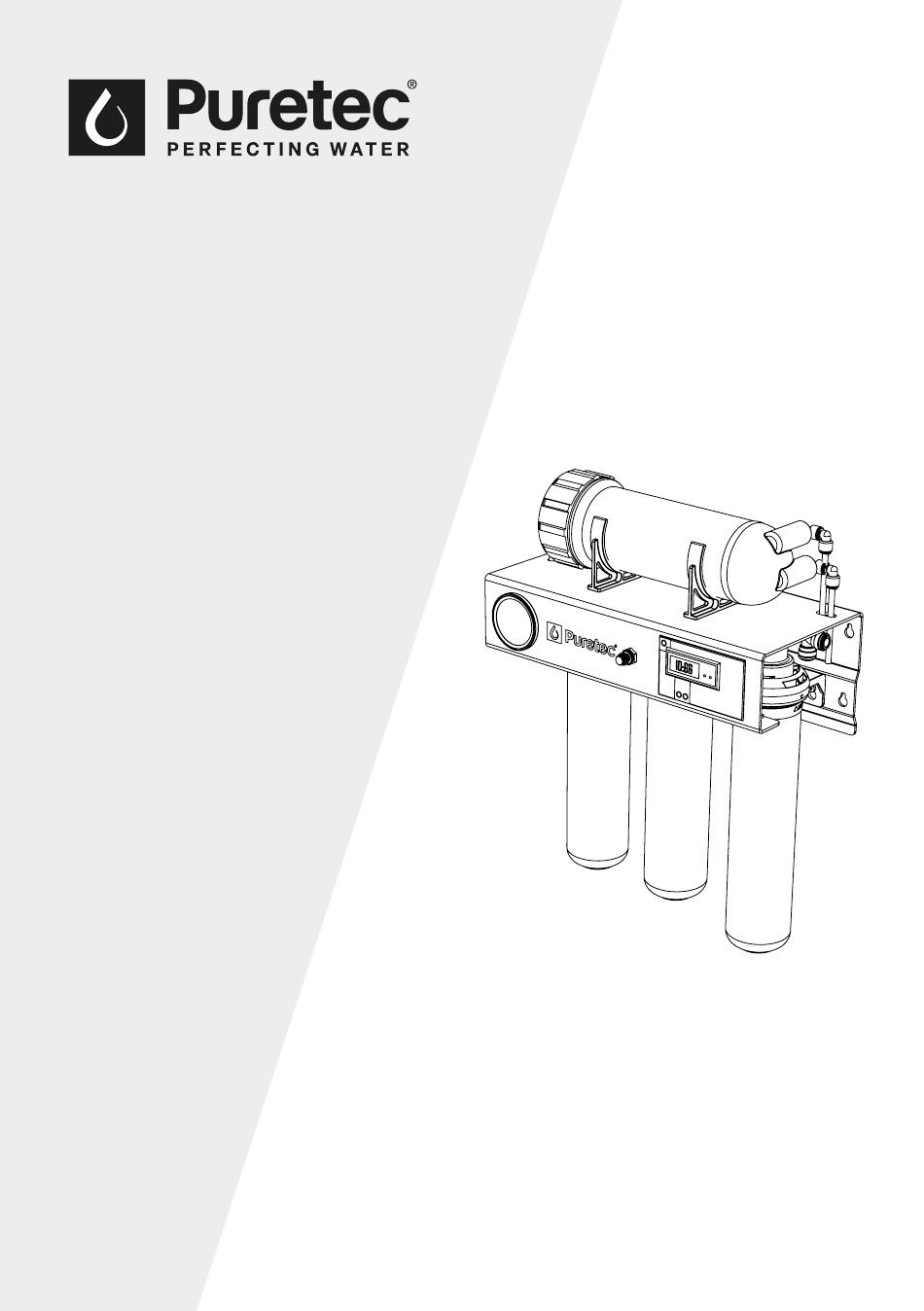

- Page 1 User Guide CO-RO4 Food Service Reverse Osmosis Water Treatment System For correct operation & installation it is essential, to observe these instructions. SEPT2022...
-
Page 2: Table Of Contents
4°C (40°F ) and 38°C (100°F). Do not install on hot water lines. All new membranes must be flushed for 3-5 minutes. Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2022... -
Page 3: The Food Service Reverse Osmosis System
• Ensure that the water supply is within the Operating Conditions (see Page 8) of the RO, refer to the Specification Sheet for further information (contact Puretec if parameters are outside the guidelines). Note: For optimal system performance, use the system for at least 2 minutes continuously each day. -
Page 4: Flow Schematic
Flow Schematic Flow Schematic Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2022... -
Page 5: Tools & Materials Required
Tubing cutters Location of System The Puretec Food Service RO System is design to mounted, either on a wall or within a cabinet. The RO system can also be located in a location away from the outlet. A nearby water source and drain point are required. -
Page 6: Installation
Pure (blue) TDS Meter Needle Valve Inlet (white) Drain Tube (black) Shut-Off Valve & Tube (blue) Gauge Holding Tank Connection (optional) 1.5" Air Gap Required Above Flood Rim RO Assembly Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2022... - Page 7 Note: If utilising a holding tank, turn the Valve into the OPEN position and allow 5-10 minutes for the tank to fill. Flush/drain the tank twice in a row to purge the system. 12. Your system is now ready for use. Copyright © Puretec Pty Ltd 2022 Food Service Reverse Osmosis System...
-
Page 8: Care & Maintenance
Open the seal/packaging on the new membrane, insert the double o-ring end of the membrane first. Tighten the cap by hand only. Turn the water on and flush the system for 3-5 minutes. Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2022... -
Page 9: Operating Conditions
Inlet Iron 0 mg/L [ppm] 0.1 mg/L [ppm] Inlet Manganese 0 mg/L [ppm] 0.05 mg/L [ppm] Inlet pH Dimensions RET3012-500 CO-S150 CO-R200 CO-T150 Depth 400 mm 534 mm 190 mm Copyright © Puretec Pty Ltd 2022 Food Service Reverse Osmosis System... -
Page 10: Troubleshooting
Increase tubing diameter for longer distances. Plugged prefilter. Replace plugged prefilter. Consider sediment prefilter for non-chlorinated applications. Scaled, fouled, or damaged RO Replace RO membranes. membrane. Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2022... -
Page 11: Warranty
3 years from date of purchase. To make a claim under the warranty, take the product and proof of purchase to place where you purchased the product, and they will lodge a Warranty Request with Puretec. 3 year warranty is 1 year parts and labour plus 2 years parts only. Excludes cartridges and membranes.
