1 INTRODUCTION
TagTemp-USB is a small portable electronic temperature logger. Its
internal sensor measures local environment temperature and logs
such values in an electronic memory. Logged data, or
ACQUISITIONS, can be later viewed and analyzed on a PC where
they can be opened in tabular and graph forms.
The LogChart II software enables to set up the device operation mode.
It is also used for viewing acquisitions. Other parameters such as end
of measurements, logging interval, etc., are easily defined through the
LogChart II software.
Acquisitions can also be exported to be analyzed in other
applications, such as spreadsheet programs.
1.1 IDENTIFICATION
The identification label is on the device body. Check if the features
described are in accordance with your order.

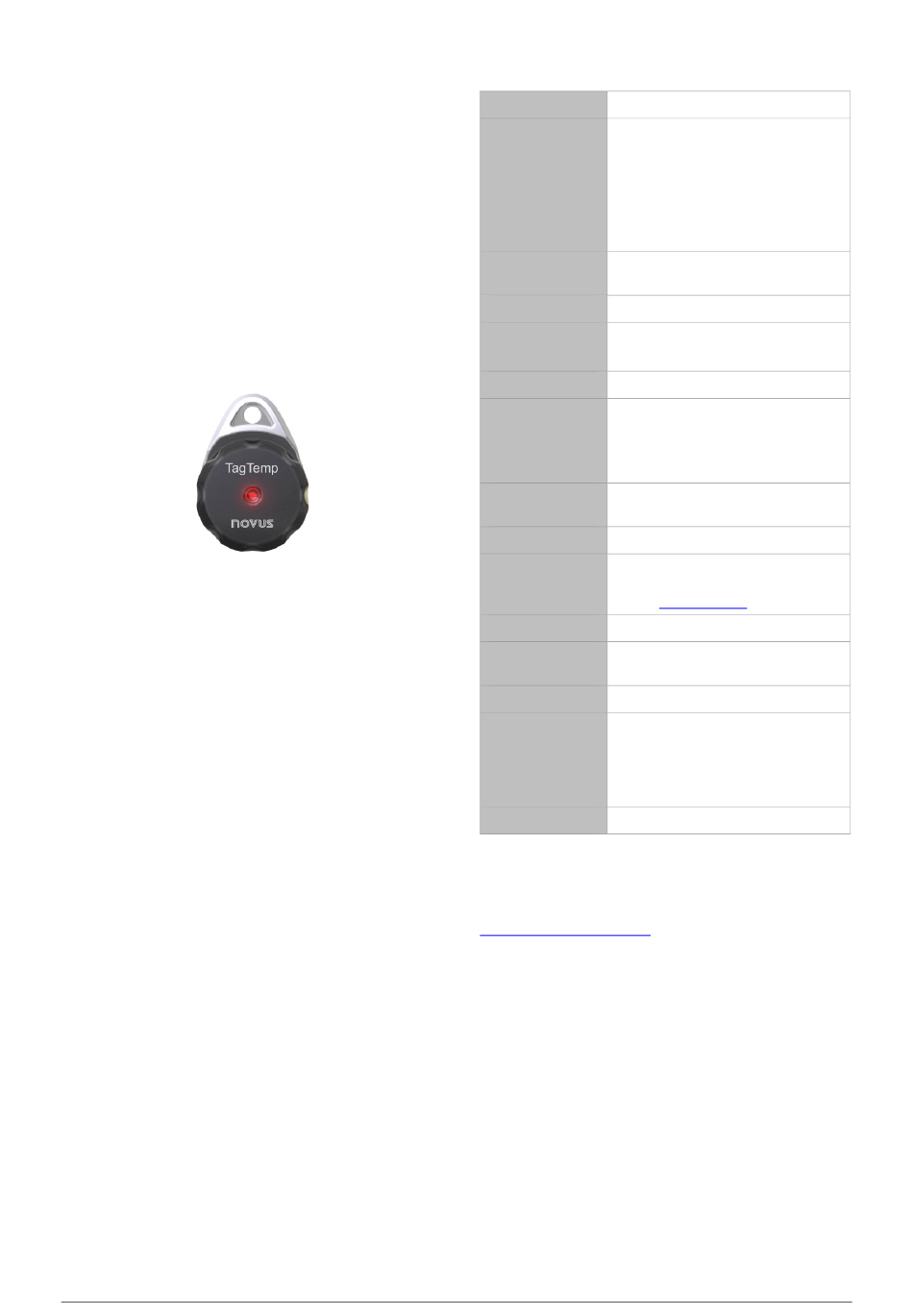

Fig. 01 – Front view of the device
Status indicator: This visual indicator reports the status of operation
of device through the number of flashes that occur in an interval of
five seconds. The states of operation are:
• One flash: The device is waiting to start the log in memory
(standby) or completed a series of logs in memory;
• Two flashes: the device is performing logs in memory;
• Three flashes: the device is or has gone through an alarm
condition and is not performing logs in memory;
• Four flashes: the device is or has gone through an alarm
condition and is performing logs in memory.
NOVUS AUTOMATION

2 TECHNICAL DATA

Measure Range Temperature: –20.0 °C to 70.0 °C.
± 0.5 °C @ 25 ºC.
± 1 °C max. along the entire measured
range.
Accuracy
Note: A measure error can be fixed using
the OFFSET parameter in the LogChart II
software.
Measurement
Temperature: 0.1 °C.
Resolutions
Memory capacity
32.000 (32 k) logs.
5 seconds min.
Measurement
Interval
18 hours max.
Supply
3.0 V lithium battery (CR2032), built-in
• More than 400 days – Sampling rate
of 1 minute.
Estimated battery
autonomy
• More than 500 days – Sampling rate
of 30 minutes.
Operating
From -20 °C to 70 °C
temperature
Case PC-ABS
Product suitable for applications requiring
Protection up to IP67 degree of protection. See
chapter
Dimensions
55 x 37,5 x 15 mm
Device - PC data
Proportional to the number of records. 20
transfer time seconds to 32,000 records.
PC Interface
Micro-USB cable
Configurator software for Windows ® 8, 7
LogChart ll and XP.
software operation
Menus in Portuguese, English or Spanish.
environment Sets up, reads and displays data on the
screen.
Certification
CE

3 OPERATION

It is only possible to operate the device after the LogChart II
software is installed to a PC, according to the steps described in
LOGCHART II SOFTWARE
communication between device and PC is performed with the aid of
the micro-USB cable.
The device operation mode set up is defined in advance by using the
LogChart II software. Each setting must be defined and the
consequences observed.
The device starts and stops logging as defined in settings.
SPECIAL CARE.
chapter of this manual. The
