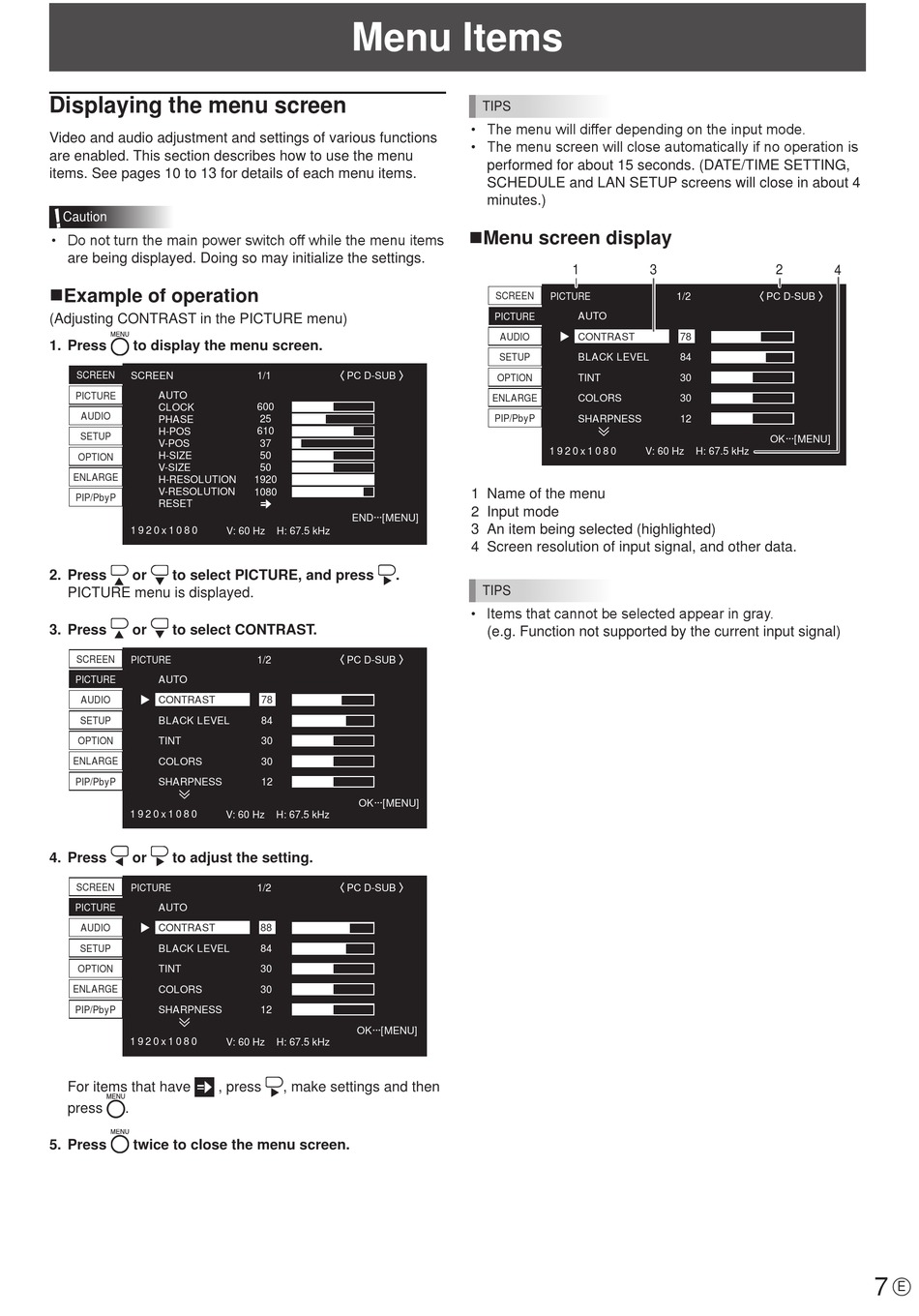

Displaying the menu screen

Video and audio adjustment and settings of various functions
are enabled. This section describes how to use the menu
items. See pages 10 to 13 for details of each menu items.
Caution
• Do not turn the main power switch off while the menu items
are being displayed. Doing so may initialize the settings.
nExample of operation
(Adjusting CONTRAST in the PICTURE menu)
1. Press to display the menu screen.
SCREEN SCREEN
PICTURE AUTO
CLOCK
AUDIO
PHASE
H-POS
SETUP
V-POS
H-SIZE
OPTION
V-SIZE
ENLARGE
H-RESOLUTION
V-RESOLUTION
PIP/PbyP
RESET
1 9 2 0 x 1 0 8 0
2. Press or to select PICTURE, and press
PICTURE menu is displayed.
3. Press or to select CONTRAST.
SCREEN PICTURE
PICTURE AUTO
AUDIO CONTRAST
SETUP BLACK LEVEL
OPTION TINT
ENLARGE COLORS
PIP/PbyP SHARPNESS
1 9 2 0 x 1 0 8 0
4. Press or to adjust the setting.
SCREEN PICTURE
PICTURE AUTO
AUDIO CONTRAST
SETUP BLACK LEVEL
OPTION TINT
ENLARGE COLORS
PIP/PbyP SHARPNESS
1 9 2 0 x 1 0 8 0
For items that have , press
press .
5. Press twice to close the menu screen.

Menu Items

1/1 PC D-SUB
600
25
610
37
50
50
1920
1080
END···[MENU]
V: 60 Hz H: 67.5 kHz
.
1/2 PC D-SUB
78
84
30
30
12
OK···[MENU]
V: 60 Hz H: 67.5 kHz
1/2 PC D-SUB
88
84
30
30
12
OK···[MENU]
V: 60 Hz H: 67.5 kHz
, make settings and then
TIPS
• The menu will differ depending on the input mode.
• The menu screen will close automatically if no operation is
performed for about 15 seconds. (DATE/TIME SETTING,
SCHEDULE and LAN SETUP screens will close in about 4
minutes.)
nMenu screen display
1
SCREEN
AUTO
AUDIO CONTRAST
SETUP BLACK LEVEL
OPTION TINT
ENLARGE
COLORS
PIP/PbyP SHARPNESS
1 9 2 0 x 1 0 8 0
1 Name of the menu
2 Input mode
3 An item being selected (highlighted)
4 Screen resolution of input signal, and other data.
TIPS
• Items that cannot be selected appear in gray.
(e.g. Function not supported by the current input signal)
3 2
1/2 PC D-SUB
78
84
30
30
12
OK···[MENU]
V: 60 Hz H: 67.5 kHz
4
7
E
