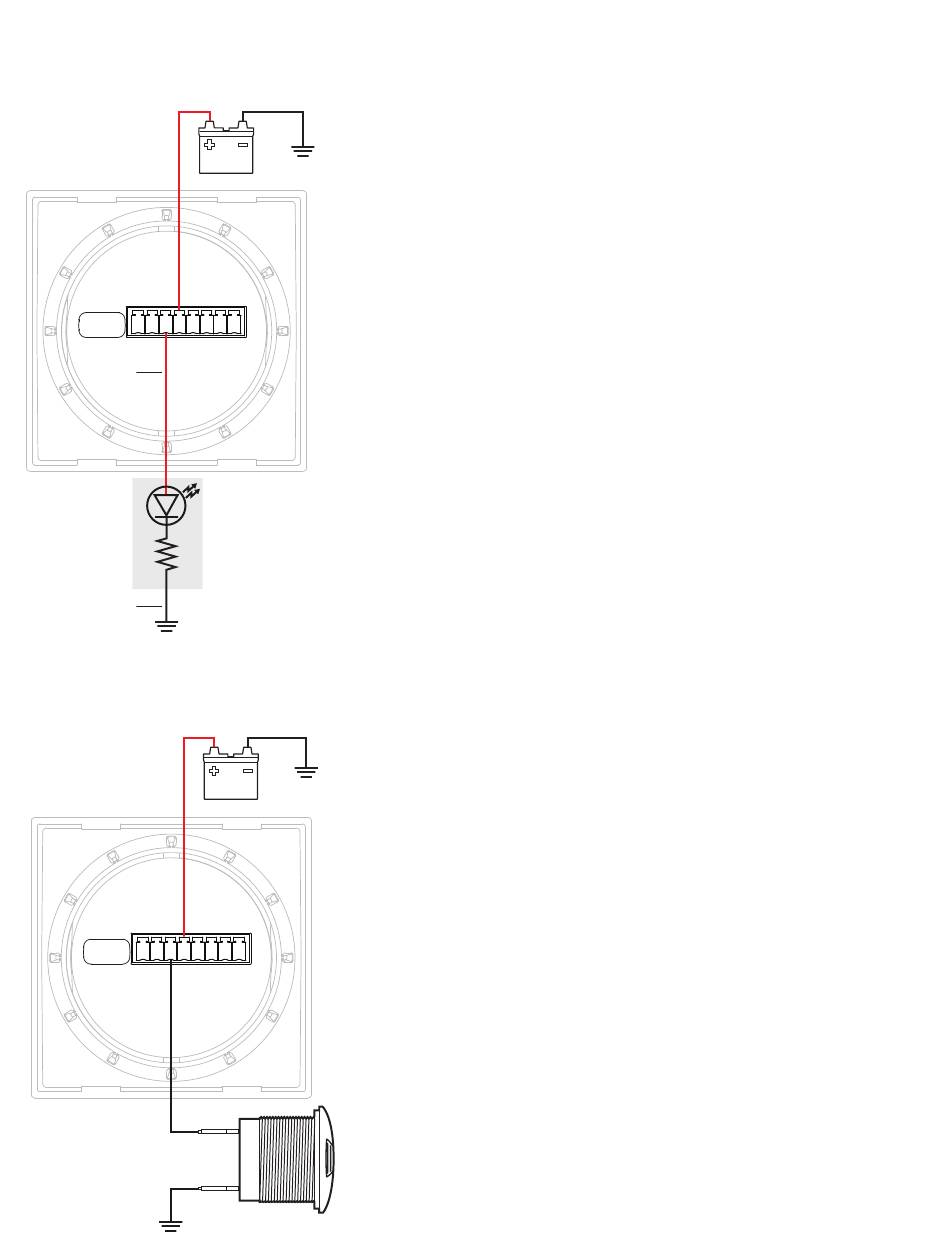

External LED
An external LED such PN 8171 can be connected to the Relay Output terminal. If the system is going to operate at more than 24V nominal, an additional
4K Ohms of resistance should be placed in-line with the LED.
LED
Supply
8 to 70V
1 2 3 4 5 6 7 8
Red Wire
Yellow Wire
External Alarm (1070 Floyd Bell Turbo)
The Relay+ terminal can support an external audible alarm. Such as the Floyd Bell Turbo Alarm (PN 1070).
External
Alarm
Supply
5 to 30V DC
1 2 3 4 5 6 7 8
+ Red
- Silver
LED,
12V/24V
8033, Amber
8171, Red
8172, Green
1070
7
