SmartLPR ® Access User Manual
1.

Introduction

1.1.
What SmartLPR
SmartLPR ® Access is a license plate recognition (LPR1
access lanes with barriers.
SmartLPR ® Access is based on an All-In-One concept, which embeds in a single equipment all
the operations needed for license plate recognition (image acquisition and further processing),
so that installation becomes much easier compared to systems using separate capture and
process units.
1.2.

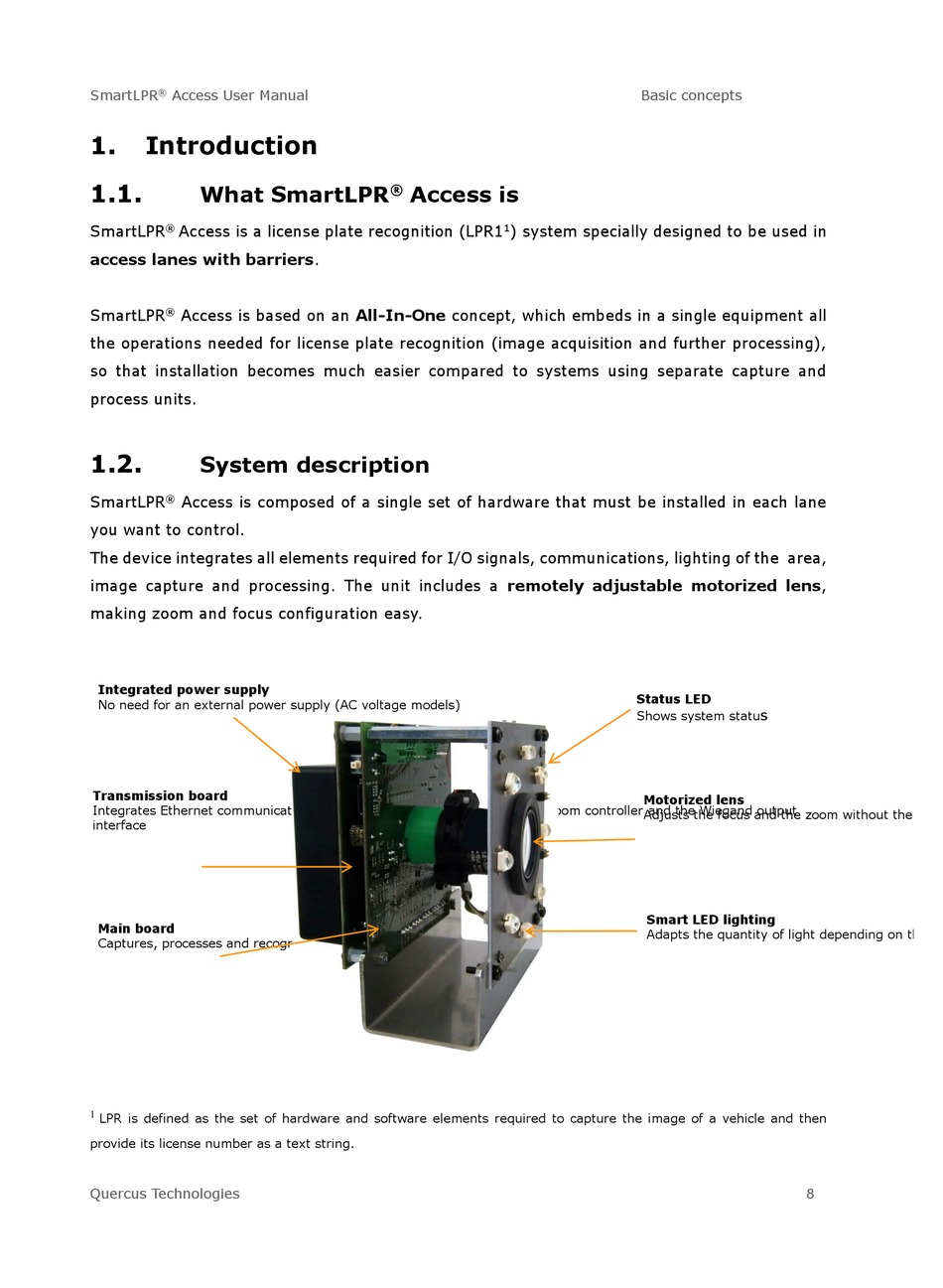

System description

SmartLPR ® Access is composed of a single set of hardware that must be installed in each lane
you want to control.
The device integrates all elements required for I/O signals, communications, lighting of the area,
image capture and processing. The unit includes a remotely adjustable motorized lens,
making zoom and focus configuration easy.
Integrated power supply
No need for an external power supply (AC voltage models)
Transmission board
Integrates Ethernet communication, digital input /outputs, the motorized zoom controller and the Wiegand output
interface
Main board
Captures, processes and recognizes the images
LPR is defined as the set of hardware and software elements required to capture the image of a vehicle and then
1
provide its license number as a text string.
Quercus Technologies
® Access is
1 ) system specially designed to be used in
Basic concepts
Status LED
s
Shows system statu
Motorized lens
Adjusts the focus and the zoom without the
Smart LED lighting
Adapts the quantity of light depending on th
