2.1. Front plate capture

2.1.1. Front plate capture
Recommended
Minimum distance
Maximum distance
The unit must always be installed at 2,5-3m from the barrier. In this type of installation, the
LPR unit captures the license plate when the vehicle arms the presence loop installed in line with

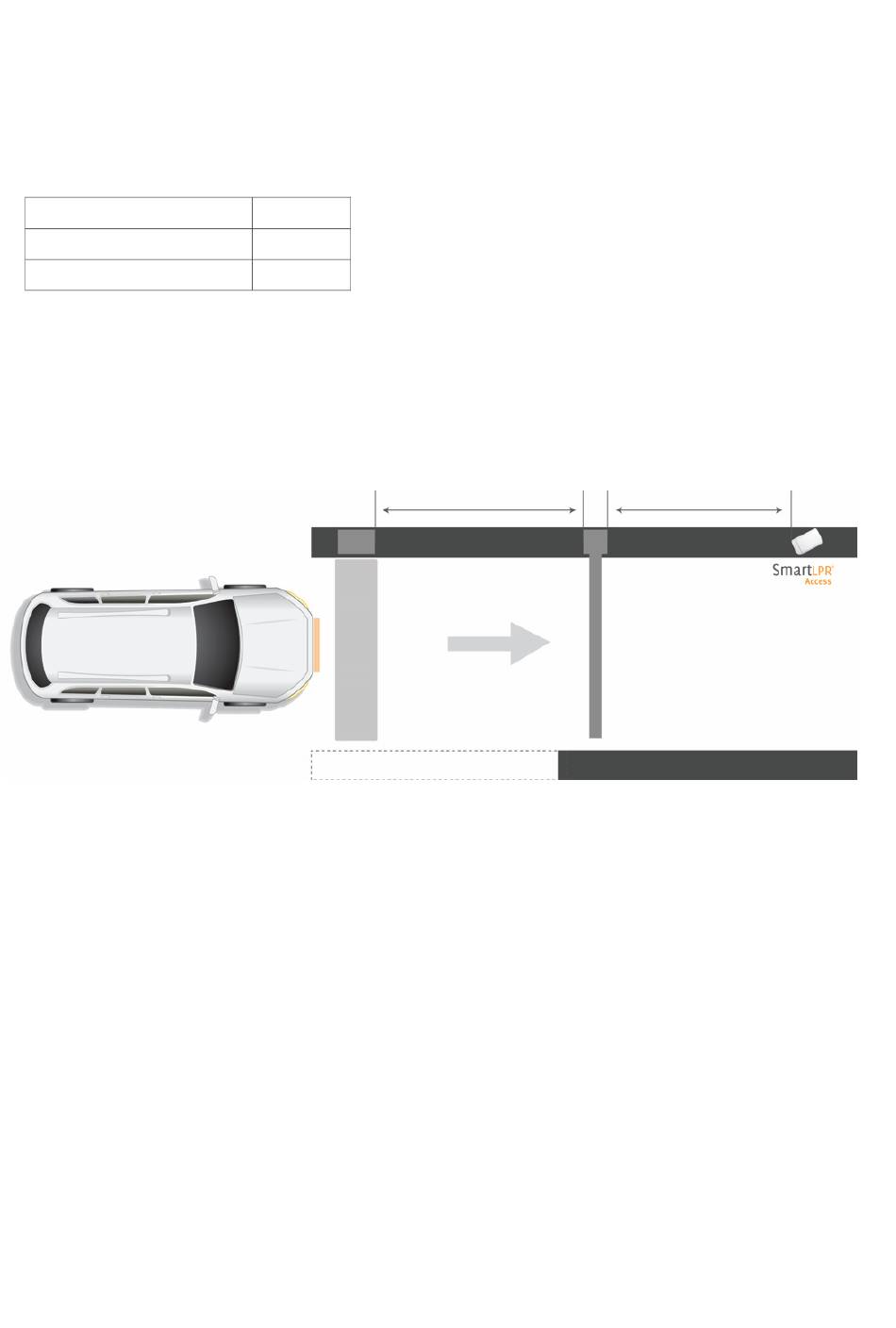

the ticket dispenser, as shown in the drawing below.
Warning:
The table above shows the recommended, minimum and maximum distance where you should
install the unit taking the barrier as reference.
Quercus Technologies
2,5 – 3 m
1,5 m
5 m
Presence detection sensor
3m
Barrier
Installation
2,5m
