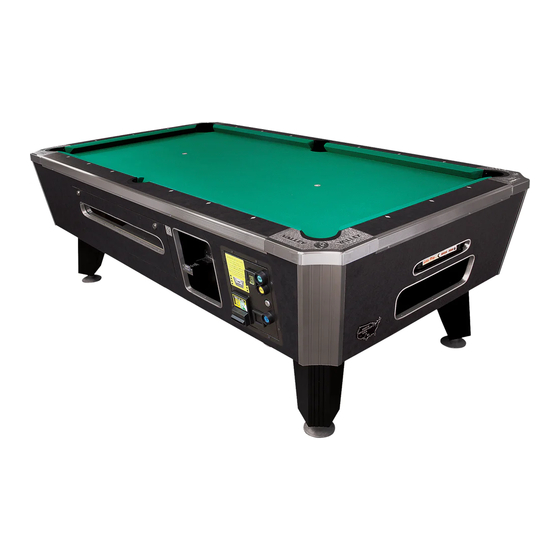

Valley Panther ZD-X
Service Manual and Instructions

Advertisement

Table of Contents
loading

Summary of Contents for Valley Panther ZD-X

  • Page 1 Valley Panther ZD-X Service Manual and Instructions...

  • Page 2: Table Of Contents

    Part# 850200130 The Valley Panther ZD-X Contents 3 – Warranty 6 – Battery Guide 9 – MEI Bill Acceptor 11 – Panther 5-bolt rail system 12 – Programming Basics 13 – Programming Tutorial  15 – Available Programs  17 – Time and Day ...
  • Page 3 FOR WARRANTY SERVICE Valley-Dynamo will, at its sole option, repair, upgrade or replace this product in the event of any defect in materials or workmanship during the warranty period. This shall be Valley-Dynamo's sole obligation, and the customer's sole remedy, for any warranty claim.

  • Page 4: Warranty

    Specific note regarding batteries – the lead acid batteries in our Bill Acceptor tables must be charged periodically or they will fail prematurely. Proper maintenance is crucial. Please consult this Manual or the Pool School® section at www.valley-dynamoparts.com for complete details on proper battery care and maintenance Note that our warranty is not an unconditional guarantee for the duration.
  • Page 5 EXCLUSION OF DAMAGES Valley-Dynamo’s sole obligation and liability under this warranty is limited to the repair or replacement of a defective product at our option. Valley- Dynamo shall not, in any event, be liable for any incidental or consequential damages resulting from interruption of service, loss of business or revenue, or for liability in tort relating to this product or resulting from its use or possession.

  • Page 6: Battery Guide

    The Valley Panther ZD-X Battery Guide Valley-Dynamo has upgraded the rechargeable battery system on the Panther ZD-X. The battery is now 12 volts, 18 amps, and a new 3amp charger is added to allow for faster charges. The battery and charging point are relocated to the end of the table, away from the secure area of the cash boxes, and accessed by an enlarged Clean Out Door.
  • Page 7  If the table is in play mode, we recommend a 7-hour initial charge. (figures based on use of the Panther ZD-X 3-amp charger) You cannot ―top off‖ your battery if it is a volt or two low. Plugging it in for a quick one-hour charge will not do the job.
  • Page 8 Part# 850200130 will not function at this point and games can be vended only by using coins. At 11.8 volts, the display shuts off completely and will not return until the battery is charged, or replaced with a charged battery. Games can only be vended using the manual push chute.

  • Page 9: Mei Bill Acceptor

    This unit takes $1 - $5 and can be purchased from other companies. The V at the end of the part number signifies that the DBA works in the Valley / Dynamo pool tables. A unit without the V will require installation of a new harness from the company the unit was purchased from (Valley-Dynamo does not sell this harness, as we only stock the AE2655 U5V), or modifying the existing harness to match the Valley requirements.
  • Page 10 Part# 850200130 MEI DBA DIP switch settings for Valley Panther ZD-X AE2455 Bill Validators AE2655 Bill Validators Red Label Green Label Switch 1 ,2 & 3 ON Switch 3 & 7 OFF All others OFF All others ON MEI tech support – 800-345-8172...
  • Page 11 Part# 850200130 The Valley Panther ZD-X 5-Bolt Rail System Valley debuts a new 5-bolt rail system on the Panther series tables. By using additional mounting points In addition, the rails are now secured with threaded inserts instead of T-nuts. This...

  • Page 12: Programming Basics

    The Valley Panther ZD-X Programming Basics RACK COST – The base price per game for your Valley Panther ZD-X. This dollar amount should not exceed the table’s push chute value. CREDIT LEVEL OPTIONS – Up to 3 bonus pricing options available. Use these options to award extra games for a larger buy in.

  • Page 13: Programming Tutorial

    PCB to be used worldwide. Whether you want a detailed accounting beyond the capabilities of the Great 8, or simply a few small wishlist details brought to life to make your life easier, the Valley Panther ZD-X offers more for...
  • Page 14 Part# 850200130 To begin programming, open the table’s DBA Coin door and locate button ―S2‖ on the main PCB To go into program mode hold down the S2 switch as the display counts down from 5, release after your display shows After entering program mode, most of your programming will be done using the buttons mounted on the coin door.

  • Page 15: Print Report

    Part# 850200130 Programs Available Day and Time: Sets the day and current time (in 24hr/military format) on your logic board. Default Resets all settings to factory setting and should be done if updating the program. Master Setting Use to A. Set the base coin B.
  • Page 16 Part# 850200130 Sunday Set options for Sunday, the weekend, or the complete week. Monday - Sat Set options for each individual Day of the week Daily Options Available A. Rack On/ Off B. 3 Groups of Rack bonus pricing and games earned C.
  • Page 17 Part# 850200130 Program Instructions – Time and Day: After you have entered program mode, use the Speed Pool and Select buttons to scroll to the Time-Day program group. (although Time-Day‖ should be the first option to appear when entering program mode). Press the Start button to enter this Program Group.
  • Page 18 Part# 850200130 Program Instructions – Print Report: Use this program group in conjunction with the convenient AP1300 hand held thermal printer to print out all accounting data. To order the AP1300 Printer, contact Current Components Inc 8600 Myersville Rd Middletown MD 21769 Jodie Warrentfeltz Tel 800 342 9798 ext 215 or 216 Fax 301 371 7353...
  • Page 19 Part# 850200130 Program Instructions – League Audits: After you have entered program mode, use the Speed Pool and Select buttons to scroll to the League Audits program group (third option to appear when entering program mode). Press the Start button to enter this option. League 1, Team 01 is the first total to display.
  • Page 20 Part# 850200130 Program Instructions – League Setup: This option allows you to set up and delete leagues from the program. After you have entered program mode, use the Speed Pool and Select buttons to scroll to the League Setup program group (fourth option to appear when entering program mode).
  • Page 21 Part# 850200130 Program Instructions – Check Battery: This option allows you to check your Battery Voltage without a meter. After you have entered program mode, use the Speed Pool and Select buttons to scroll to the Check Battery program group (fifth option to appear when entering program mode).
  • Page 22 Part# 850200130 Program Instructions – Master Settings: Many of these will be set-and-forget values rarely requiring change so long as a table remains in one location. Press the Start button to enter the program group followed by the Select button to navigate to option you want to change.
  • Page 23 Part# 850200130 Off for MEI USE On for ICT USE. Press the Select button to save your Settings, and move to the next option. IF YOU CHANGED THIS SETTING, after you exit the program, Press the Reset button to put the change into effect. TURN SPEED POOL ON/OFF - Press the Start button to enter this option Use the Start button to choose On or Off...
  • Page 24 Part# 850200130 Use the Start button to choose Yes or No (default is no) Press the Select button to confirm your setting Use the Start button to scroll to your desired serial number. Press the Select button to confirm your setting and return to the Program Group.
  • Page 25 Part# 850200130 Program Instructions – Daily Programs: This table lists the programming options available for each day of the week, and the range of values allowed Sub Groups Default New Setting DAILY Rack Play DAILY Rack Cost 0.25 $20.00 $2.00 DAILY Group 1 Bonus Pricing DAILY Group 1 Bonus Cost $1.00...
  • Page 26 Part# 850200130 You can navigate through the seven days of the week for individual programming. Sunday is listed first because the software in engineered to allow the user to copy Sunday settings to all seven days, or just for the weekend. This way, there is no need to enter the same settings seven times if you want them the same throughout the week.
  • Page 27 Part# 850200130 Rack Cost Press the Start button to increase the value and the Speed Pool button to decrease the value. The option range is from $0.25 - $20.00 Press the Select button to confirm your choice and advance to the next option. Credit Level 1 This sets the base amount to earn bonus games.
  • Page 28 Part# 850200130 You may repeat settings for Credit Level 2 and 3 using the same steps, if desired Otherwise, select OFF (or leave OFF unchanged to continue navigating) Time Play: on this level you will turn Time play On or Off. If your Time Play is not appropriate for your location or customers, is easier if this option is simply turned off Time Play ON or OFF...
  • Page 29 Part# 850200130 Time Bonus Used to offer additional play time as incentive for a larger purchase Time Bonus ON or OFF Time Bonus On, proceed to Bonus Cost Time Bonus Off, skip ahead to Happy Hour 1 Choose between Time Bonus On or Off by pressing the Start Button. Press the Select button to confirm your choice and advance to the next option.
  • Page 30 There are 3 happy hour groups, each group has the same options and it programmed in the exact same manner. IMPORTANT – The Panther ZD-X software has protection to prevent Happy Hour start times from overlapping. If you overlap the hours you will get the following message and be returned to the start time.
  • Page 31 Part# 850200130 Happy Hour 1 Start Set the start time for Happy Hour 1 Press the Start button to increase the value and the Speed Pool button to decrease the value. The option range is in :15 minute increments from 0:00A.M. to 23:45 P.M.
  • Page 32 Part# 850200130 Happy Hour 1 Time Use this option if your Happy Hour will offer special pricing on Time Play HH 1 Time Play ON HH 1 Time Play OFF HH1 Time On, proceed to Time Cost HH1 Time Off, skips to the end Choose between Time Bonus On or Off by pressing the Start Button.
  • Page 33 The only difference from the Sunday instructions is in the day of the week. The expanded accounting capabilities of the Panther ZD-X can give you a clear understanding of your most successful pricing and options. Successful operators will review their accounting periodically to maximize collections.
  • Page 34 Part# 850200130 The following chart details all sub groups and options available. Sub Groups Default DAILY Rack Play 0.25 $20.00 DAILY Rack Cost DAILY Group 1 Bonus Pricing $1.00 $20.00 $5.00 DAILY Group 1 Bonus Cost DAILY Group 1 Bonus Games DAILY Group 2 Bonus Pricing $1.00 $20.00...
  • Page 35 Part# 850200130 The Valley Panther ZD-X USB Memory Your Panther ZD-X™ only supports USB Memory Sticks that are 2GB in size and SMALLER that have been formatted for FAT. USB sticks that are formatted with FAT32 are not supported. A larger USB stick (4GB, 8GB, etc) formatted to FAT may work.
  • Page 36  Once you have table set up the way you want to, insert a blank memory stick into the USB port ( J9 ) of your Panther ZD-X™ control board. Press the S1 / RST button on the middle of the board.
  • Page 37 Part# 850200130 If you open TABLE.CSV in a program like Microsoft Excel, you will see a view similar to this one. This image has the editable cells highlighted. PANTHER ZD-X SUNDAY MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY RACK PLAY? RACK COST...
  • Page 38 Part# 850200130 Below the main table settings you will find the advanced settings for Happy Hour pricing HAPPY HOUR 1 HAPPY HOUR 1 START HAPPY HOUR 1 DURATION HAPPY HOUR 1 RACK PLAY HAPPY HOUR 1 RACK COST HAPPY HOUR 1 TIME PLAY HAPPY HOUR 1 TIME PLAY COST HAPPY HOUR 1 TIME MINUTES HAPPY HOUR 2...
  • Page 39 Part# 850200130 League Settings The table can have 10 leagues with 100 teams per league. League State This is an On / Off value. League Teams This is the number of teams in that league. League Fees This is how much it costs to participate in the league, in whole dollars. Audits You will also notice that the Audits of your table are saved into the TABLE.CSV file.
  • Page 40 Part# 850200130 The Valley Panther ZD-X ZD-X Wiring Schematic...
  • Page 41 Part# 850200130...
  • Page 42 The Valley Panther ZD-X ESD Push Chute The Panther ZD-X is equipped with a push chute so that if the battery protection measures and reminders to keep the battery charged all still result in a dead battery, your Panther ZD-X still has a way to be used. Setting the dollar value of your table is not fully complete unless you set the push chute to match.
  • Page 43 Part# 850200130 3) After pushing in the chute and your coins drop out, you will be able to access the inserts, and a section that may contain spare inserts. Continue to hold the handle in as shown... 4) and unhook the two large return springs from the small hooks on the spring bracket.
  • Page 44 Part# 850200130 6) Remove the Phillips screw or screws holding the insert retainer plate and you will have access to all the inserts. 7) With the Insert Retainer Plate removed, you have ready access to make whatever changes you see fit. Switch coin inserts with blanks, or switch blank inserts for coins.
  • Page 45 Valley Panther Pocket Liner Side 20900015 Saluc Ball Set 20900045 Cue ball Cougar. 720203088 Valley Panther Side Trim MDL 88 720203093 Valley Panther Side Trim MDL 93 720203101 Valley Panther Side Trim MDL 101 720203188 Valley Panther End Trim MDL 88...
  • Page 46 Part# 850200130...
