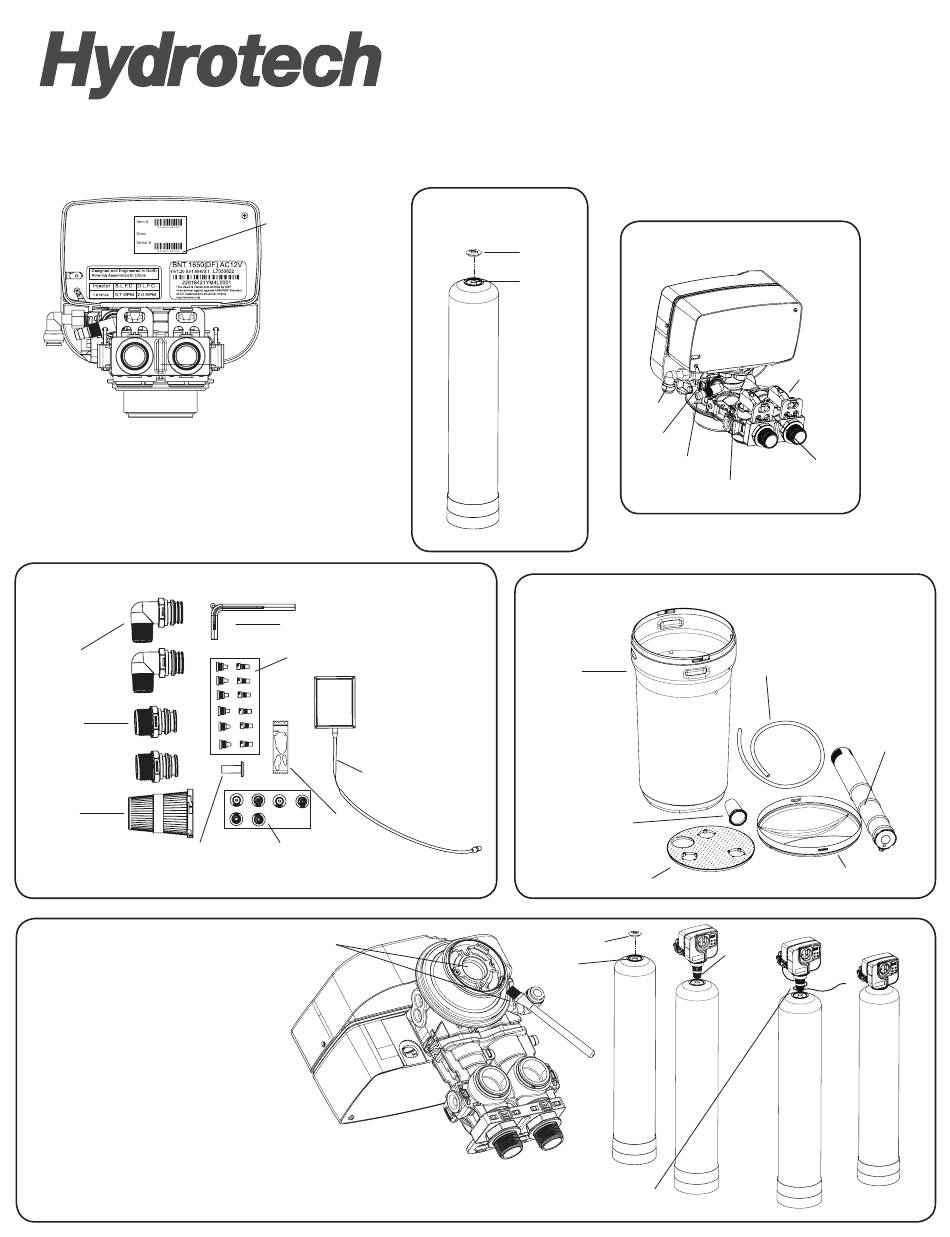

Step 1 – Inspection
Check to make sure you got everything supplied by factory and there is no visible or concealed damage. In case of missing items, please contact customer service immediately
and have the Product Serial # handy. (Product Serial # can be found at the back of the control valve, see below)
The items you will expect are:
1. Tank with Media loaded
2. Control Valve
3. Parts Kit
4. Brine Tank (Round or Square ) and Components
3. Parts Kit
3/4" Elbow
Fitting X 2
1" Straight
Fitting X 2
Upper Basket/
Strainer
Brine line Plug (Not used
in Softeners)
Grease port Orings using brush (not included) or
your finger (Make sure to wear protective gloves)
Step 2 – Installing Valve to the Tank
Select a Installation location and make sure there
is access to 110V power outlet and drain line. Lube
the bottom Valve Orings with the grease supplied,
Attach the Upper Basket. Unscrew the spill cap.
Carefully Slide the D-Tube inside the Valve and
Screw the Valve inside the Tank such that the power
cord doesnt get caught between the valve and the
tank
765 Valve Softener
Quick Set Up Manual
1. Tank with
Product Serial #
Bypass Tool
Set of Injectors
Transformer
Grease
Packet
Set of
Washers
CAUTION: Make sure the power cord of the
valve doesnt get caught between the threads
Media loaded
Spill Cap
D-Tube
4. Brine Tank (Round or Square ) and Components
Brine Tank
(Round or
Square)
Grid Legs (3 for
Round and 4 for
Square)
Grid (Round or Square)
Unscrew Spill Cap
D-Tube
2. Control Valve
Bypass
Brine
Elbow
Drain Clip
Drain Hose Fitting
Bypass
Cllips X 2
Bypass Test Port Clip X 2
Brine Tank
Tubing
Attach
Upper
Basket
Brine Well/
Safety Float
Brine Tank Lid
