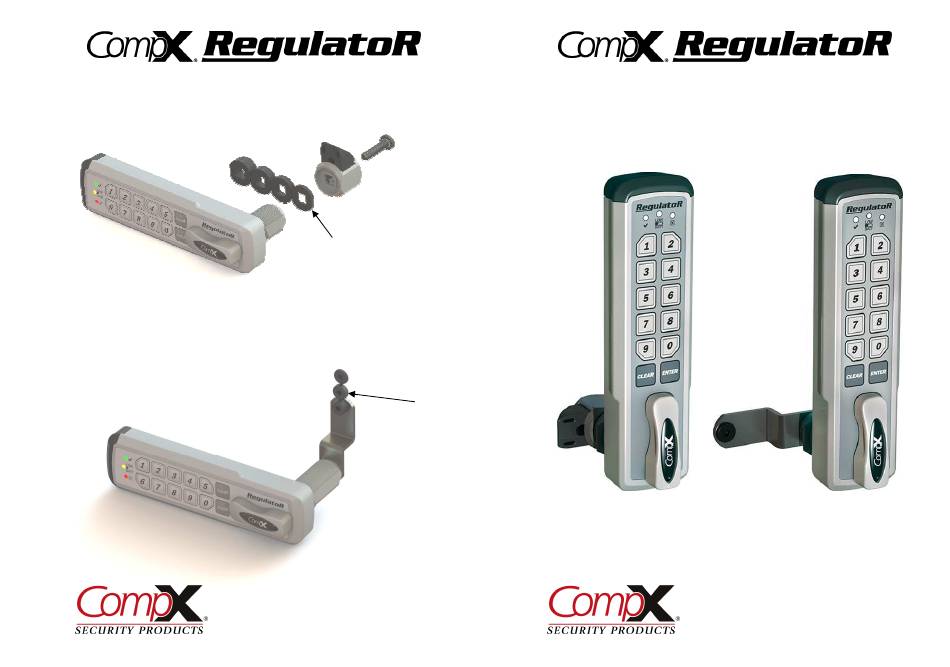

SlamCAM spacer discs (if so equipped) can be inserted between the lock barrel
and SlamCAM mechanism to adjust the backset. See image below:
Instruction Manual
FlexaCam adaptors (if so equipped) can be attached to the cam to provide up to
12 different dimensional variations. See image below:
RegulatoR, Keyless Locking 16
RegulatoR, Keyless Locking 1
Rev. B 1/14
PN: 333153000000
Advertisement
Related Manuals for COMPX RegulatoR
Summary of Contents for COMPX RegulatoR
- Page 1 SlamCAM mechanism to adjust the backset. See image below: Instruction Manual FlexaCam adaptors (if so equipped) can be attached to the cam to provide up to 12 different dimensional variations. See image below: RegulatoR, Keyless Locking 16 RegulatoR, Keyless Locking 1 Rev. B 1/14 PN: 333153000000...
- Page 2 It can mount to cabinet doors or drawers with a material thickness of 1/32” to 1-7/16”. Powered by 2-AAA batteries (included), RegulatoR operates using a 4 to 8 digit code. Operation is simple: type a valid code and press ENTER. Then just turn the lever to the locked or unlocked position.
- Page 3 Each lock contains 2 green stickers that are needed for resetting RegulatoR. In the event RegulatoR needs reset, one green sticker is placed on the back of the device. The remaining green sticker should be saved in a safe and secure location for future reference.
- Page 4 RegulatoR will not unlock with either the valid user or supervisor code. in lock failure. To change the RegulatoR to Security Timeout ON or OFF, follow the steps on To power up RegulatoR, remove the red tag. Lock is now ready for use.
- Page 5 Turning this feature on will disable the user code after a programmable amount The supervisor can change operating codes, modes and restore lock settings. of time. After this time elapses, RegulatoR and can only be opened with the While RegulatoR is easy to program, we highly recommend reading the supervisor code.
- Page 6 Standard Mode RegulatoR operates with a fixed code. To change the code, follow the Changing the User Code steps on page 9. To change the RegulatoR to Single Use or Standard Mode, follow the steps on To operate the Self Lock version of RegulatoR: page 8 to enter programming mode.
- Page 7 RegulatoR features a reset code which will restore the default supervisor code and user code. RegulatoR was shipped with reset stickers; one attached to the back of the RegulatoR and an extra sticker that should be saved in a safe and secure location for future reference.
- Page 8 The factory default user code is 1234 (User codes must be 4 to 8 digits in length.) There is a 10 second programming time limit between each step. If RegulatoR times out or an error is made, programming will end and you will need to enter There is a 10 second programming time limit between each step.
