Summary of Contents for COMPX Regulator AT

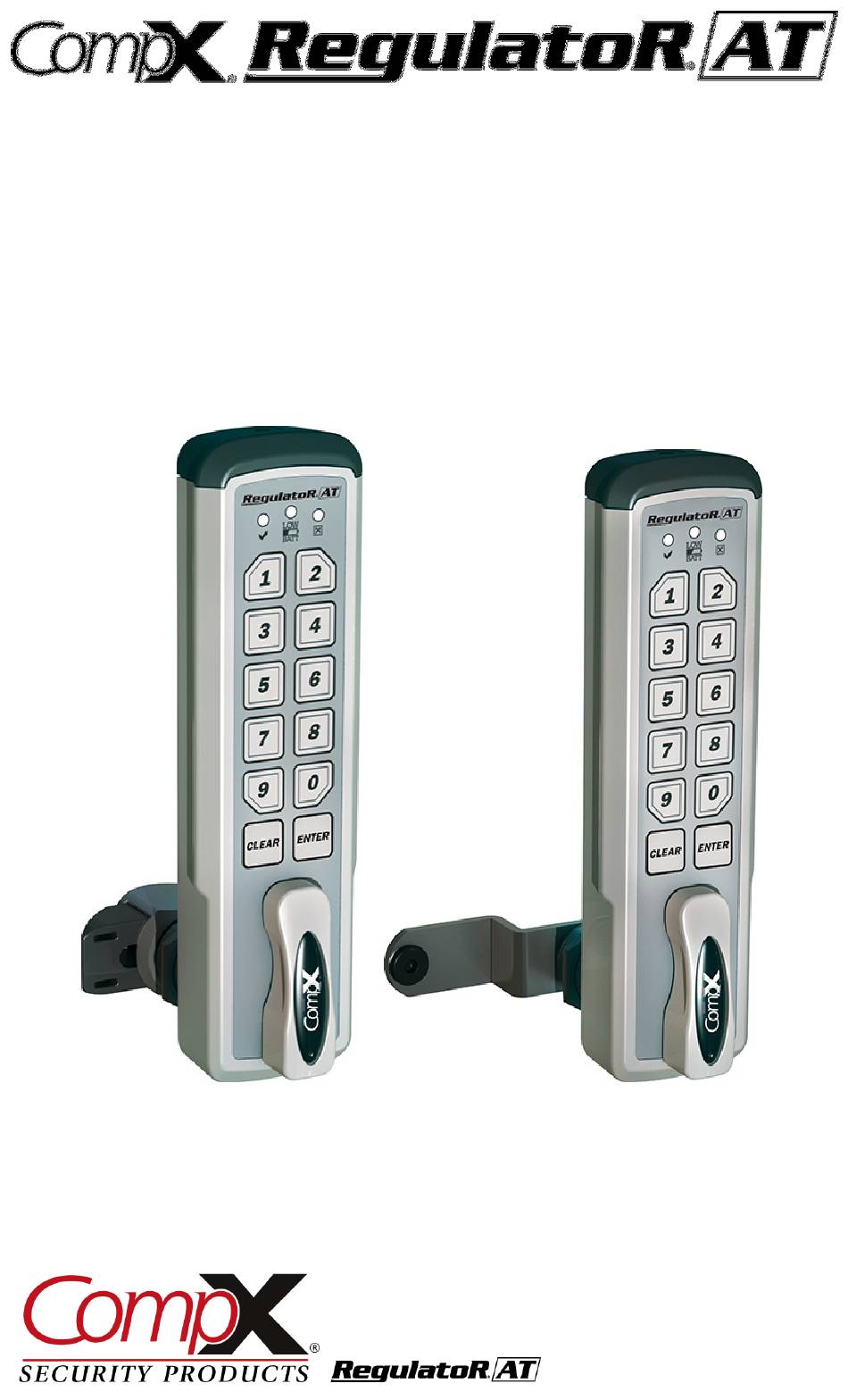

- Page 1 Instruction Manual , Keyless Locking 1...

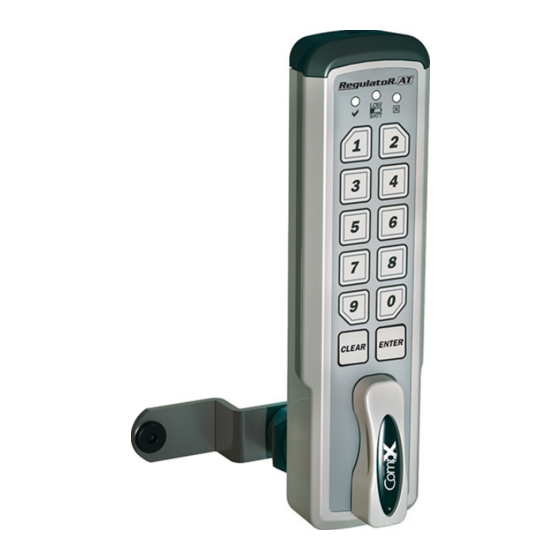

- Page 2 Thank you for purchasing the CompX . The ® an innovative solution for locking cabinet doors and drawers. With (3) cylinder lengths from which to choose, it can be installed on cabinet doors or drawers with a material thickness from 1/32” to 1-7/16”. Powered by 2-AAA batteries (included), operates using a 4 to 8 digit code.
- Page 3 SlamCAM spacer discs • Mounting hardware • Powering Up and Battery Installation CompX is shipped with two installed AAA batteries. While ® features a low battery indicator, scheduled battery replacement is recommended. Mixing batteries of different chemistries could damage the resulting in lock failure.
- Page 4 Operating the with Self-locking CompX is offered with self-locking featuring SlamCAM. If ® your lock is the self -locking version, follow the directions below to unlock and lock the To operate the standard self-locking version: Type a valid code, press ENTER and rotate knob clockwise 90°, hold knob until door or drawer is open then release the knob.
- Page 5 Operating the with Manual locking CompX is also offered in a manual locking version. If your ® lock is the manual locking version, follow the directions below to unlock and lock the To operate the standard manual locking version: Type a valid code, press ENTER and rotate knob clockwise 90°. To lock, close the door or drawer and rotate knob 90°...
- Page 6 REGS-AT = RegulatoR Short Knob w/audit trail Version: S = Self-locking; featuring SlamCAM M = Manual locking, standard CompX National cams Mounting: L = Left hand mount, door application - hinge on left side when facing cabinet R = Right hand mount door application - hinge on right side when facing cabinet...
- Page 7 SlamCAM spacer discs (if so equipped) can be inserted between the lock barrel and SlamCAM mechanism to adjust the backset. See image below: FlexaCam adaptors (if so equipped) can be attached to the cam to provide up to 12 different dimensional variations. See image below: , Keyless Locking 7...
- Page 8 Rev. A 11/16 PN: 334001000000 , Keyless Locking 8...
