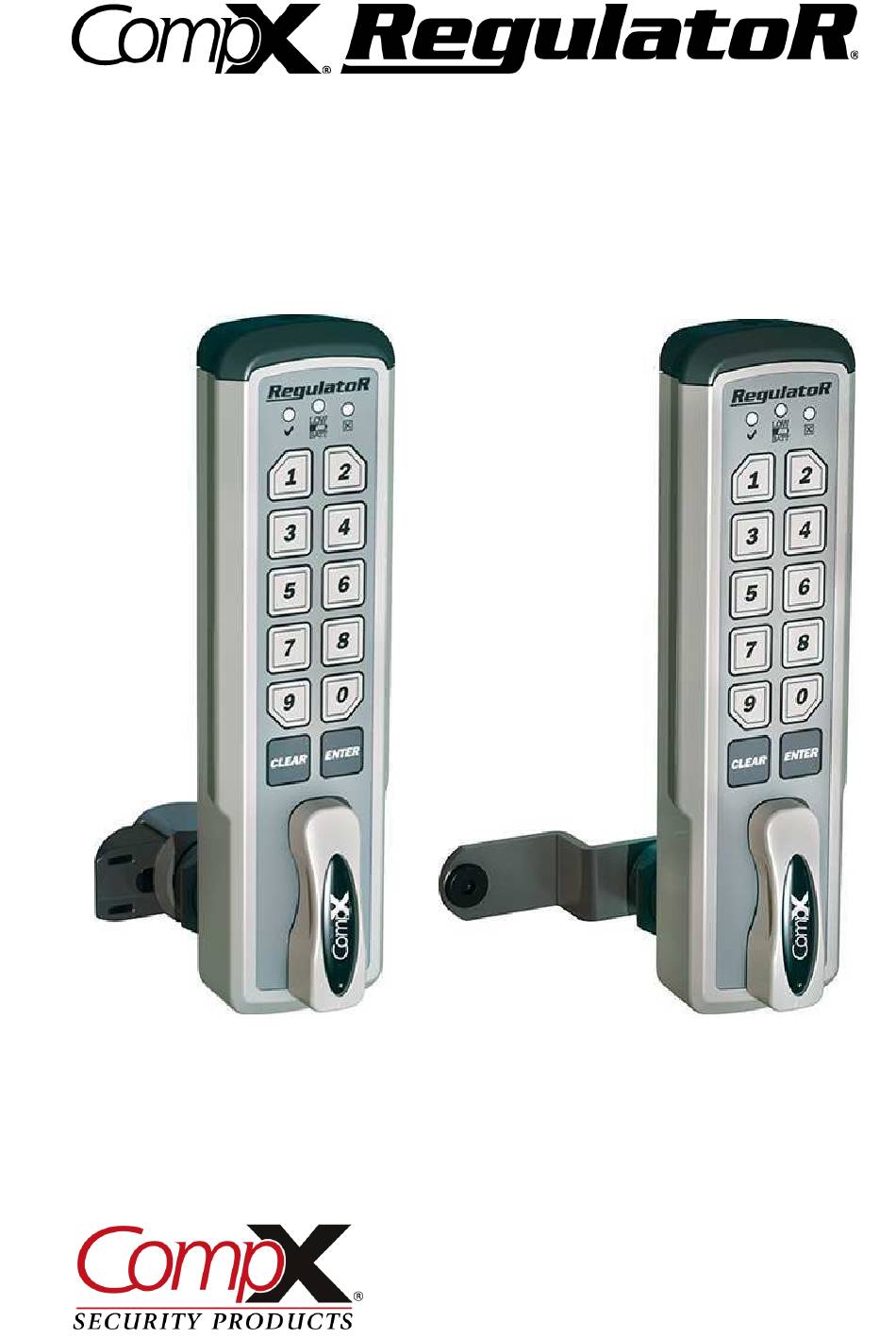

  • Page 1 Instruction Manual RegulatoR , Keyless Locking 1 ®...
  • Page 2 It can mount to cabinet doors or drawers with a material thickness of 1/32” to 1-7/16”. Powered by 2-AAA batteries (included), RegulatoR operates using a 4 to 8 digit code. Operation is simple: type a valid code and press ENTER. Then just turn the lever to the locked or unlocked position.
  • Page 3 Each lock contains 2 green stickers that are needed for resetting RegulatoR. In the event RegulatoR needs to be reset, one green sticker is placed on the back of the device. The remaining green sticker should be saved in a safe and secure location for future reference.

  • Page 4: Table Of Contents

    Changing the Supervisor Code ………………………………………………...11 Single Use/Standard Mode …………………………………………………….12 Single Use Timeout ON/OFF ………………………………………………….13 Security Timeout ON/OFF …………………………………………………….14 Reset User Code ……………………………………………………………….15 Technician Mode ……………………………………………………………..16 User Slot (03-20) Programming ……………………………………………….18 Mounting Template ……………………………………………………………22 Part Number Descriptions ……………………………………………………..23 RegulatoR , Keyless Locking 4 ®...

  • Page 5: Powering Up And Battery Installation

    Mixing batteries of different chemistries could damage the RegulatoR resulting in lock failure. To power up RegulatoR, remove the red tag. Lock is now ready for use. A T-15 pin in head Torx (6-lobe) will be required to remove the battery cover.

  • Page 6: Programming Introduction

    (factory default 1234) and press ENTER to lock or unlock the cabinet. The supervisor can change operating codes, modes and restore lock settings. While RegulatoR is easy to program, we highly recommend reading the complete programming instructions prior to making any changes. Remember to keep track of any programming changes.
  • Page 7 RegulatoR: Type a valid code, press ENTER and rotate knob clockwise 90°, hold knob until door or drawer is open. Release knob, RegulatoR knob will return to the locked position. Door or drawer can be closed at any time. RegulatoR , Keyless Locking 7 ®...
  • Page 8 Manual Lock version follow the directions below to unlock and lock the RegulatoR. To operate the standard Manual Lock version of RegulatoR: To unlock, type a valid code, press ENTER and rotate knob clockwise 90°. To lock, rotate knob 90° counter clockwise.

  • Page 9: Programming Mode

    12345. Once in programming mode, multiple changes can be made prior to exiting programming. There is a 10 second programming time limit between each step. If RegulatoR times out or an error is made, programming will end and you will need to enter programming mode again.

  • Page 10: Changing The User Code

    The factory default user code is 1234 (User codes must be 4 to 8 digits in length.) There is a 10 second programming time limit between each step. If RegulatoR times out or an error is made, programming will end and you will need to enter programming mode again.

  • Page 11: Changing The Supervisor Code

    ® and user code. RegulatoR was shipped with reset stickers; one attached to the back of the RegulatoR and an extra sticker that should be saved in a safe and secure location for future reference. To restore the factory default supervisor and user code, type the Reset Code assigned to the RegulatoR and press ENTER.

  • Page 12: Single Use/Standard Mode

    Standard Mode RegulatoR operates with a fixed code. To change the code, follow the Changing the User Code steps on page 10. To change the RegulatoR to Single Use or Standard Mode, follow the steps on page 9 to enter programming mode.

  • Page 13: Single Use Timeout On/Off

    Turning this feature on will disable the user code after a programmable amount of time. After this time elapses, RegulatoR and can only be opened with the supervisor code.

  • Page 14: Security Timeout On/Off

    5 invalid attempts to unlock RegulatoR occur. During this time, RegulatoR will not unlock with either the valid user or supervisor code. To change the RegulatoR to Security Timeout ON or OFF, follow the steps on page 9 to enter programming mode.

  • Page 15: Reset User Code

    To reset the User Code to the factory default 1234 follow the steps on page 9 to enter programming mode. There is a 10 second programming time limit between each step. If RegulatoR times out or error is made, programming will end and you will need to enter programming mode again.

  • Page 16: Technician Mode

    Single Use Mode RegulatoR without erasing the existing single use code. There is a 10 second programming time limit between each step. If RegulatoR times out or error is made, programming will end and you will need to enter programming mode again.
  • Page 17 3. To relock & retain the single use code that already exists; rotate the knob 90° counter clockwise. To remove the existing single use code and leave the RegulatoR unlocked: Type the Technician Code and press ENTER. Press 1 then press & hold CLEAR for 3 seconds.

  • Page 18: User Slot (03-20) Programming

    User codes must be 4 to 8 digits in length and must be different from all existing codes (including Slot 01 Supervisor & Slot 02 User codes). There is a 10 second programming time limit between each step. If RegulatoR times out or an error is made, programming will end and you will need to enter programming mode again.
  • Page 19 User codes must be 4 to 8 digits in length and must be different from all existing codes (including Slot 01 Supervisor & Slot 02 User codes). There is a 10 second programming time limit between each step. If RegulatoR times out or an error is made, programming will end and you will need to enter programming mode again.
  • Page 20 To delete a user code without specifying a memory slot (03 -20), follow the steps on page 9 to enter programming mode. There is a 10 second programming time limit between each step. If RegulatoR times out or an error is made, programming will end and you will need to enter programming mode again.
  • Page 21 To delete a user code from a specific memory slot (03 -20), follow the steps on page 9 to enter programming mode. There is a 10 second programming time limit between each step. If RegulatoR times out or an error is made, programming will end and you will need to enter programming mode again.

  • Page 22: Mounting Template

    RegulatoR , Keyless Locking 22 ®...

  • Page 23: Part Number Descriptions

    REGS = RegulatoR Short Knob Version: S = Self-locking; featuring SlamCAM M = Manual locking, standard CompX National cams Mounting: L = Left hand mount, door application - hinge on left side when facing cabinet R = Right hand mount door application - hinge on right side when facing cabinet...
  • Page 24 SlamCAM mechanism to adjust the backset. See image below: FlexaCam adaptors (if so equipped) can be attached to the cam to provide up to 12 different dimensional variations. See image below: RegulatoR , Keyless Locking 24 ® Rev. E 08/15...
