Battery Power
Battery Connections
Make sure that the battery circuit breaker is in the OFF position.
Use either 14 or 12 AWG for (2.5mm
Battery backup is required. (15 amp hours is the minimum size and 100 amp hours is
the maximum size of the battery for the PSX-12C).
1.
Attach the red battery wire to the quick disconnect on the positive terminal
and the blue battery wire to the quick disconnect on the negative terminal
with the M5 screws and lock nuts supplied with the PSC-12C.
2.
Close the covers of the battery terminals.

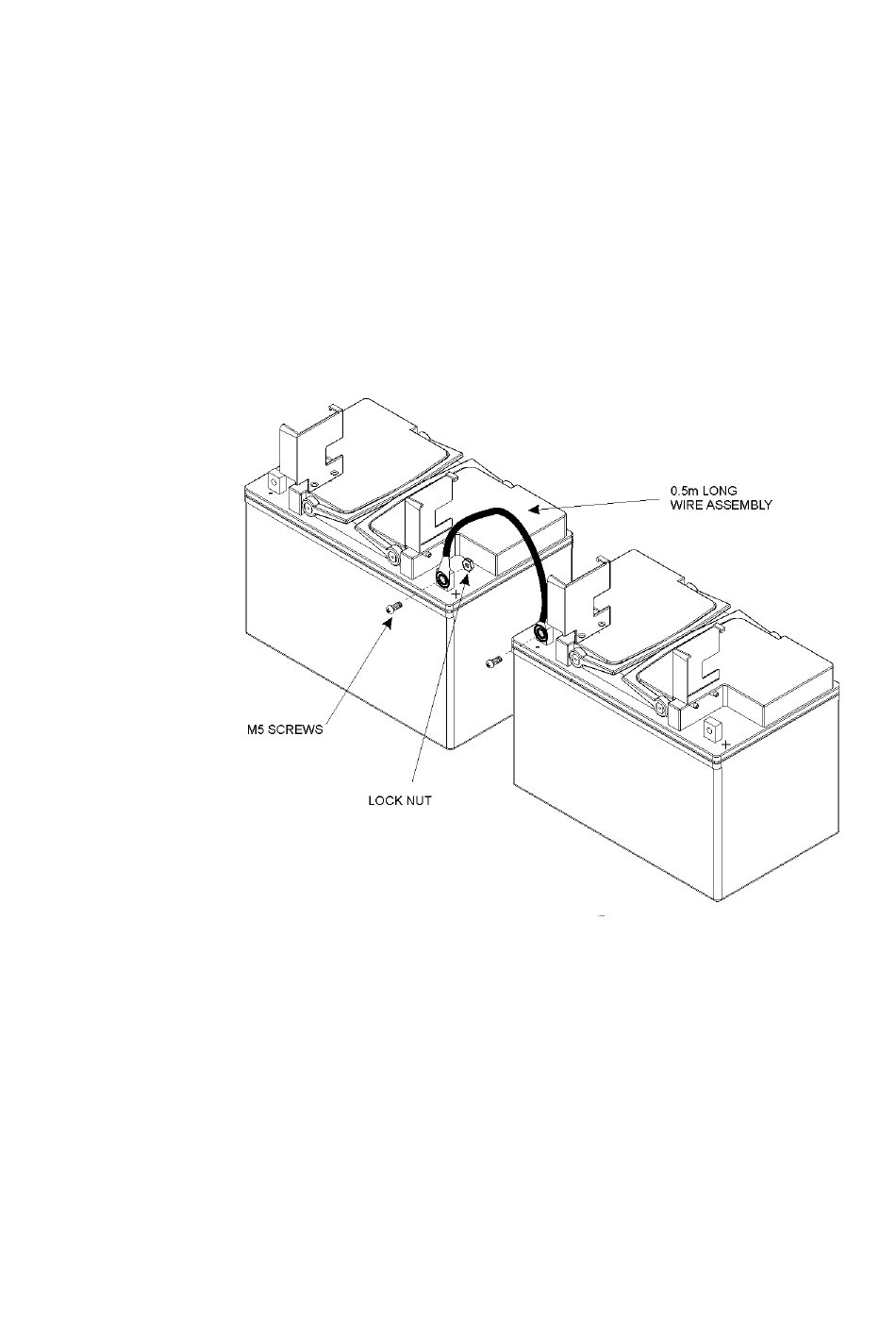

Figure 8
Wiring Batteries
or 4mm
) battery connection.
2
2
10
A24205-A334-B818
P/N 315-035840-1
