Samsung MCM-C210 Installation Manual

Multi tenant function controller.
Hide thumbs


Advertisement

보조전원 모듈_MCM-C210_IM_EN+FR_03929A-06.indd 11
Air Conditioner
installation manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
Multi Tenant
Function controller
MCM-C210, MCM-C210N
2016-04-21 오후 3:30:11

Advertisement

   Related Manuals for Samsung MCM-C210

   Summary of Contents for Samsung MCM-C210

  • Page 1 Multi Tenant Function controller MCM-C210, MCM-C210N Air Conditioner installation manual imagine the possibilities Thank you for purchasing this Samsung product. 보조전원 모듈_MCM-C210_IM_EN+FR_03929A-06.indd 11 2016-04-21 오후 3:30:11...
  • Page 2 Safety precautions English This installation manual explains how to install a Multi Tenant Function Controller that is connects to indoor unit of Samsung system air conditioner. Please read this manual thoroughly before installing the product. (Please refer to an appropriate installation manual for any optional product installation.)
  • Page 3 Ce manuel d'installation explique comment installer un contrôleur de fonctions multi-tenant connecté au module intérieur de votre climatiseur Samsung. Veuillez lire attentivement ce manuel préalablement à l'installation de l'appareil. (Concernant l'installation de tout appareil en option, veuillez vous reporter au manuel d'installation approprié.) AVERTISSEMENT Dangers ou usages dangereux pouvant entraîner des blessures graves ou la mort.
  • Page 4 Preparing for installation Checklist before installation About power supply Electric transformer and the power cables, for power supply, should be purchased separately and they are not provided by manufacturer. About installation cables Each power cables should be wired from the electrical transformer or indoor units to the installation location of the Multi Tenant Function Controller and wiring work must be done in advance so that they can be connected to each other.

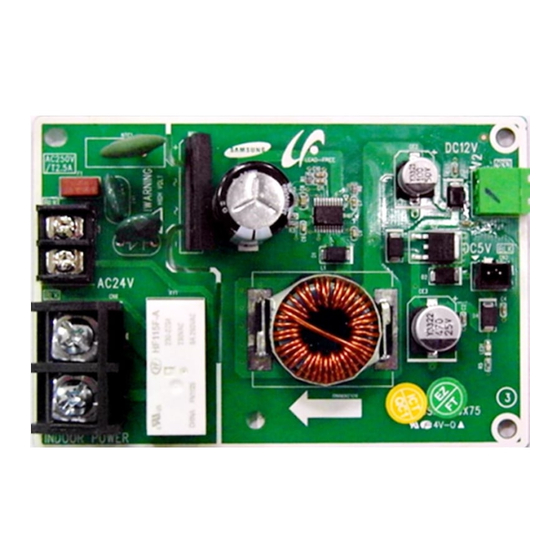

  • Page 5 Name of the parts and product dimension 110 mm DC 12 V Output AC 24 V Input DC 5 V Output AC 220 V Input Installation diagram of Multi Tenant Function Controller Fuse Multi Tenant Function Controller (Not provided) AC 24 V 1 A (Not provided) DC 5 V AC 200-240 V...
  • Page 6 Installing the product Installing the Multi Tenant Function Controller box f The size of the Multi Tenant Function Controller box should be more than 210 mm(W) x 130 mm(H) x 100 mm(D). f Fix the plate (PD, MD) to the Multi Tenant Function Controller box and assemble the holders (for fixing PBA) to install the Multi Tenant Function Controller.
  • Page 7 Indoor unit cable connection f After cutting off the power of the indoor unit, connect the cable between the AC POWER terminal block of the indoor unit and the INDOOR POWER terminal block of the Multi Tenant Function Controller. f Connect the cable between the Commnunication/Power terminal block V1/V2 of the indoor unit and the V1/V2 of the Multi Tenant Function Controller, complying the correct voltage polarity.
  • Page 8 Installing the product Selecting a compressed terminal (Specifi cation for connecting power supply of an indoor unit) 1. Select a solderless ring terminal for a power cable according to the nominal dimensions for cable. 2. Apply insulation coating to the connection part of the solderless ring terminal and the power cable. Silver solder Nominal dimensions for cable Nominal dimensions for screw...
  • Page 9 Installation example of Multi Tenant Function Controller When installing one transformer with one MTFC (Multi Tenant Function Controller) AC 220 V MTFC Transformer AC 24 V 1 A DC 12 V DC 5 V Comm. Indoor Unit#1 When installing one transformer with multiple MTFCs (Multi Tenant Function Controller) AC 220 V AC 220 V AC 24 V...
  • Page 10 보조전원 모듈_MCM-C210_IM_EN+FR_03929A-06.indd 10 2016-04-21 오후 3:30:11...

This manual also for:

Mcm-c210n
