Procedure
1. Contact the STG assigned contact so that the system can be shut down before cables are
disconnected. When the system is shut down, the lights on the power supply units are orange.
2. Remove the two screws that are located below the handles on each side of the front of the system.
The screws secure the system to the rack.

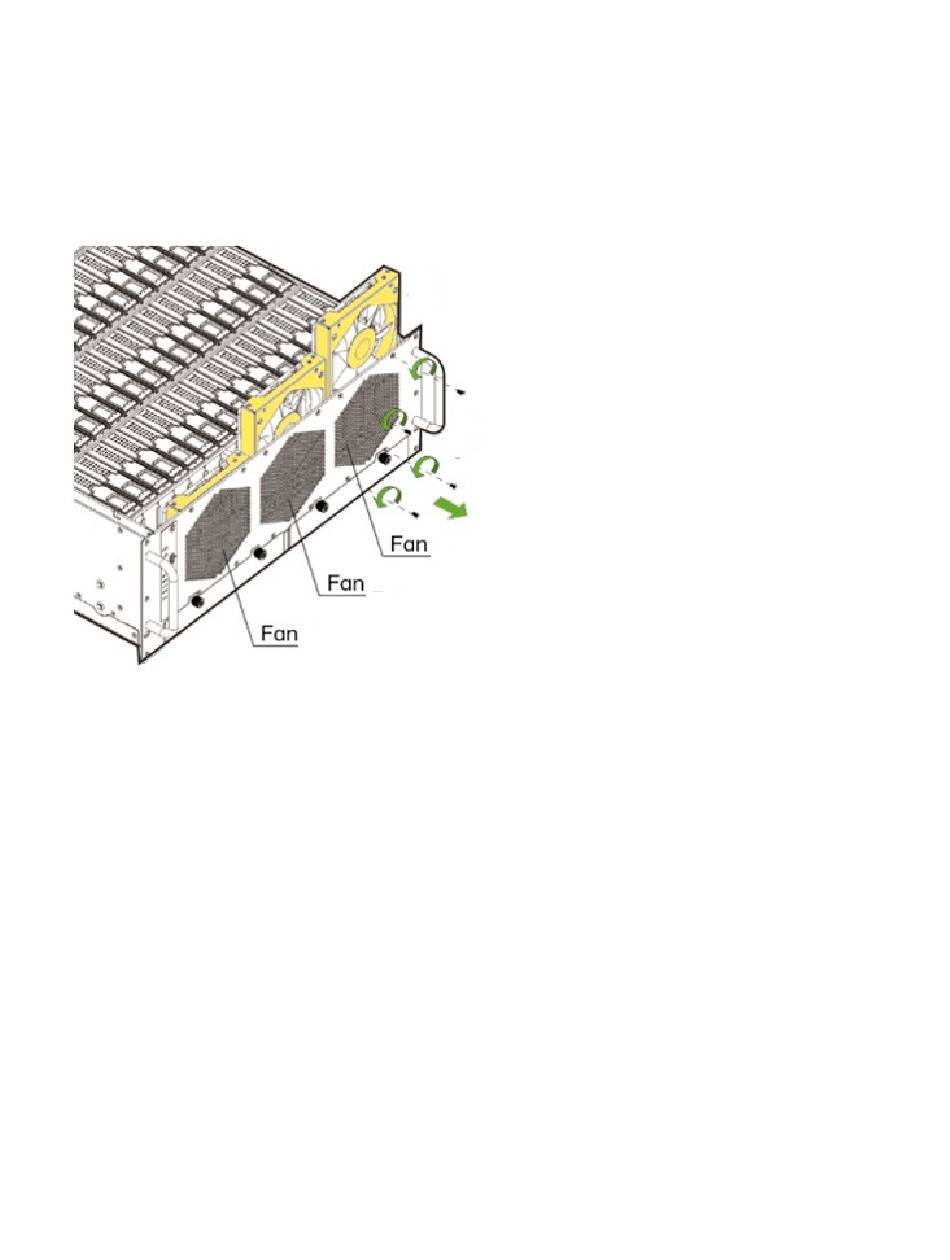

Figure 5. Slicestor 1440/2440 - front panel
3. Disconnect the power cables and the network cables. When the power cables are disconnected, the
lights on the power supply units are off.
4. Pull the system from the front, or push from the rear, so that the system is halfway out of the rack.
5. Remove the four screws from the front lid. The top panel has two lids.
14
Hardware Maintenance Guide
