Warning
1. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of
personal injury and damage to equipment. Please read all instructions before assembly and use.
2. Some parts may contain sharp edges, wear protective gloves if necessary. At least two or more people are
recommended for safe assembly.
3. Keep all children and pets away from assembly area.
4. Begin assembly not less than 6 feet from any obstruction such as fence, garage, house, overhanging branches,
laundry line or electrical wires.
5. Install on level ground. This gazebo cannot be permanently staked or attached to concrete floor or platform. This
gazebo is intended for decorative and sunshade purposes only and is not meant to withstand inclement weather
including high winds, rain and snow. Gazebo fabric is water resistant, not water proof and may leak during exposure
to precipitation.
6. Check all nuts and bolts for tightness before and during usage.
7. keep all flame and heat sources away from this gazebo fabric. This gazebo is made with fabric that meets cpai-84
specifications for flame resistance. It is not fire proof. The fabric will burn if left in continuous contact with any flame
source. The application of any foreign substance to the gazebo fabric may render the flame-resistant properties
ineffective.

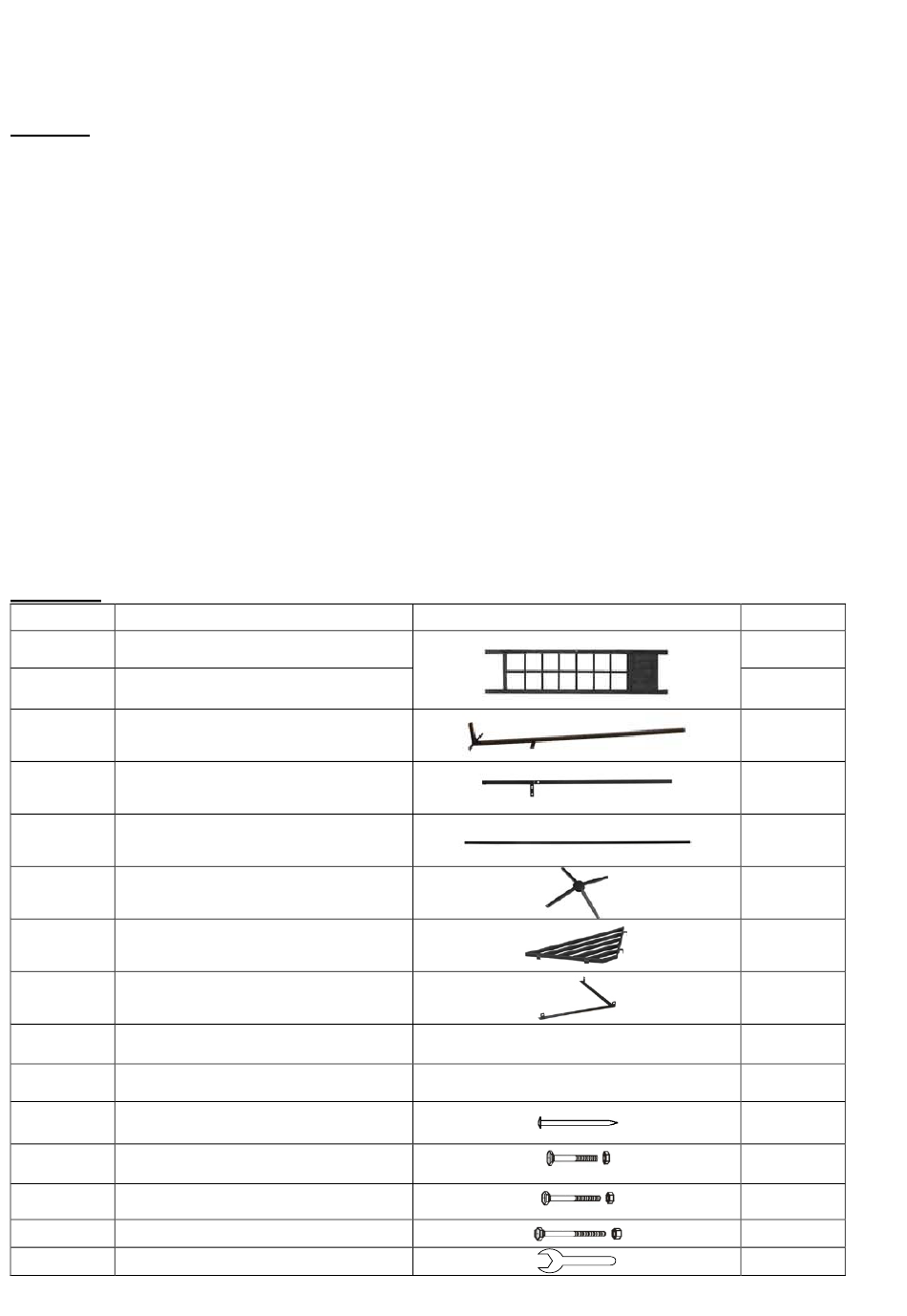

Parts List
Part #
Description
A
Screen (wide)
Screen (narrow)
B
C
Connect pole
(weld with corner connector)
D
Connect pole
E
Top pole
F
Center fitting
G
Bracket
H
Screen binding
I
Canopy
J
Mosquito net
K
Peg
L
Screw (M6*40) & nut
Screw (M6*58) & nut
M
N
Screw (M6*85) & nut
O
Wrench
Assembly Manual:
G-GZ078PAL ADAGIO GAZEBO
Figure
Qty.
4
4
4
4
4
1
4
4
1
1
16
24
8
12
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy G-GZ078PAL
Summary of Contents for Sunjoy G-GZ078PAL
- Page 1 Assembly Manual: G-GZ078PAL ADAGIO GAZEBO Warning 1. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. 2. Some parts may contain sharp edges, wear protective gloves if necessary. At least two or more people are recommended for safe assembly.
- Page 2 (Tools needed for assembly: screwdriver) Assembly Instruction Step 1. Lay all parts on a clear and level surface prior to assembly. Ideally, the gazebo frame should be set up at desired location to avoid moving after assembly. Step 2. Stand the screen (A) at a right square angle to the screen (B). Attach them together by inserting two screws M6*85 (N) at the top hole and middle hole, secure each screw in place with nut (N) (Fig.
- Page 3 Step 6. Insert another end of top pole (E) to the corner connector that welded on connect pole (C), make sure the snap link of corner connector is locked into top pole (E) (Fig. 11 & Fig. 12). Repeat this step for remaining three top poles (E).
