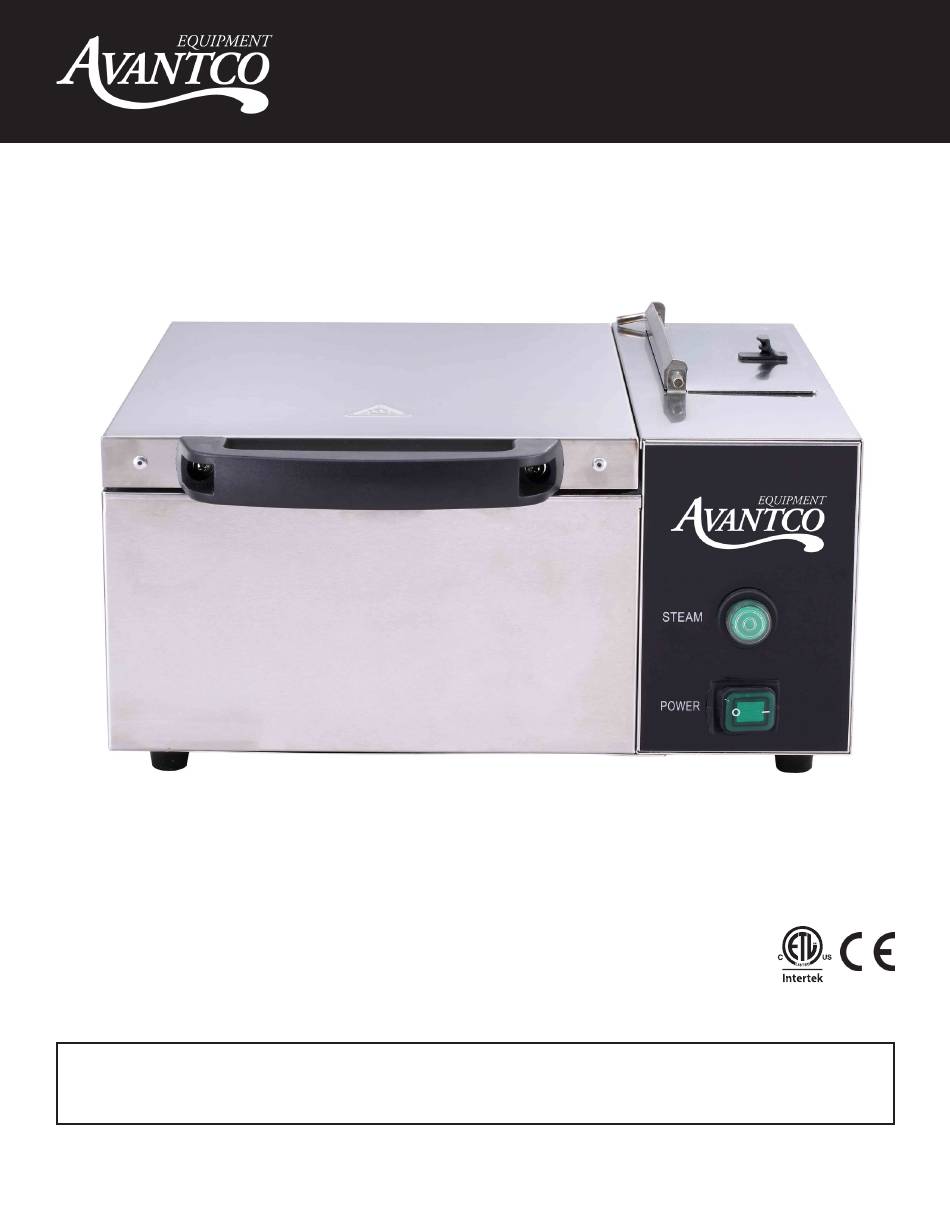

- Page 1 User Manual User Manual Countertop Tortilla/Portion Steamer Models: QuickShot QS-1800 09/2018 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Table Of Contents
User Manual Index Specifications ..................3 Important Safety Information ............. 4 Identification of Key Parts ..............5 Installation of Your Steamer ..............6 Before Using Your Steamer ..............6 Using Your Steamer ................6 Typical Operation Sequence ..............7 Cleaning and Maintaining Your Steamer ..........7 Daily Maintenance ............. -
Page 3: Specifications
User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Specifications Model # Power Supply Dimensions Size Plug 177QS1800 120V 1800W 16 ½”W x 15”D x 7 7/8”H Half 120V NEMA 5-15P Explanation of Graphical Symbols WARNING RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN... -
Page 4: Important Safety Information
User Manual Important Safety Information When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions carefully and completely. 2. Electrical appliances are for commercial use only. 3. Do not touch hot surfaces. 4. -
Page 5: Identification Of Key Parts
User Manual capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 26. When using the appliance in shops, snack bars, hotels etc., check the voltage and outlet to make sure the appliance is correctly connected to power. -
Page 6: Installation Of Your Steamer
User Manual Installation of Your Steamer 1. QuickShot QS-1800 is 120V, 1800W and uses a 5-15P NEMA plug. 2. All electrical connections must comply with specifications and power standards. The installation must be done by qualified personnel. 3. All models are countertop type. Remove all exterior and interior packing materials, and place the steamer on a flat surface. -
Page 7: Typical Operation Sequence
User Manual Typical Operation Sequence ACTION RESULT Plug in your steamer Power is connected; unit will begin to heat Load product into steamer Product is ready to steam Press steam button for 2 seconds, Unit fills body with steam, which penetrates the product release, and wait 20 seconds Unload steamer Product will be hot;... -
Page 8: Water Tank Filter Maintenance
User Manual If excessive mineral deposits remain after cleaning, follow the directions below: 1. Treat generator surface with a delimer solution. Follow all instructions and safety precaution as stipulated by the delimer’s manufacturer. If using a chemical cleaner, make sure it is safe to use on the generator surface. 2. -
Page 9: Parts List
User Manual Parts List PART NAME Top Cover Handle Steam Plate ½ GN Pan Evaporation Plate Shell Control Panel Bottom Plate Humidity Inching (steam switch) Power Switch Feet Transformer Spout Connector Relay Fixing Plate Right Plate for Water Tank Water Tank Cover Lock Power Cord Relay Temperature Limiter... -
Page 10: Limited Warranty
(and all parts thereof), that such equipment will be free from defects in material and workmanship for a period of 1 year from the date of delivery. If a qualified product is found to be defective during this period, Avantco Equipment will repair the defective unit, replace any defective parts, or replace the defective unit.
