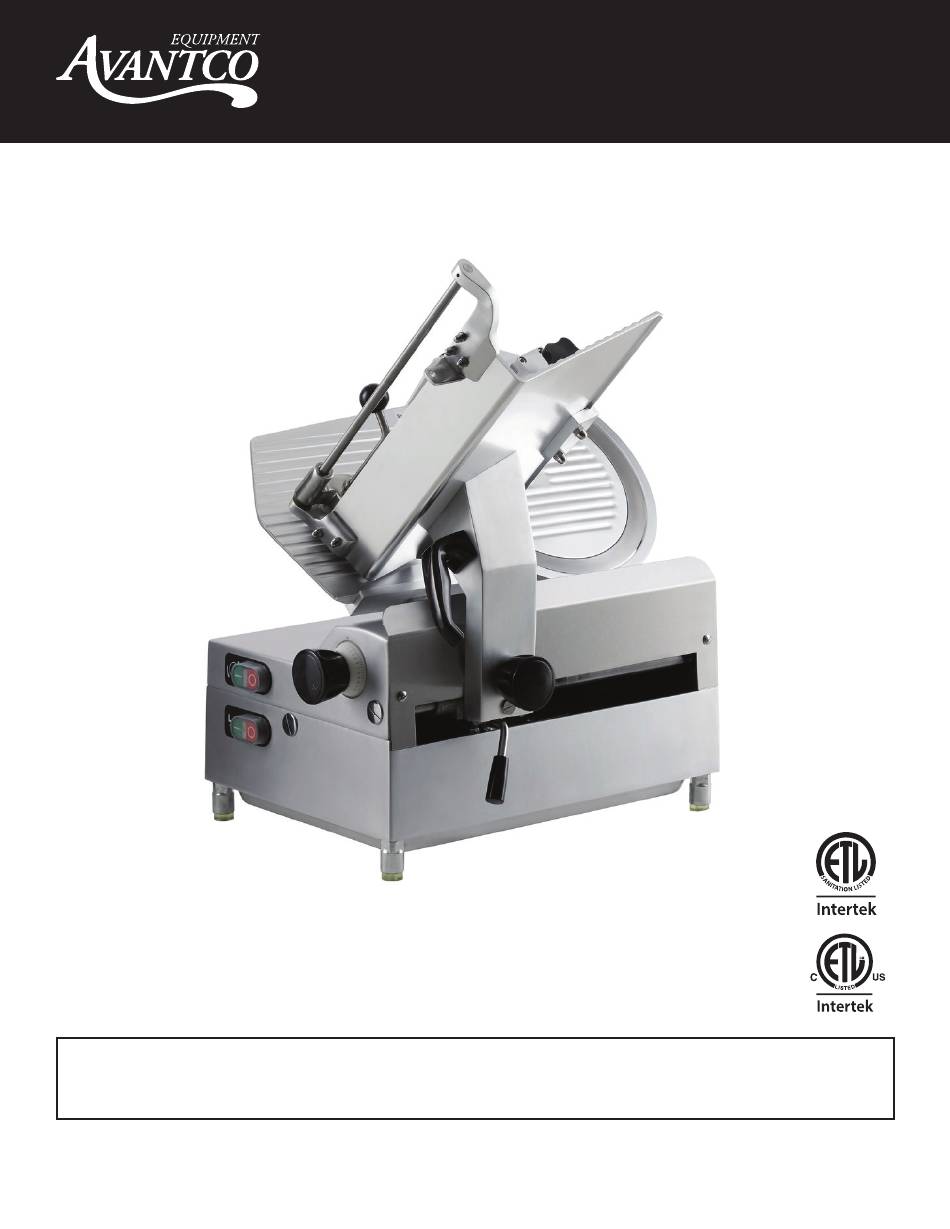

- Page 1 User Manual User Manual Meat Slicer Instruction Manual Models: 177SL612A, 177SL713A 09/2020 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Manual Mode
User Manual Unpacking: Unpack the product and check for any damage incurred during transit. This should be reported to the responsible carrier, railway or postal authority, and a request for a damage report should be made. These instructions must be followed for us to guarantee our full support of your claim for protecting against loss from concealed damage. - Page 3 User Manual User Manual User Manual Safety Safety 1. The units are designed to operate an alternating current (A.C) only. DO NOT CONNECT TO DIRECT CURRENT (D.C). 1. The units are designed to operate an alternating current (A.C) only. DO NOT CONNECT TO DIRECT CURRENT (D.C). Safety 2.
-
Page 4: Cleaning And Sanitizing Instructions
User Manual User Manual User Manual Cleaning and Sanitizing Instructions This machine shall be cleaned and sanitized at intervals to comply with national, state and/or local General Information health codes. This machine shall be cleaned and sanitized at intervals to comply with national, state and/or local health codes. We recommend that the machines should be properly cleaned at least once a day;... - Page 5 User Manual User Manual 1. Disconnect the plug from the electric main supply: 2. Turn the regulating knob of the thickness plate to ‘0’; Remove various components described in the following paragraphs 1. Unscrew the knob in order to extract the rod from the tray;...
- Page 6 User Manual User Manual Unscrew the center plate locking knob. Push on the knob to move the center plate off the knife. Remove both the center plate and the locking knob. Remove the slice deflector which is attached to the main slicer body, as shown in the picture.
- Page 7 User Manual User Manual User Manual Only use hot water and a biodegradable detergent for dishes with a 7-8 PH, Only use hot water and a biodegradable detergent for dishes with a 7-8 PH, at a temperature of no lower than 30° C or(86° F) using a soft, spongy cloth and a at a temperature of no lower than 30°...
- Page 8 User Manual User Manual Scrub the stones with a stiff bristle brush . Rinse thoroughly at a sink. Shake excess water out and pat partially dry with paper toweling or a clean cloth towel. Set aside to air dry. Once the stones are dry (after 24 hours), oil the shafts with Food Machine Oil. Reassemble.
- Page 9 User Manual User Manual Fold a cloth wipe that has been submerged in fresh detergent solution and work it between the ring guard and the knife, starting at the base of the ring guard. Carefully work the cloth around the knife, cleaning the edge of the ring guard and edge of the gauge plate.
- Page 10 User Manual User Manual 1. Place the slice deflector carefully in its place as shown in the picture. Replace the center plate as shown in the picture making sure the section joint is in its proper place; Insert the tension rod for locking and screw completely. Reassemble carefully and do not strip the rod threads or center plate bushing threads Insert the entire group on the...
-
Page 11: Gasket Inspection
User Manual User Manual Reassembling the meat pusher 1. Insert the rod in the meat pusher and in the hole of the extension; 2. Tighten the locking knob. GASKET INSPECTION Gasket between Gasket between the tray and the the tray and the extension extension Protection on the... -
Page 12: Sharpening Instructions
User Manual User Manual User Manual SHARPENING INSTRUCTIONS CAUTION THE KNIFE SHOULD BE SHARPENED WHEN THE SLICE QUALITY THE PRODUCT IS NOT ACCEPTABLE DO NOT SHARPEN A KNIFE THAT IS NOT CLEAN. YOU WILL DAMAGE THE SHARPENING STONES AND BE UNABLE TO SHARPEN THE KNIFE 1. -
Page 13: Electrical Connection Information
User Manual Electrical Connection Information Electrical Connection Information Model Description Volts /HZ Watts Plug Type 177SL612A Avantco Auto/Manual Slicer 12” 120 / 60 1/2 HP 550 W NEMA 5-15P 177SL713A Avantco Auto/Manual Slicer 13” 120 / 60 3/4 HP 630 W... - Page 14 User Manual User Manual Exploded Parts Diagrams - SL612A SL713A Exploded Parts Diagrams - SL612A, SL713A www.AvantcoEquipment.com www.AvantcoEquipment.com...
- Page 15 User Manual Exploded Parts Legend SL612A SL6713A Quantity Part Name Replacement Part # Replacement Part # Needed Movable Clapboard 177PSLA5 177P7135 Blade Cover 177PSLA6 177P7136 Director 177PSLA8 177PSLA8 Motor 177PSLA9 177P7139 Carriage Knob 177PSLA11 177PSLA11 Carriage Push Handle 177PSLA12 177PSLA12 Metal Feet 177PSLA13 177PSLA13...
- Page 16 Limited Service Warranty Avantco Equipment warrants its equipment to be free from defects in material and workmanship for a period of 1 year when purchased from an authorized dealer. This is the sole and exclusive warranty made by Avantco covering your Avantco brand equipment.
